| Specification | Details |
|---|---|
| Processor | ESP32 dual-core |
| Data Output | 40 true parallel ports |
| Max Pixels | 16,000 (up to 400 per port) |
| Refresh | 40+ FPS on large displays |
| Supported ICs | WS2812B (GRB), WS2811 (RGB), UCS1903 (RGB) |
| Operating Voltage | 5V DC (heavy-duty SMPS required) |
| Control | WiFi (browser), SD card |
| Animation Files | .out |
| Wiring | S-Type & Z-Type |
| Default WiFi / Password | W40_PRO_XXXX / 12341234 |
| Control Page | http://10.10.10.10 |
| Warranty | 6 months* (manufacturing defects only) |

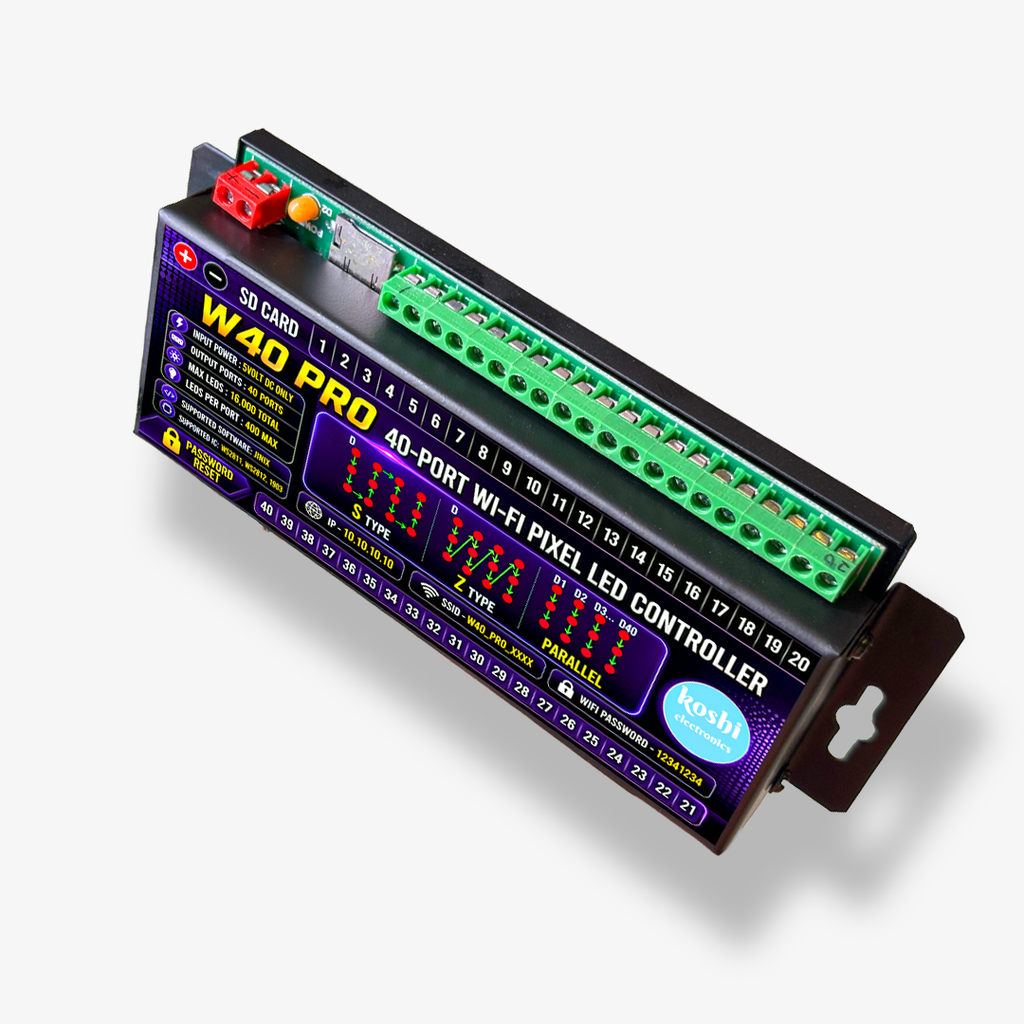

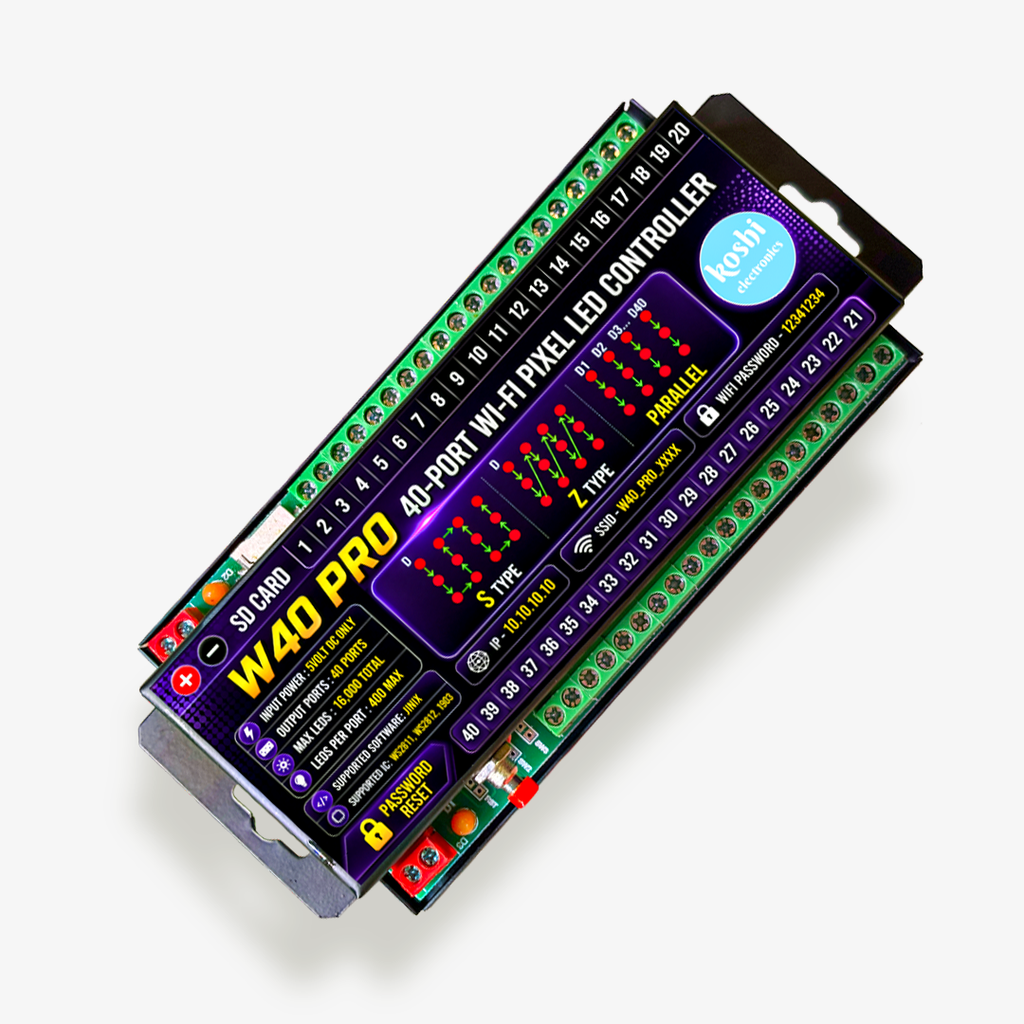

The Koshi Electronics W40 PRO is the flagship 40-port heavy-duty Wi-Fi pixel LED controller. Built on a fast ESP32 dual-core processor, its true parallel architecture drives data out of all 40 ports simultaneously β running large displays up to 16,000 pixels with smooth 24-bit HD animation at a high frame-rate (FPS), no flicker or lag. Controlled fully from your phone or laptop browser β no PC and no app required. Built for mega HD animation walls, building facades, malls and grand stage / festival displays.
π Download the full W40 PRO User Manual (PDF) β complete setup, IC type, S/Z wiring, effects & troubleshooting.
π¬ Full Video Tutorial β Controller Kaise Use Kare
Is video mein poora detail mein sikhaya hai β W40 PRO ko kaise connect karein, WiFi setup, IC type, S/Z wiring, matrix size, HD video & text kaise chalayein. Step by step Hindi mein:
Key Features
- 40 true parallel ports β all update simultaneously for smooth HD animation, fast text and flawless playback.
- Up to 16,000 pixels (40 ports Γ up to 400 LEDs per port).
- 24-bit colour animation at the highest frame-rate in the range (ESP32 dual-core, no dropped frames).
- Multiple IC support β WS2812B (GRB), WS2811 (RGB), UCS1903 (RGB), correct colour order per chip.
- S-Type & Z-Type wiring β for both text and animation.
- 100% phone controlled β built-in Wi-Fi web portal, no app to install.
- Live multi-language text β Hindi, English, Urdu, Arabic, Marathi, Tamil and more.
- Background effects & borders β Rain, Snow, Fire, plus 20+ animated border styles.
-
microSD
.outanimations (made with Jinix software) with Text + Animation auto mode.
Specifications
| Specification | Detail |
|---|---|
| Processor | ESP32 dual-core |
| Data Output | 40 true parallel ports |
| Max Pixels | 16,000 (up to 400 per port) |
| Animation | 24-bit colour (.out via Jinix software) |
| Refresh | Highest FPS in range (depends on LED load) |
| Supported ICs | WS2812B (GRB), WS2811 (RGB), UCS1903 (RGB) |
| Operating Voltage | 5V DC (heavy-duty SMPS required) |
| Control | WiFi (browser), SD card |
| Animation Files | .out (Jinix) |
| Wiring | S-Type & Z-Type (selectable) |
| Default WiFi / Password | W40_PRO_XXXX / 12341234 |
| Control Page | http://10.10.10.10 |
| Warranty | 6 months* (manufacturing defects only) |
Compare the Range β Pick by Project Size
Every model plays smooth 24-bit colour animation and runs the same easy phone-browser control. The difference is scale and frame-rate (FPS):
| Feature | W1000 PRO | W8000 PRO | W16000 PRO | W40 PRO (this product) |
|---|---|---|---|---|
| Ports | 2 | 8 | 16 | 40 (true parallel) |
| Max Pixels | 2,048 | 8,192 | 16,000 | 16,000 |
| 24-bit HD Animation | β | β | β | β |
| Animation FPS | Good | High | Higher | Highest |
| Best For | Thoran, building | Big Thoran / building | Very big building | Mega HD animation walls |
*All four models play 24-bit colour animations β only the frame-rate (FPS) differs: lowest on the W1000 PRO, highest on the W40 PRO. Actual FPS also depends on the LED load (pixels per port).
π Why W40 PRO? 40 true-parallel data lines spread your pixels across more separate runs β the highest FPS and smoothest 24-bit HD animation for the biggest, most spread-out installations. Need fewer ports? See the W16000 / W8000 / W1000 PRO.
Best For
- Mega matrix screens & HD animation walls
- Large commercial building outlines & mall lighting
- Grand wedding arches & premium stage backdrops
- High-end DJ lighting & nightclub visuals
- Big Thoran & festival decoration setups
How It Works
- Connect a heavy-duty 5V SMPS and wire your pixel strings across the 40 output ports.
- Power on and connect your phone to the WiFi network W40_PRO_XXXX (password 12341234).
- Open http://10.10.10.10 in your browser (it usually opens automatically).
- Select your matrix folder, IC type, LEDs-per-port and connection type (S/Z).
- Type your text and press Send, or load
.outanimations from the SD card.
Complete Your Setup β Ready-Made Connection Patta
Wiring a 40-port setup by hand takes hours. Save that time with our ready-made Pixel LED Connection Patta β a connection belt with original branded 1.5mm pure copper and ready ports at a 1-feet gap. Just plug your pixel chains in. The 40-port patta pairs perfectly with this 40-port W40 PRO controller.
- 𧡠Branded 1.5mm full-copper β stable power & data, minimal voltage drop
- π 20-port (20 ft) & 40-port (40 ft) options β match your controller
- β‘ Power-injection points keep brightness full across the whole run
- π§Ά Heavy sewing on cotton patta β strong & durable, ready to use
Power Supply (SMPS) β How Many You Need
Big pixel displays need heavy-duty 5V 80A (400W) SMPS. As a rule of thumb, use about one 5V 80A SMPS per ~1,000 LEDs, connected at the power-injection points so brightness stays full across the entire display.
| Setup / Size | Approx LEDs | SMPS Needed |
|---|---|---|
| 50X40 / 100X20 | ~2,000 | 2 Γ 5V 80A |
| 100X40 | ~4,000 | 4 Γ 5V 80A |
Frequently Asked Questions
How many pixels does it support?
Up to 16,000 pixels β 40 ports with up to 400 LEDs per port. The control panel warns you if a layout exceeds the limits.
What does "true parallel" mean?
All 40 ports send data at the same time, so even very large displays play 24-bit animation at a high frame-rate β smooth, with no flicker.
How much power supply do I need?
Use about one 5V 80A (400W) SMPS per ~1,000 LEDs β e.g. 2 for a ~2,000-LED setup (50X40, 100X20) and 4 for a ~4,000-LED setup (100X40). See the Power Supply guide above.
How do I create my own animations?
Animations (.out files) are created on a PC using Jinix software, then exported as .out and copied onto the SD card. Only Jinix .out files are supported.
Can I play different matrix sizes from one SD card?
Yes. For each size, create a folder on the SD card named Height Γ Width + S/Z β for example 50X40S β and place that size's .out files inside it. Select the folder in Matrix Layout; you can keep as many size folders as you like on one card.
Which LED ICs are supported?
WS2812B (GRB) and WS2811 / UCS1903 (RGB). Select the IC type that matches your physical strip.
Colours look wrong (red shows as green)?
You've selected the wrong IC type β switch between WS2812 (GRB) and WS2811 / UCS1903 (RGB).
The display is mirrored or scrambled?
Switch the Connection Type between S-Type and Z-Type.
How is it different from the W16000 PRO?
Both drive up to 16,000 pixels and play 24-bit animation, but the W40 PRO has 40 true-parallel ports (vs 16) β so it runs at a higher frame-rate (FPS) and spreads pixels across far more separate data runs, ideal for the most demanding, widely-spread installs.
I forgot my WiFi password.
With the controller on, hold the BOOT/RESET button for about 8 seconds β the panel flashes red and the password resets to 12341234.
Warranty
6-month warranty* on manufacturing defects.
*Warranty covers manufacturing defects only. Not covered: physical damage, water damage, wrong SMPS connection (reverse +/β polarity), connecting to 220V AC, or the controller being exposed to rain. Protect the controller and SMPS from rain (use a rainproof box outdoors).
