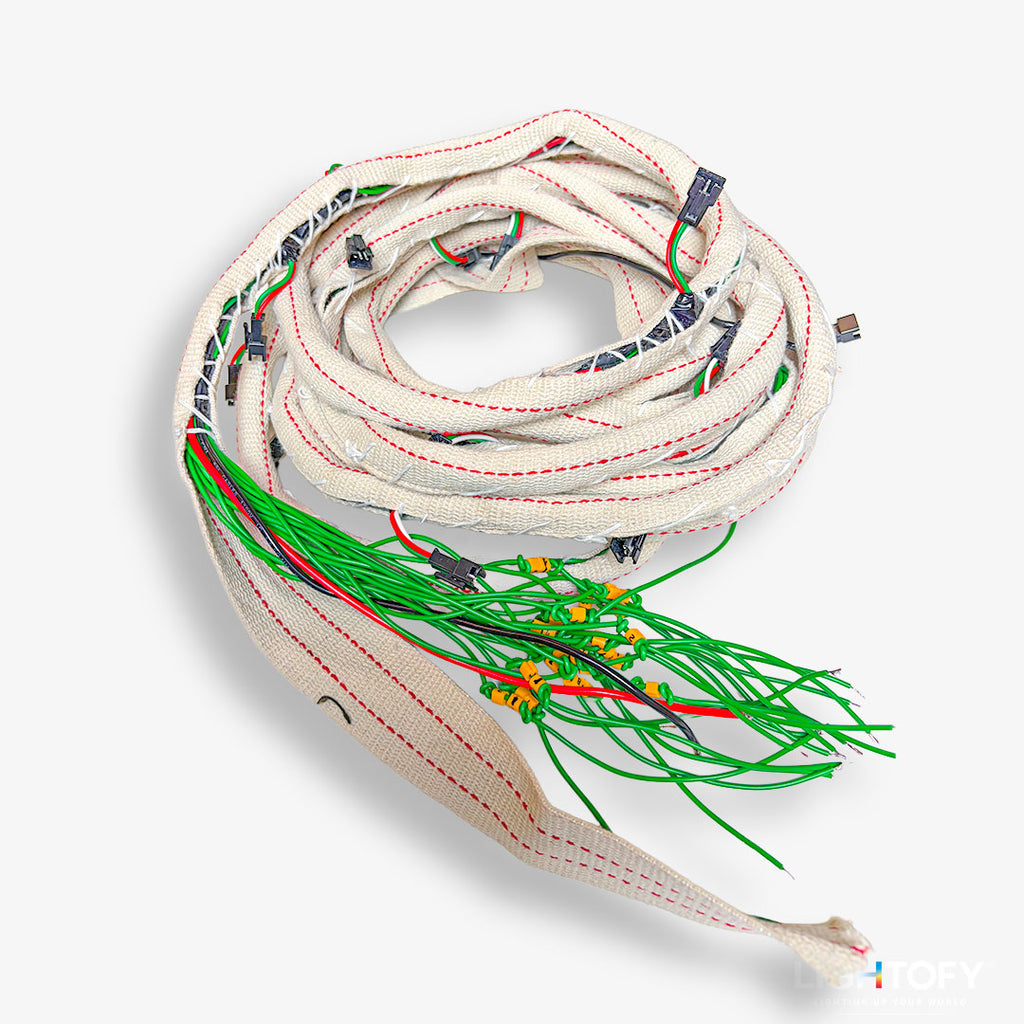

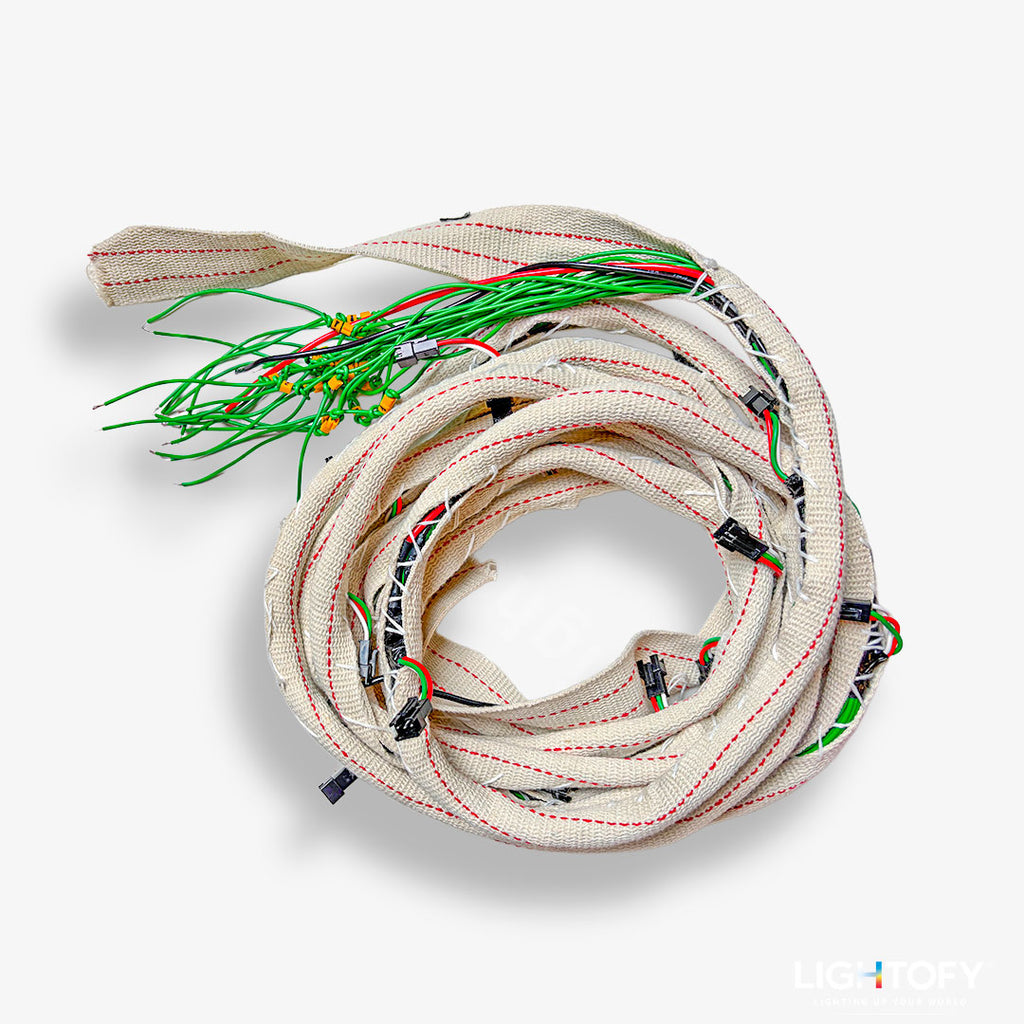

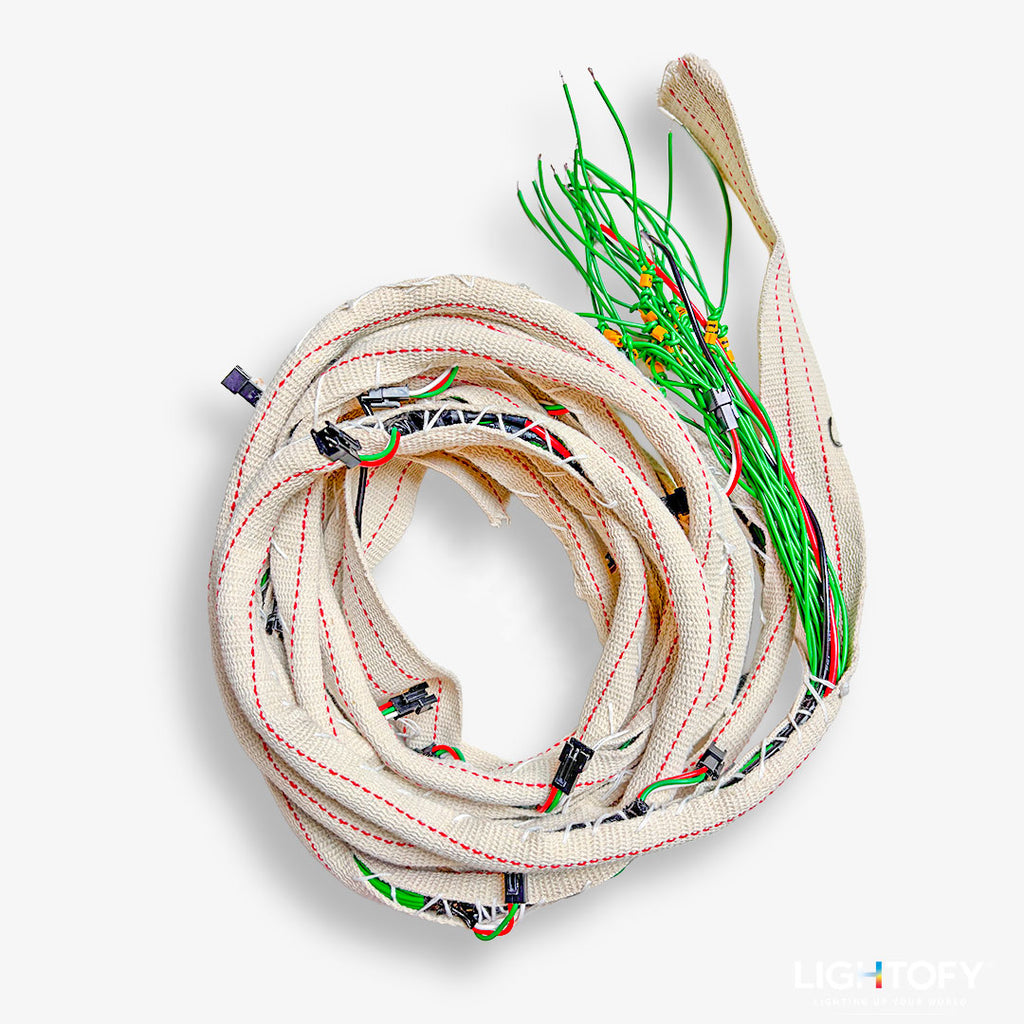

Ready-made pixel LED connection patta for parallel controller setups, made with original branded 1.5mm pure copper wire and heavy sewing on cotton patta, with a 1-feet gap between points. Available in 20 Feet (20 Port) and 40 Feet (40 Port). The 40-port has 2 power-injection points (start & center); on the 20-port you can add an SMPS at the end. Recommended SMPS: 5V 80A.
| Specification | Details |
|---|---|
| Wire | Original branded 1.5mm pure copper |
| Base Material | Cotton patta, heavy sewing |
| Gap Between Points | 1 Feet |
| Variants | 20 Feet (20 Port) / 40 Feet (40 Port) |
| Power Injection | 40-port: start & center | 20-port: add at end |
| Recommended SMPS | 5V 80A (20 Feet type) |
| Application | Parallel controller setups, building, backdrop, thoran |
๐ Pixel LED Connection Patta (Parallel Controller)
Ready-made connection patta for parallel pixel LED setups โ original branded 1.5mm pure copper wire, heavy sewing on cotton patta, with 1 feet gap between points. Available in 20 Port (20 Feet) and 40 Port (40 Feet).
๐งต Branded 1.5mm Copper
๐ 1 Feet Gap
๐ 20 & 40 Port
โก Power Injection Ready
๐งถ Heavy Sewing
20 Port vs 40 Port โ Which One?
Key Features
๐งต Original branded 1.5mm pure copper: genuine full-copper core for strong, stable power & data flow.
๐ 20 & 40 port options: ready ports at a 1-feet gap โ just plug your pixel chains in.

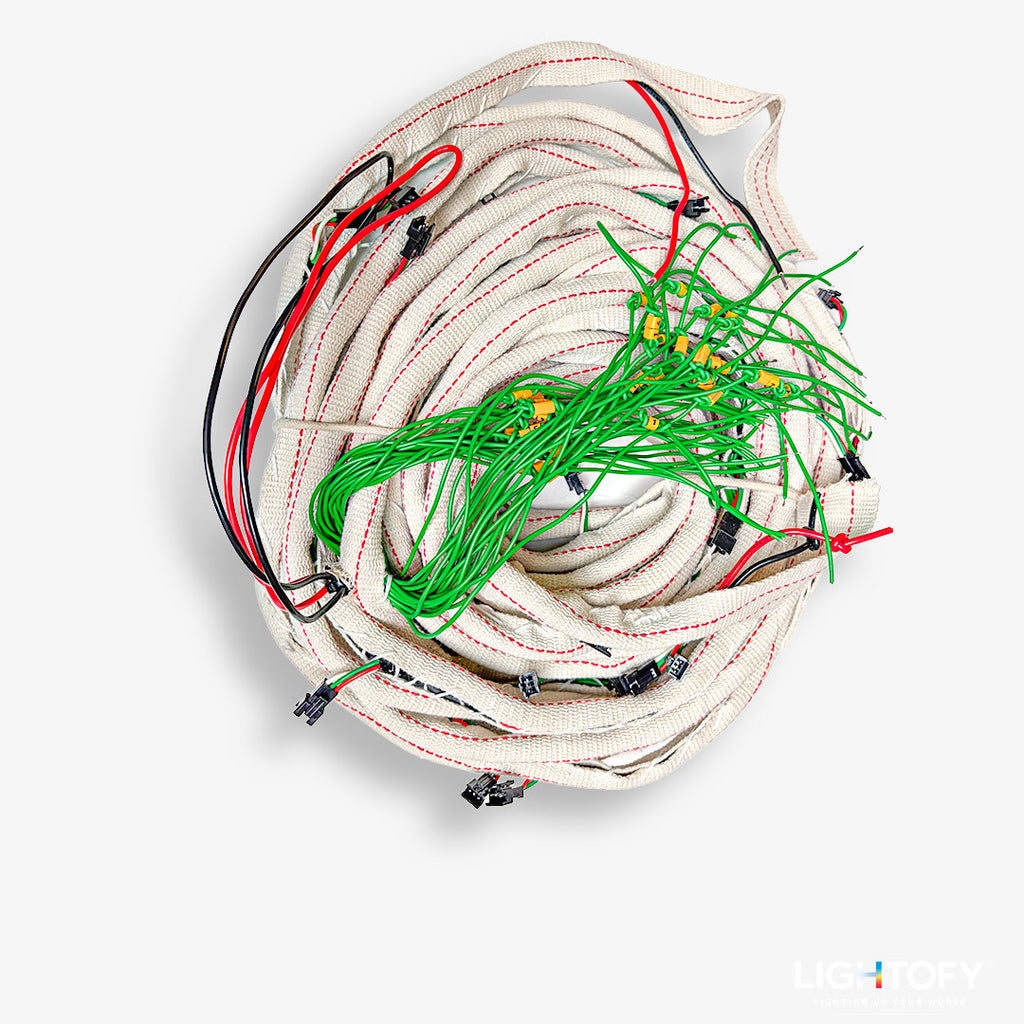

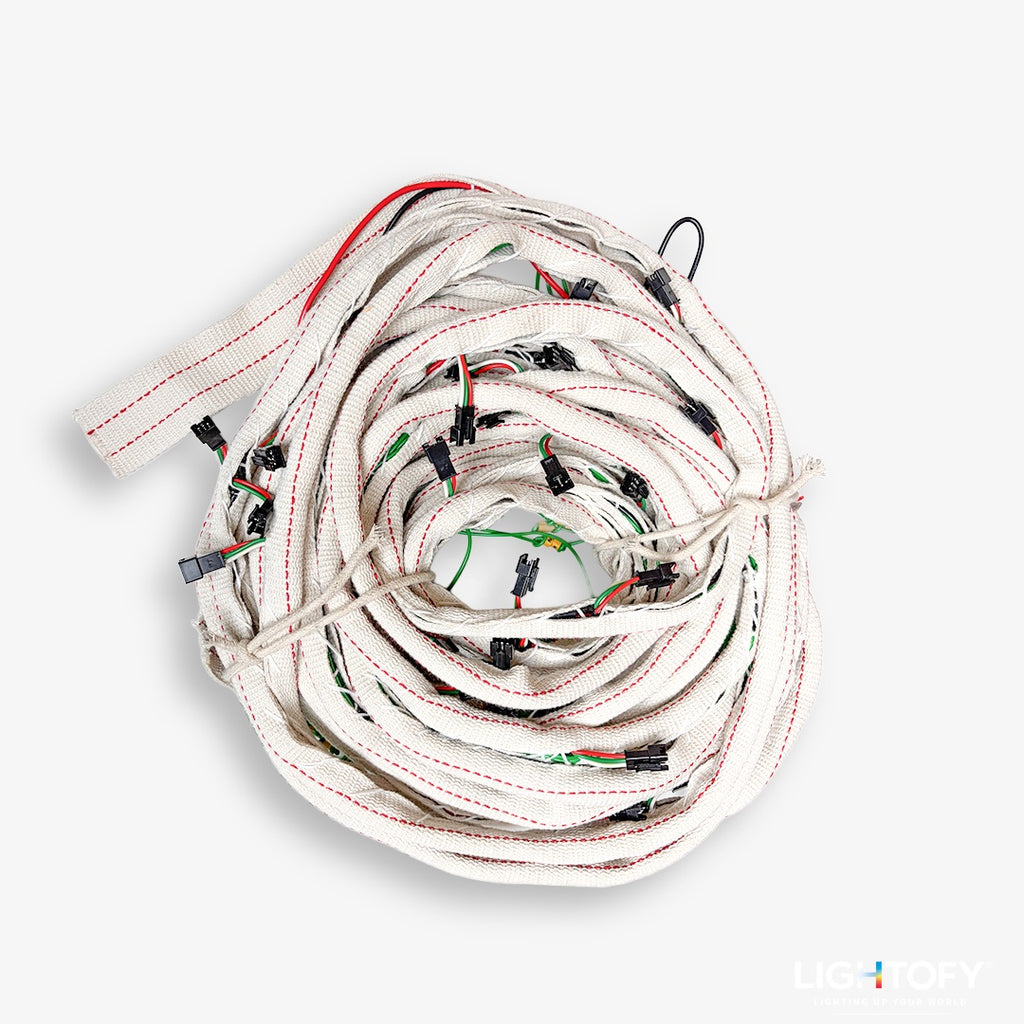

โก Power injection ready: 40-port has 2 injection points (start & center) to keep full brightness across the run.
๐งถ Heavy sewing on cotton patta: strong, durable build made to last.
๐๏ธ Made for parallel controllers: perfect base for 20/40-port parallel controller setups.
Why Branded 1.5mm Copper?
Our patta uses original branded 1.5mm wire with genuine full-copper conductor โ it carries current efficiently with minimal voltage drop, so your setup stays bright end to end. On a 20-feet run driving around 1000 LEDs, this branded 1.5mm copper is the right, reliable choice. Many cheap "thicker" wires simply add extra PVC insulation around a thin conductor โ the number looks bigger, but the real copper (and the conductivity) is less. With us, you pay for copper, not plastic. ๐ช
SMPS (Power Supply) Guide
โก Recommended SMPS (20 Feet type): 5V 80A
๐ Heavy load (approx 100 LEDs per line):

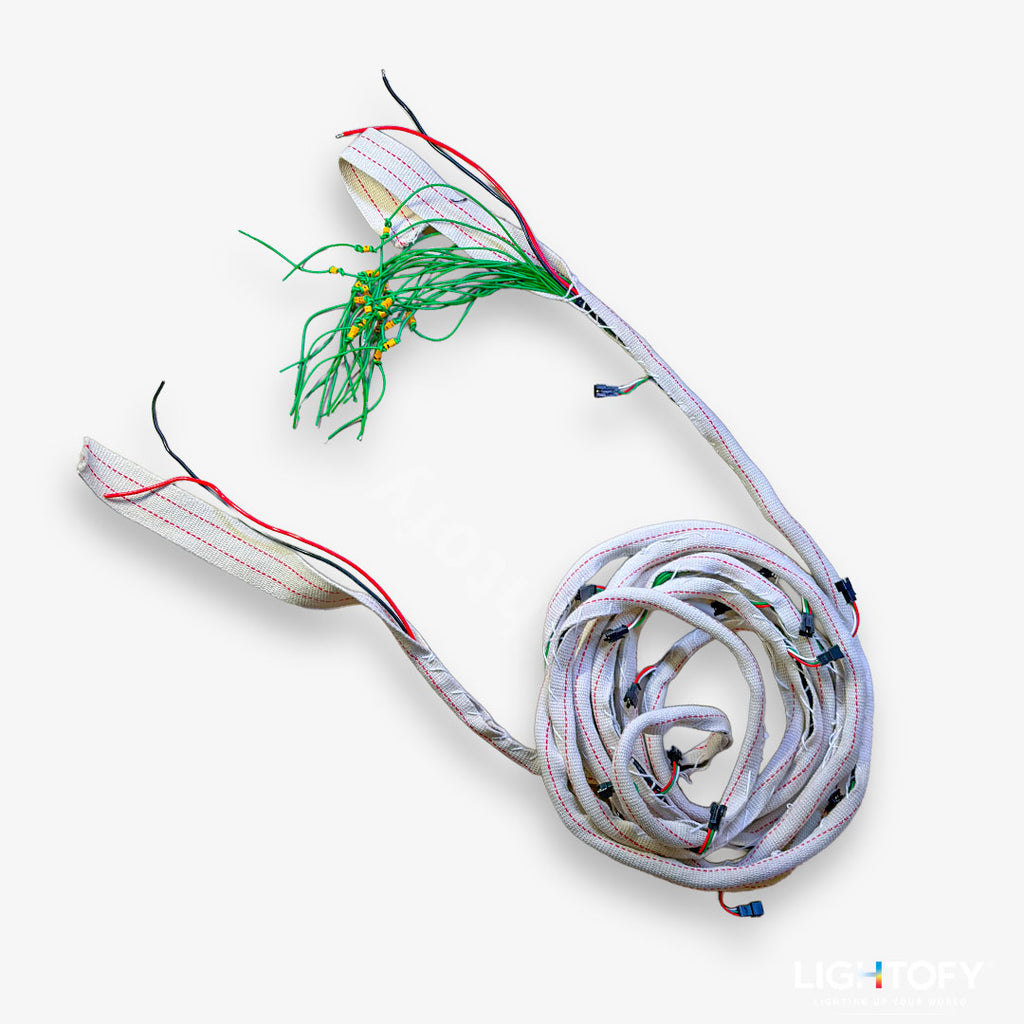

โข 20 Feet type โ use 2 SMPS โ one at the start, one at the end
โข 40 Feet type โ use 4 SMPS across the run
๐ก Connect power at the injection points to avoid voltage drop and keep brightness full across the whole setup.
๐ Heavy load (approx 100 LEDs per line):
โข 20 Feet type โ use 2 SMPS โ one at the start, one at the end
โข 40 Feet type โ use 4 SMPS across the run
๐ก Connect power at the injection points to avoid voltage drop and keep brightness full across the whole setup.
Recommended Controllers
๐ High-Speed WiFi (low budget): MultiLanguage Pixel LED Parallel WiFi Controller
๐พ SD Card type (20 & 40 port): Koshi W40 PRO Controller
๐ Without SD card (20 port): 20 Port Jinix Parallel Controller
Specifications
Best For
๐ข Building decoration
๐ค Stage backdrops
๐ช Pandal & thoran setups
๐ Wedding & event decoration
Frequently Asked Questions
Which controller works with this patta?
Any parallel pixel LED controller โ WiFi (MultiLanguage), SD card (W40 PRO), or Jinix 20-port. Match the port count to the patta.
Any parallel pixel LED controller โ WiFi (MultiLanguage), SD card (W40 PRO), or Jinix 20-port. Match the port count to the patta.
How many SMPS do I need?
5V 80A is recommended for the 20-feet type. For heavy loads (~100 LEDs per line), use 2 SMPS on the 20-feet (start & end) and 4 on the 40-feet.
5V 80A is recommended for the 20-feet type. For heavy loads (~100 LEDs per line), use 2 SMPS on the 20-feet (start & end) and 4 on the 40-feet.
Why 1.5mm and not a thicker wire?
This is original branded full-copper 1.5mm โ it conducts better than cheaper "thick" wires that add extra PVC around a thin conductor. For 20 feet / ~1000 LEDs it is the right choice.
This is original branded full-copper 1.5mm โ it conducts better than cheaper "thick" wires that add extra PVC around a thin conductor. For 20 feet / ~1000 LEDs it is the right choice.
What is the gap between ports?

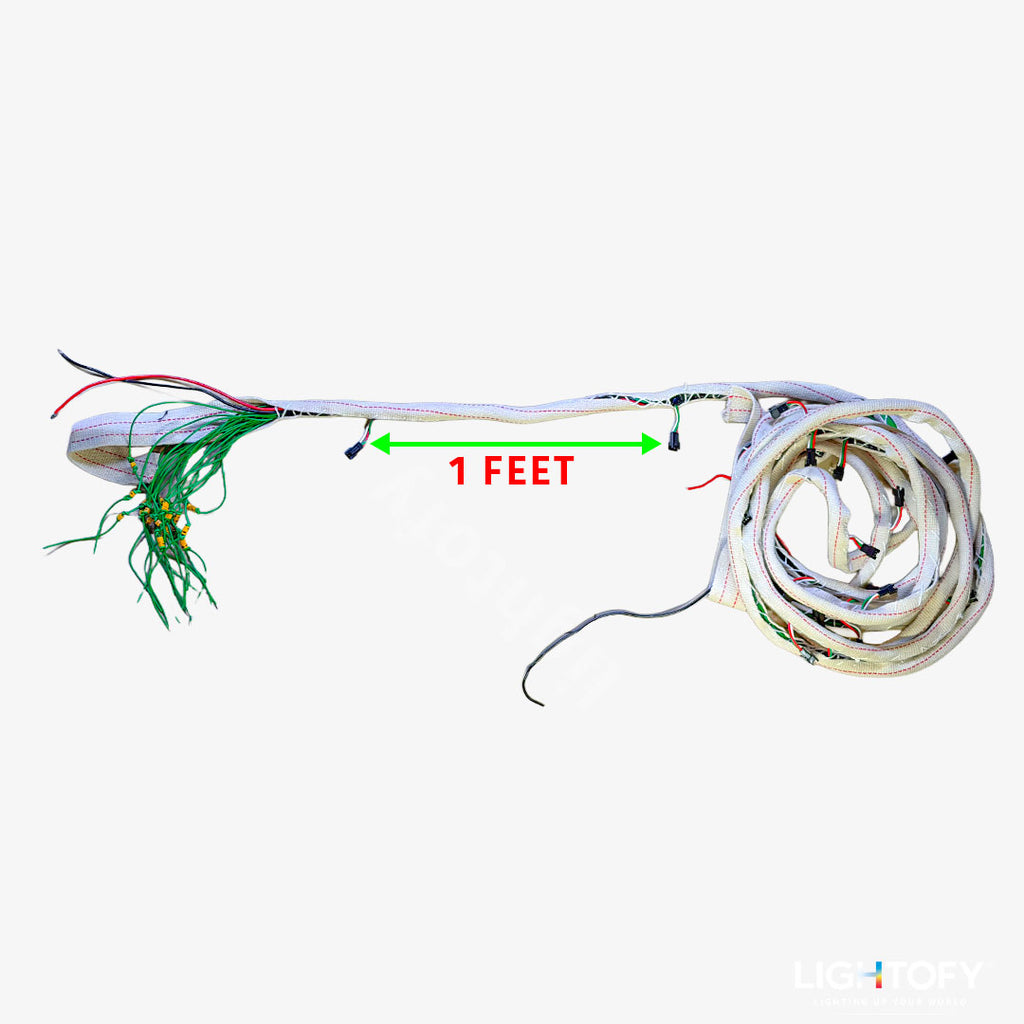

1 feet between two points โ so 20 feet gives 20 ports and 40 feet gives 40 ports.
1 feet between two points โ so 20 feet gives 20 ports and 40 feet gives 40 ports.
Which controller works with this patta?
Any parallel pixel LED controller โ WiFi (MultiLanguage), SD card (W40 PRO), or Jinix 20-port. Match the port count to the patta.
How many SMPS do I need?
5V 80A is recommended for the 20-feet type. For heavy loads (about 100 LEDs per line), use 2 SMPS on the 20-feet (start & end) and 4 on the 40-feet.
Why 1.5mm and not a thicker wire?
This is original branded full-copper 1.5mm โ it conducts better than cheaper thick wires that add extra PVC around a thin conductor. For 20 feet / around 1000 LEDs it is the right choice.
What is the gap between ports?
1 feet between two points โ so 20 feet gives 20 ports and 40 feet gives 40 ports.
