| Specification | Details |
|---|---|
| Output Voltage | 5V DC (constant) |
| Available Amperage | 40A / 70A / 80A |
| Max Power | 200W / 350W / 400W |
| Input Voltage | 220V AC (Indian standard) |
| Enclosure | Rainproof (outdoor safe) |
| Protection | Short circuit protection |
| Compatible LEDs | WS2812, WS2811, 1903 IC pixel LEDs |
| Compatible Controllers | All Koshi Electronics controllers |
| Output Terminals | +5V, GND screw terminals |
| Operation | Continuous 24/7 heavy duty |
| Brand | Koshi Electronics |

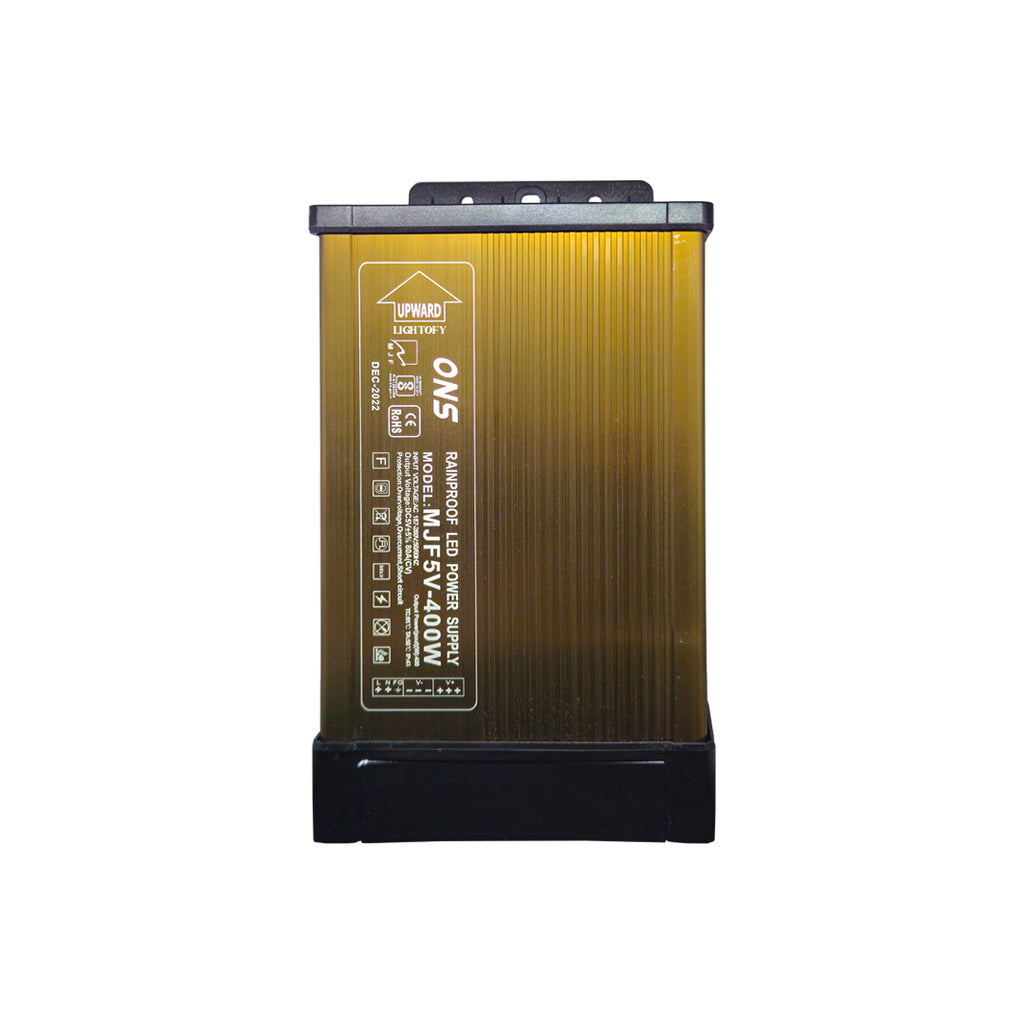

5 VOLT RAINPROOF HEAVY DUTY SMPS — Outdoor Pixel LED Power Supply
Koshi Electronics ka 5V Rainproof Heavy Duty SMPS ek professional-grade outdoor power supply hai jo high-density pixel LED strips aur addressable LED setups ke liye design kiya gaya hai. Ye rainproof enclosure ke saath aata hai — perfect for outdoor Thoran setups, building decorations, festival lighting, aur year-round permanent installations.
Key Features
- Constant DC 5V Output — stable voltage even under full LED load
- Heavy Duty Build — designed for continuous 24/7 operation
- Rainproof Enclosure — safe for outdoor and semi-outdoor use
- Short Circuit Protection — automatic cutoff prevents LED and controller damage
- Available in 40A / 70A / 80A — choose based on your pixel LED count
- Compatible with WS2812, WS2811, 1903 IC pixel LEDs, and all Koshi Controllers
How to Choose the Right Amperage
| Variant | Max Power | Approx Pixel Count | Recommended Use |
|---|---|---|---|
| 40 AMP | 200W | Up to ~600 pixels | Medium Thoran, gate decoration |
| 70 AMP | 350W | Up to ~800pixels | Large building decoration, rooftop |
| 80 AMP | 400W | Up to ~1000pixels | Full outdoor festival setup |
Note: Actual pixel count depends on LED density and animation effects. Always calculate at 60mA per WS2812 pixel at max brightness.
User Manual / Wiring Guide
Connect the +5V output terminal to your pixel LED power rail. Connect GND to LED GND and controller GND (common ground). For setups above 1,000 pixels, inject power from both ends of the LED strip. Always use appropriate wire gauge (minimum 2.5mm² for 40A, 4mm² for 70A/80A).
