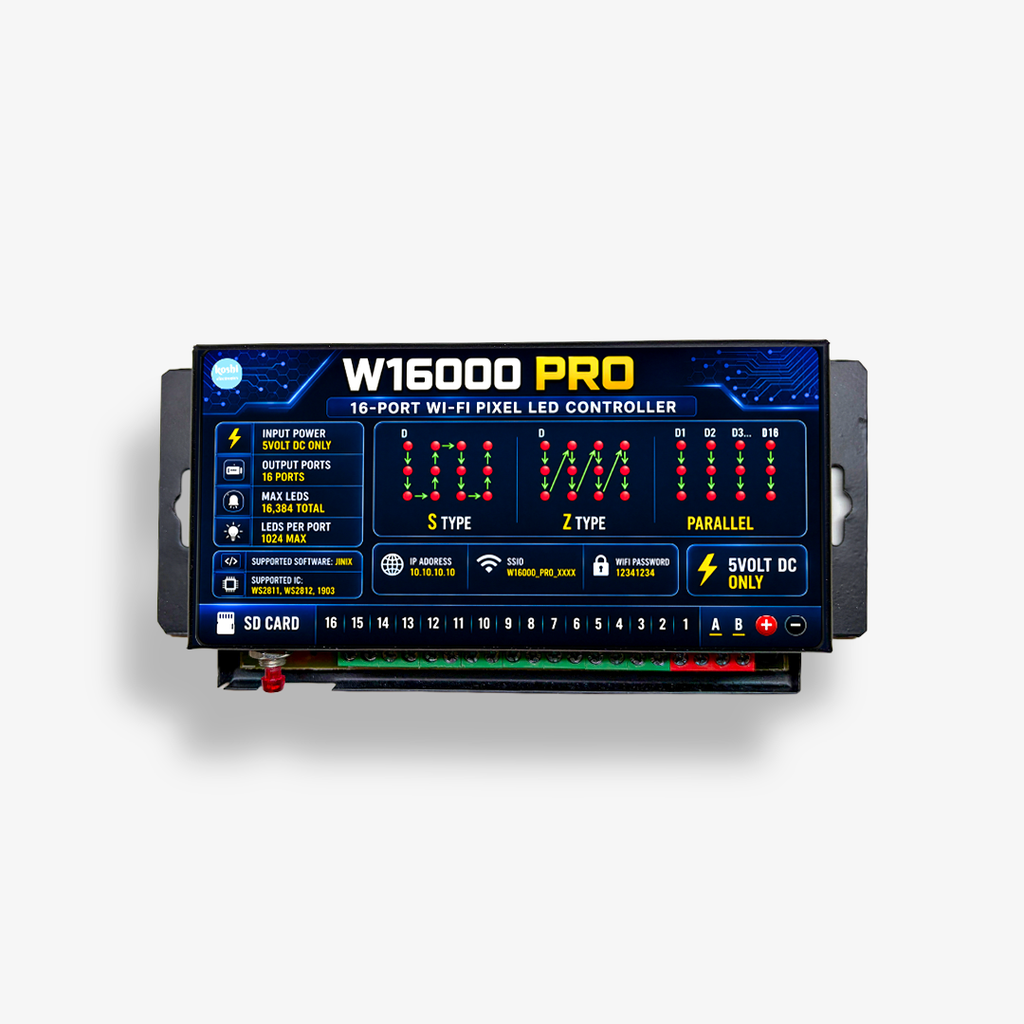

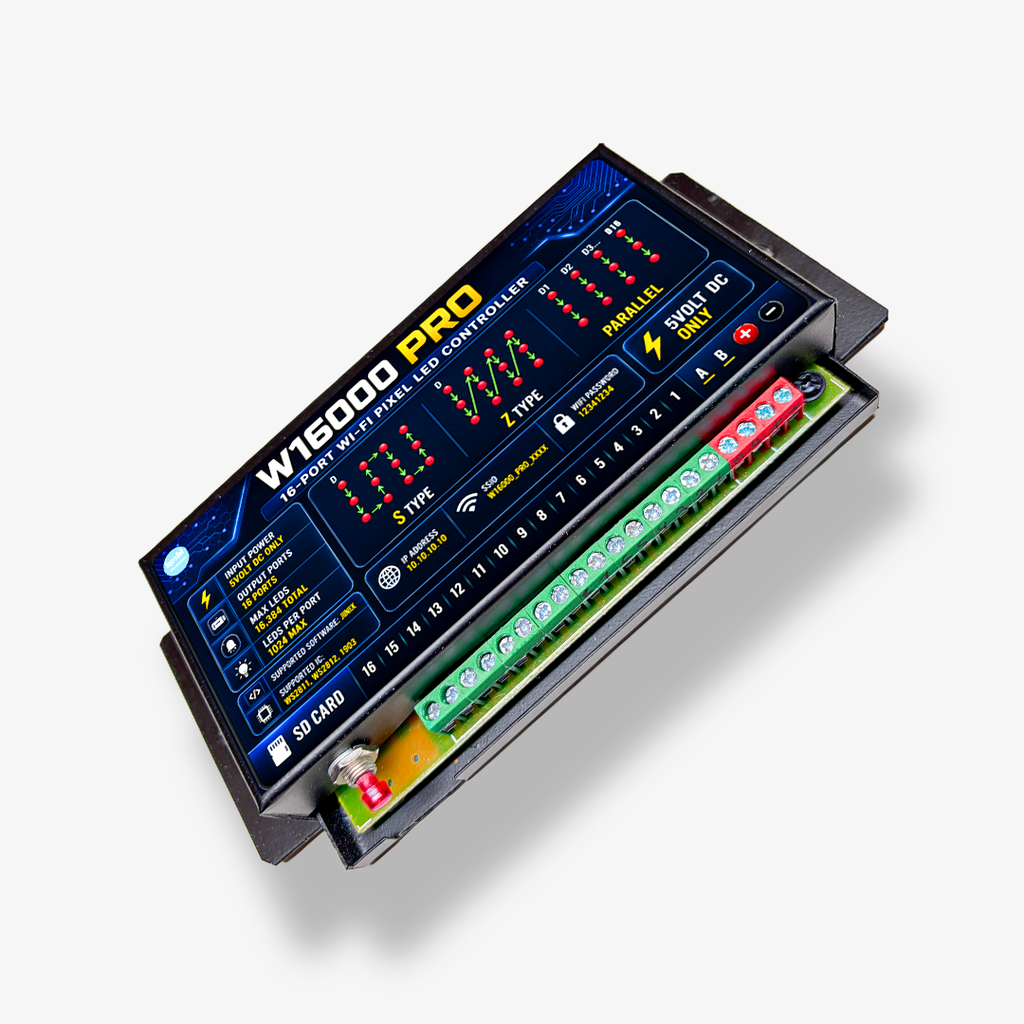

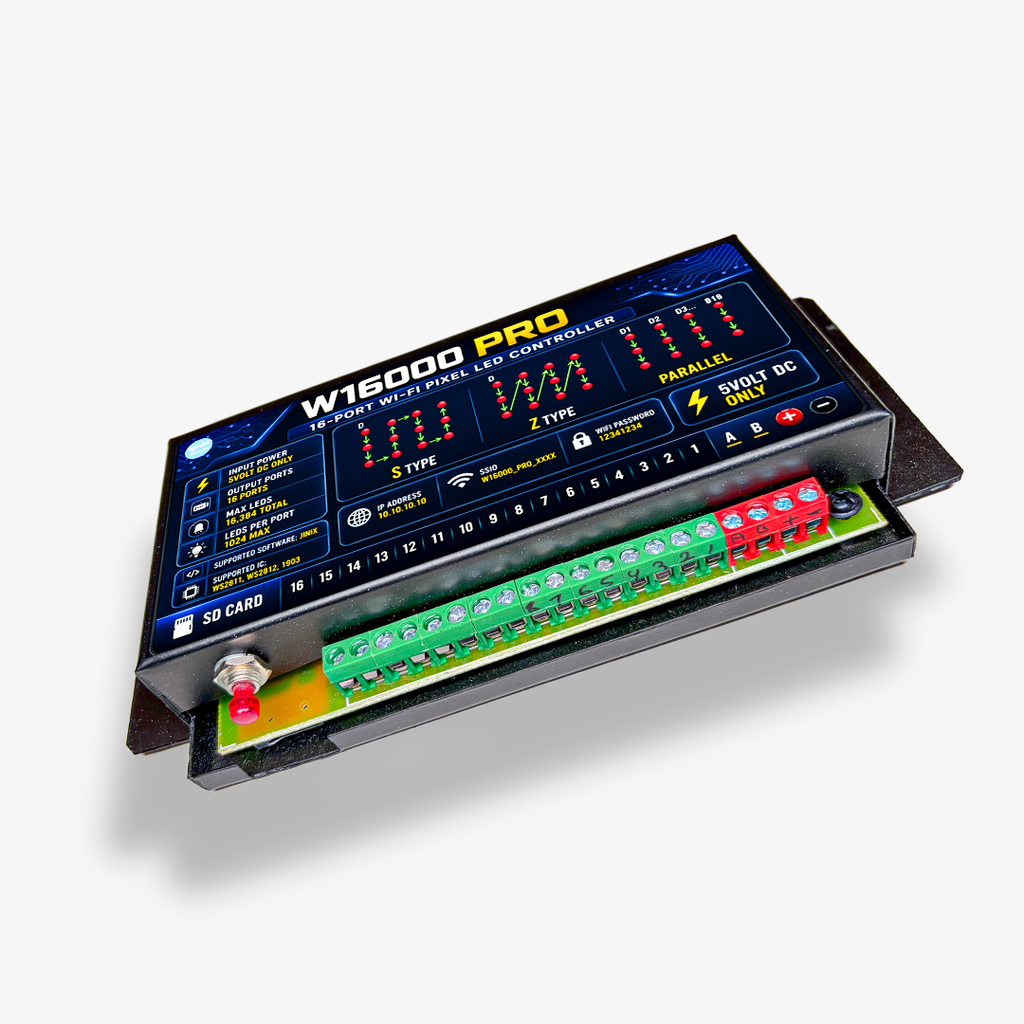

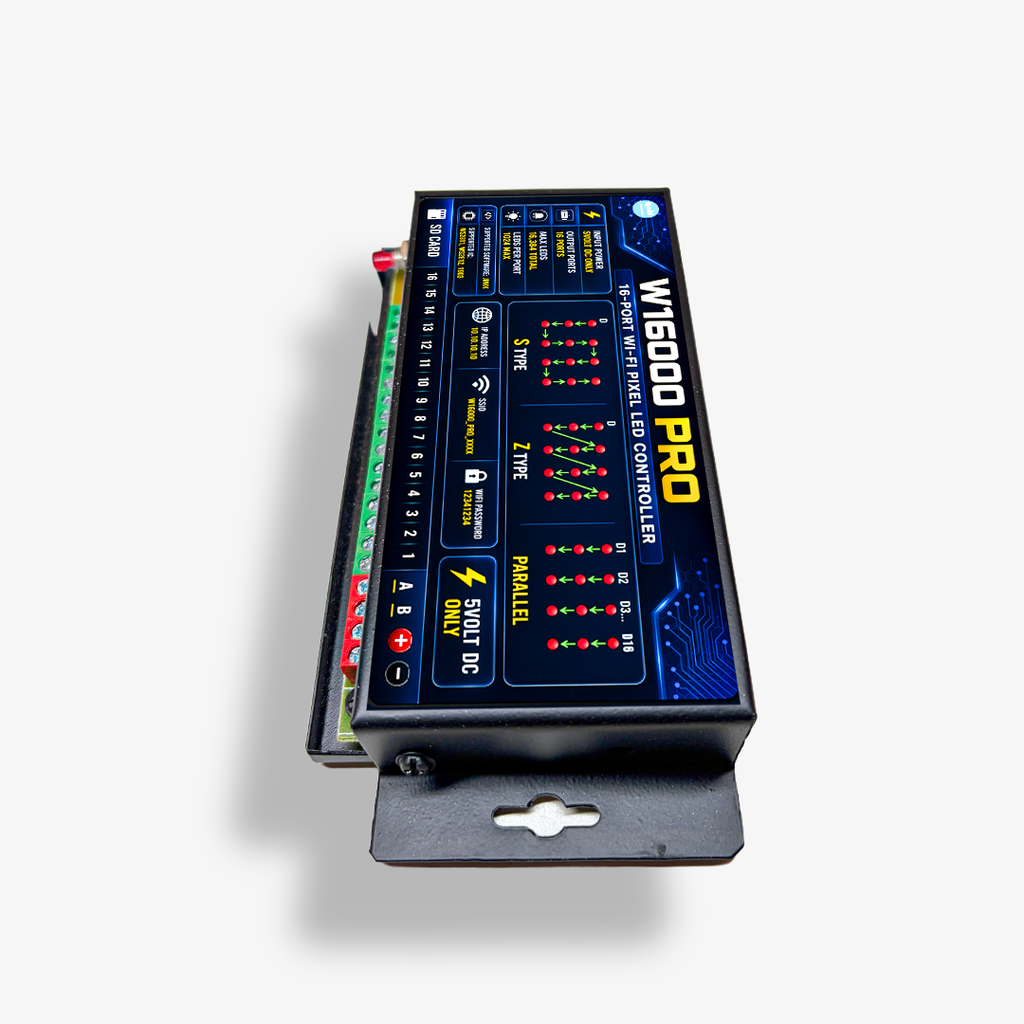

The Koshi Electronics W16000 PRO WiFi Pixel LED Controller is a professional 16-port controller for large-scale pixel displays, driving up to 16,000 pixels (16,384 max). The big brother of the W8000 PRO, it combines WiFi and SD-card control with smooth live multi-language scrolling text, full-colour animations and built-in effects โ built for shop signs, name boards, building facades and large festive displays. No PC and no app required โ everything runs from your phone or laptop browser.
๐ Download the full W16000 PRO User Manual (PDF) โ complete setup, IC type, S/Z wiring, effects & troubleshooting.
Choose Your Size
Select your matrix size above โ the ready-made SD-card animation program for that size is included, so it plugs in and plays straight away. Need more sizes on the same card? Add them with the size builder (see Add-on Program Sizes below).
Key Features
- 16 independent ports: up to 16,000 pixels (16,384 max) split across outputs for large displays.
- Multiple IC support: WS2812B / WS2815 (GRB) and WS2811 / UCS1903 (RGB), with automatic colour order โ just pick your chip.
- WiFi + SD card: play SD-card animations while sending live text over WiFi.
- Multiple matrix folders on one SD card: keep programs for different matrix sizes on a single card and choose which one to play from your phone.
- Smooth live scrolling text: messages display instantly with no app needed.
- Background effects & borders: Rain, Snow and Fire, plus 20+ animated border styles.
- Multi-language: Hindi, English, Urdu, Arabic, Marathi, Bengali, Tamil, Telugu, Kannada and more.
- S-Type & Z-Type matrix support โ applied to both text and animation.
- Consistent wiring: text and animation use the same equal port layout, so one wiring works for both.
- Settings saved automatically and restored after power-off; factory reset button for quick recovery.
๐ Multiple Matrix Folders โ One SD Card, Many Sizes
Older controllers held a program for only one layout per card โ to run a different display size, you had to rebuild the whole card. The W16000 PRO removes that limitation.
.out files inside it. Then select the folder you need from the phone control page and it plays instantly โ no removing the card, swapping files or reprogramming.
Who benefits most?
- ๐ข Professional installers โ every building and site has a different layout. One card works everywhere.
- ๐ช Event & decoration companies โ every client's display is a different size. No card swapping.
- ๐งช Testing โ try different sizes from a single card and pick the one that looks best.
๐พ Add-on Program Sizes
Every W16000 PRO ships with the program for your selected size included. Need programs for more sizes? Use the size builder above the Add to Cart button:
- โน200 per additional size โ choose any listed size, or enter your own custom height ร width (up to 16,000 LEDs)
- Up to 10 add-on sizes โ all loaded on the same SD card, ready to switch from your phone
Specifications
| Specification | Detail |
|---|---|
| Maximum Pixels | 16,000 recommended (16,384 max) across 16 ports |
| Ports | 16 independent outputs |
| Max Pixels per Port | 1024 |
| Operating Voltage | 5V DC |
| Controller | ESP32 (WROOM-32E) |
| Supported ICs | WS2812B, WS2815, WS2811, UCS1903 |
| Colour Order | Automatic โ GRB (WS2812/2815), RGB (WS2811/UCS1903) |
| Control Methods | WiFi (browser), SD card |
| Animation Files | .out โ made with free Jinix (Jinx!) software |
| SD Card Folders | Multiple matrix folders (e.g. 50X40S) โ select from the phone control page |
| Add-on Programs | 1 size included ยท โน200 per additional size (listed or custom) ยท up to 10 |
| Matrix Types | S-Type (zig-zag) & Z-Type โ text + animation |
| Storage | microSD card (FAT32) |
| Default WiFi / Password | W16000_PRO_XXXX / 12341234 |
| Control Page | http://10.10.10.10 |
| Warranty | 6 months* (manufacturing defects only) |
Not This Size? Compare WiFi Controllers
All three run the same easy phone-browser control. Pick by how many pixels your display needs:
| Feature | W1000 PRO | W8000 PRO | W16000 PRO (this product) |
|---|---|---|---|
| Output Ports | 2 | 8 | 16 |
| Max Pixels | 2,048 | 8,192 | 16,000 |
| WiFi + Browser Control | โ | โ | โ |
| SD Card Animation | โ | โ | โ |
| Multi-IC + S/Z Wiring | โ | โ | โ |
| Best For | Name board, small thoran | Big Thoran / Building setup | Very Big Thoran / Building |
๐ Don't need 16,000 pixels? Save with a smaller controller โ same simple phone control: the W8000 PRO (8 ports / 8,192 pixels) for a big Thoran / building setup, or the W1000 PRO (2 ports / 2,048 pixels) for name boards, shop signs and smaller thoran.
Best For
- Shop signs, name boards and scrolling message displays
- Building facade and multi-storey LED displays
- Advertising boards and commercial / mall displays
- Large event and stage backdrops
- Large festive displays for Diwali, Navratri, Ganpati and weddings
How It Works
- Connect a 5V power supply and wire your pixel strips across the 16 output ports.
- Power on and connect your phone to the WiFi network W16000_PRO_XXXX (password 12341234).
- Open http://10.10.10.10 in your browser (it usually opens automatically).
- Set your matrix size, IC type and connection type (S/Z). If the card holds several matrix folders, choose the one you need here.
- Type your text and press Send, or load
.outanimations from the SD card.
Power Supply (SMPS) โ How Many You Need
Big pixel displays need heavy-duty 5V 80A (400W) SMPS. As a rule of thumb, use about one 5V 80A SMPS per ~1,000 LEDs, connected at the power-injection points so brightness stays full across the entire display.
| Approx LEDs | SMPS Needed |
|---|---|
| ~2,000 | 2 ร 5V 80A |
| ~4,000 | 4 ร 5V 80A |
| ~8,000 | 8 ร 5V 80A |
| ~16,000 (full 16-port) | 16 ร 5V 80A |
Frequently Asked Questions
Can one SD card hold programs for different matrix sizes?
Yes. Create a folder for each size named Height ร Width + S/Z (for example 50X40S), put that size's .out files inside, and select the folder from the phone control page. No need to remove the card or change files.
Can I order programs for extra sizes?
Yes. The program for your selected size is included. Add more sizes with the size builder on this page โ โน200 per size, for listed or custom sizes, up to 10.
How many pixels per port?
Up to 1024 pixels per port โ 16,384 total (16,000 recommended). The pixels are split equally across the ports for both text and animation.
How much power supply do I need?
Use about one 5V 80A (400W) SMPS per ~1,000 LEDs โ for example 2 for ~2,000 LEDs, 4 for ~4,000, 8 for ~8,000, and up to 16 for a full ~16,000-LED display. See the Power Supply guide above.
Which LED ICs are supported?
WS2812B / WS2815 (GRB) and WS2811 / UCS1903 (RGB). Just select your IC type and the correct colour order is applied automatically.
Colours look wrong (red shows as green)?
You have the wrong IC type selected โ switch between WS2812 (GRB) and WS2811 / UCS1903 (RGB) until colours are correct.
The display is mirrored or scrambled row-by-row?
Switch the Connection Type between S-Type and Z-Type. This applies to both text and animations.
Do text and animation need different wiring?
No. The controller divides the pixels equally across the ports in both modes, so a single wiring layout works for everything.
Can WiFi and SD card run together?
Yes โ play SD-card animations while sending live text over WiFi.
How is it different from the W8000 PRO?
The W16000 PRO has 16 ports (vs 8) and up to 16,000 pixels (vs 8192) โ about double the capacity, for much larger displays.
What's the WiFi range?
Typically 25โ30 metres in open space, depending on obstacles.
Which software makes the .out animation file?
All Koshi SD-card pixel controllers use the free, open-source Jinix (Jinx!) software โ design your animation on a PC, export it as a .out file, and copy it to the SD card. The controller plays these .out files directly. (LedEdit is not used for this controller.)
Warranty
6-month warranty* on manufacturing defects.
*Warranty covers manufacturing defects only. Not covered: physical damage, water damage, wrong SMPS connection (reverse +/โ polarity), connecting to 220V AC, or the controller being exposed to rain. Protect the controller and SMPS from rain (use a rainproof box outdoors).
Can one SD card hold programs for different matrix sizes?
Can I order programs for extra sizes?
How many pixels per port?
Which LED ICs are supported?
Colours look wrong (red shows as green)?
The display is mirrored or scrambled row-by-row?
Do text and animation need different wiring?
Can WiFi and SD card run together?
How is it different from the W8000 PRO?
What's the WiFi range?
The program for the size selected above is included. Add more sizes at โน200 each โ all loaded on one SD card, switch between them from your phone.
