| Specification | Details |
|---|---|
| Maximum Pixels | 8192 across 8 ports |
| Ports | 8 independent outputs |
| Operating Voltage | 5V DC |
| Supported ICs | WS2811, WS2812B, UCS1903 |
| Control Methods | WiFi, SD card, manual buttons |
| Animation Files | .out (JINIX software) |
| Matrix Types | S-Type (zig-zag), Z-Type (straight) |
| Warranty | 6 months* (manufacturing defects only) |

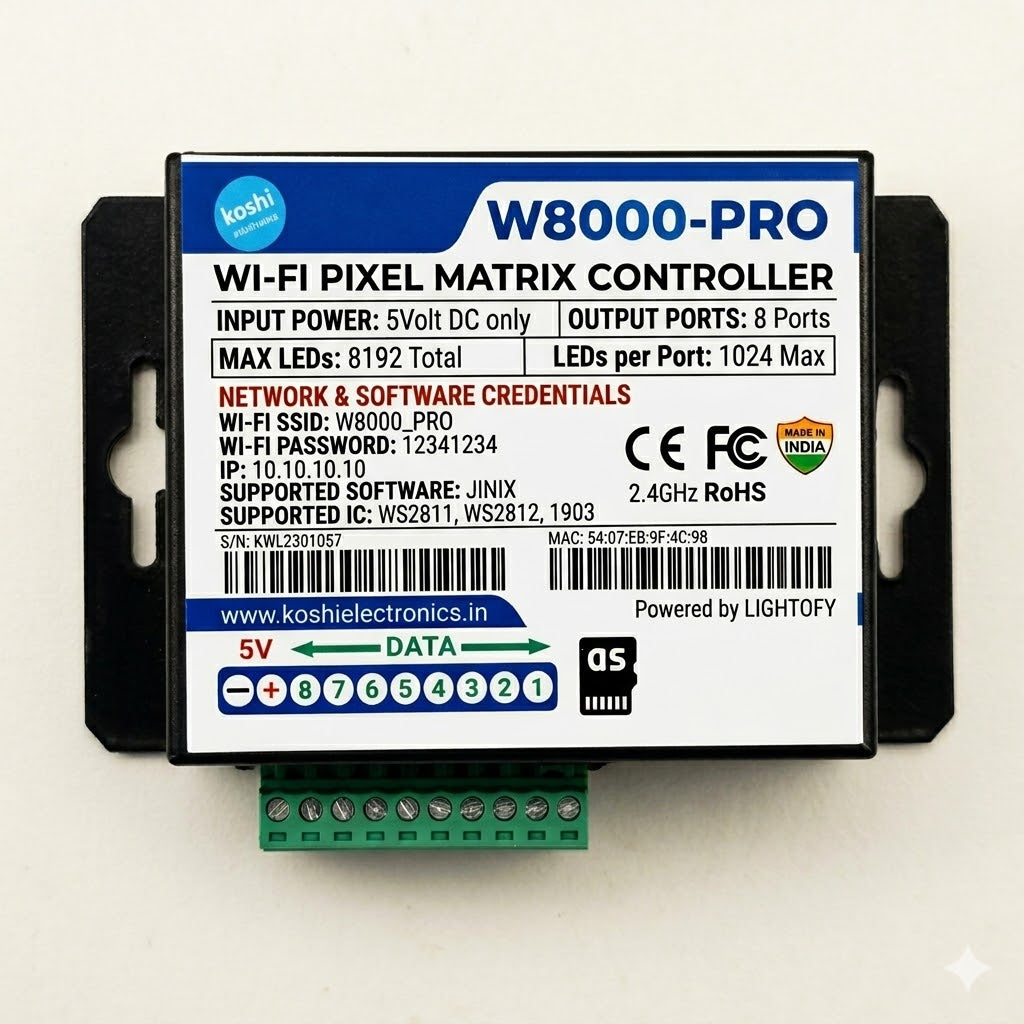

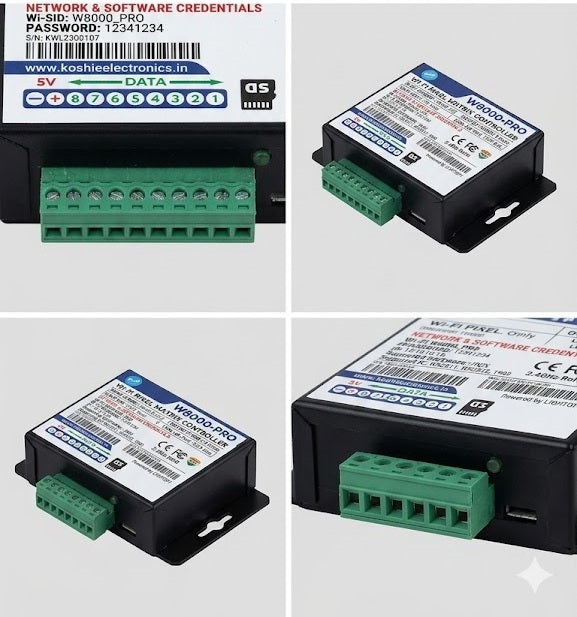

The Koshi Electronics W8000 PRO WiFi Pixel Matrix Controller is a professional 8-port controller for large-scale pixel displays, driving up to 8192 pixels. It combines WiFi and SD-card control with live multi-language scrolling text and 100+ built-in effects โ built for building facades, large event displays and professional installations.
๐ Download the full W8000 PRO User Manual (PDF) โ complete setup, IC type, S/Z wiring, effects & troubleshooting.
Key Features
- 8 independent ports: up to 8192 pixels split across outputs for large displays.
- WiFi + SD card: play SD-card animations while sending live text over WiFi.
- Live scrolling text: messages display quickly with no app needed.
- 100+ effects plus custom .out files via JINIX software.
- Multi-language: Hindi, English, Urdu, Arabic, Marathi, Bengali, Tamil, Telugu, Kannada and more.
- S-Type & Z-Type matrix support.
Specifications
| Specification | Detail |
|---|---|
| Maximum Pixels | 8192 across 8 ports |
| Ports | 8 independent outputs |
| Operating Voltage | 5V DC |
| Supported ICs | WS2811, WS2812B, UCS1903 |
| Control Methods | WiFi, SD card, manual buttons |
| Animation Files | .out (JINIX software) |
| Matrix Types | S-Type (zig-zag), Z-Type (straight) |
| Warranty | 6 months* (manufacturing defects only) |
Not This Size? Compare WiFi Controllers
All three run the same easy phone-browser control. Pick by how many pixels your display needs:
| Feature | W1000 PRO | W8000 PRO (this product) |
W16000 PRO |
|---|---|---|---|
| Output Ports | 2 | 8 | 16 |
| Max Pixels | 2,048 | 8,192 | 16,000 |
| WiFi + Browser Control | โ | โ | โ |
| SD Card Animation | โ | โ | โ |
| Multi-IC + S/Z Wiring | โ | โ | โ |
| Best For | Name board, small thoran | Big Thoran / Building setup | Very Big Thoran / Building |
๐ Need a smaller, lower-cost option? The W1000 PRO (2 ports / 2,048 pixels) is perfect for name boards, shop signs and smaller thoran. Need even bigger? The W16000 PRO (16 ports / 16,000 pixels) handles very big building setups โ same simple phone control, just a different size.
Best For
- Building facade LED displays
- Large event and stage backdrops
- Shopping mall and commercial displays
- Multi-storey building decoration
- Large festive displays for Diwali, Navratri, Ganpati (Ganesh Chaturthi) and weddings
How It Works
- Connect a 5V power supply to the controller.
- Wire your pixel strips across the 8 output ports.
- Connect your phone to the controller's WiFi network.
- Open the control panel in your browser and set your matrix size and port layout.
- Upload animations to the SD card or send live text over WiFi.
Power Supply (SMPS) โ How Many You Need
Big pixel displays need heavy-duty 5V 80A (400W) SMPS. As a rule of thumb, use about one 5V 80A SMPS per ~1,000 LEDs, connected at the power-injection points so brightness stays full across the entire display.
| Approx LEDs | SMPS Needed |
|---|---|
| ~2,000 | 2 ร 5V 80A |
| ~4,000 | 4 ร 5V 80A |
| ~8,000 (full 8-port) | 8 ร 5V 80A |
Frequently Asked Questions
How many pixels per port?
Up to about 1024 pixels per port, for 8192 total. Distribute as your layout needs.
How much power supply do I need?
Use about one 5V 80A (400W) SMPS per ~1,000 LEDs โ for example 2 for ~2,000 LEDs, 4 for ~4,000, and up to 8 for a full ~8,000-LED display. See the Power Supply guide above.
Can WiFi and SD card run together?
Yes โ play SD-card animations while sending live text over WiFi.
Do I need JINIX software?
Only for custom animations. The built-in effects work out of the box.
How is it different from the W1000 Lite?
The W8000 PRO has 8 ports (vs 1โ2) and up to 8192 pixels (vs 2048), for much larger displays.
What's the WiFi range?
Typically 25โ30 metres in open space, depending on obstacles.
Warranty
6-month warranty* on manufacturing defects.
*Warranty covers manufacturing defects only. Not covered: physical damage, water damage, wrong SMPS connection (reverse +/โ polarity), connecting to 220V AC, or the controller being exposed to rain. Protect the controller and SMPS from rain (use a rainproof box outdoors).
