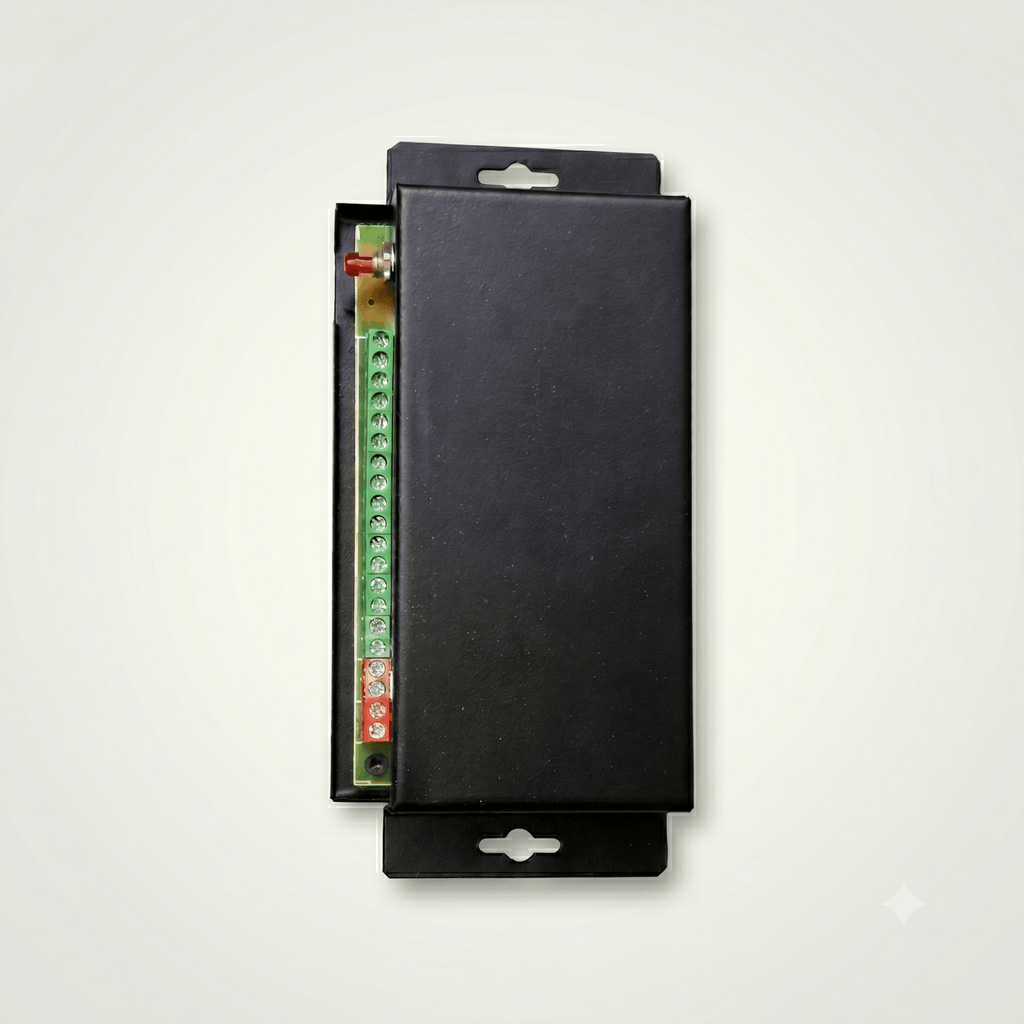

The Koshi Electronics W16000 PRO WiFi Pixel LED Controller is a professional 16-port controller for large-scale pixel displays, driving up to 16,000 pixels (16,384 max). The big brother of the W8000 PRO, it combines WiFi and SD-card control with smooth live multi-language scrolling text, full-colour animations and built-in effects — built for shop signs, name boards, building facades and large festive displays. No PC and no app required — everything runs from your phone or laptop browser.

📄 Download the full W16000 PRO User Manual (PDF) — complete setup, IC type, S/Z wiring, effects & troubleshooting.

Choose Your Variant

• WITH PROGRAM: supplied with a ready-made microSD animation program — plug in and play straight away.
• WITHOUT PROGRAM: the controller only; load your own .out animation files.

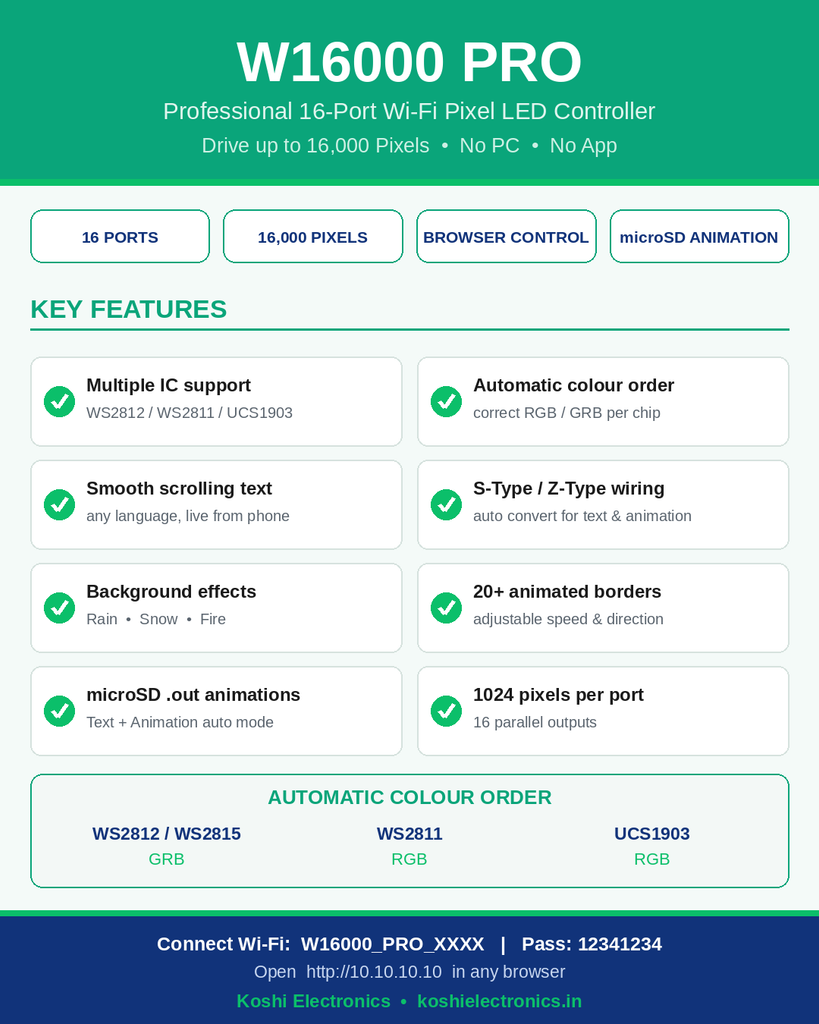

Key Features

• 16 independent ports: up to 16,000 pixels (16,384 max) split across outputs for large displays.
• Multiple IC support: WS2812B / WS2815 (GRB) and WS2811 / UCS1903 (RGB), with automatic colour order — just pick your chip.
• WiFi + SD card: play SD-card animations while sending live text over WiFi.
• Smooth live scrolling text: messages display instantly with no app needed.
• Background effects & borders: Rain, Snow and Fire, plus 20+ animated border styles.
• Multi-language: Hindi, English, Urdu, Arabic, Marathi, Bengali, Tamil, Telugu, Kannada and more.
• S-Type & Z-Type matrix support — applied to both text and animation.
• Consistent wiring: text and animation use the same equal port layout, so one wiring works for both.
• Settings saved automatically and restored after power-off; factory reset button for quick recovery.

Specifications

Best For

• Shop signs, name boards and scrolling message displays
• Building facade and multi-storey LED displays
• Advertising boards and commercial / mall displays
• Large event and stage backdrops
• Large festive displays for Diwali, Navratri, Ganpati and weddings

How It Works

1. Connect a 5V power supply and wire your pixel strips across the 16 output ports.
2. Power on and connect your phone to the WiFi network W16000_PRO_XXXX (password 12341234).
3. Open http://10.10.10.10 in your browser (it usually opens automatically).
4. Set your matrix size, IC type and connection type (S/Z).
5. Type your text and press Send, or load .out animations from the SD card.

Frequently Asked Questions

How many pixels per port?
Up to 1024 pixels per port — 16,384 total (16,000 recommended). The pixels are split equally across the ports for both text and animation.

Which LED ICs are supported?
WS2812B / WS2815 (GRB) and WS2811 / UCS1903 (RGB). Just select your IC type and the correct colour order is applied automatically.

Colours look wrong (red shows as green)?
You have the wrong IC type selected — switch between WS2812 (GRB) and WS2811 / UCS1903 (RGB) until colours are correct.

The display is mirrored or scrambled row-by-row?
Switch the Connection Type between S-Type and Z-Type. This applies to both text and animations.

Do text and animation need different wiring?
No. The controller divides the pixels equally across the ports in both modes, so a single wiring layout works for everything.

Can WiFi and SD card run together?
Yes — play SD-card animations while sending live text over WiFi.

How is it different from the W8000 PRO?
The W16000 PRO has 16 ports (vs 8) and up to 16,000 pixels (vs 8192) — about double the capacity, for much larger displays.

What's the WiFi range?
Typically 25–30 metres in open space, depending on obstacles.

Warranty

6-month warranty* on manufacturing defects.

*Warranty covers manufacturing defects only. Not covered: physical damage, water damage, wrong SMPS connection (reverse +/− polarity), connecting to 220V AC, or the controller being exposed to rain. Protect the controller and SMPS from rain (use a rainproof box outdoors).
