▶️ Watch: Pixel LED RGB Strip 12V (5M) Demo

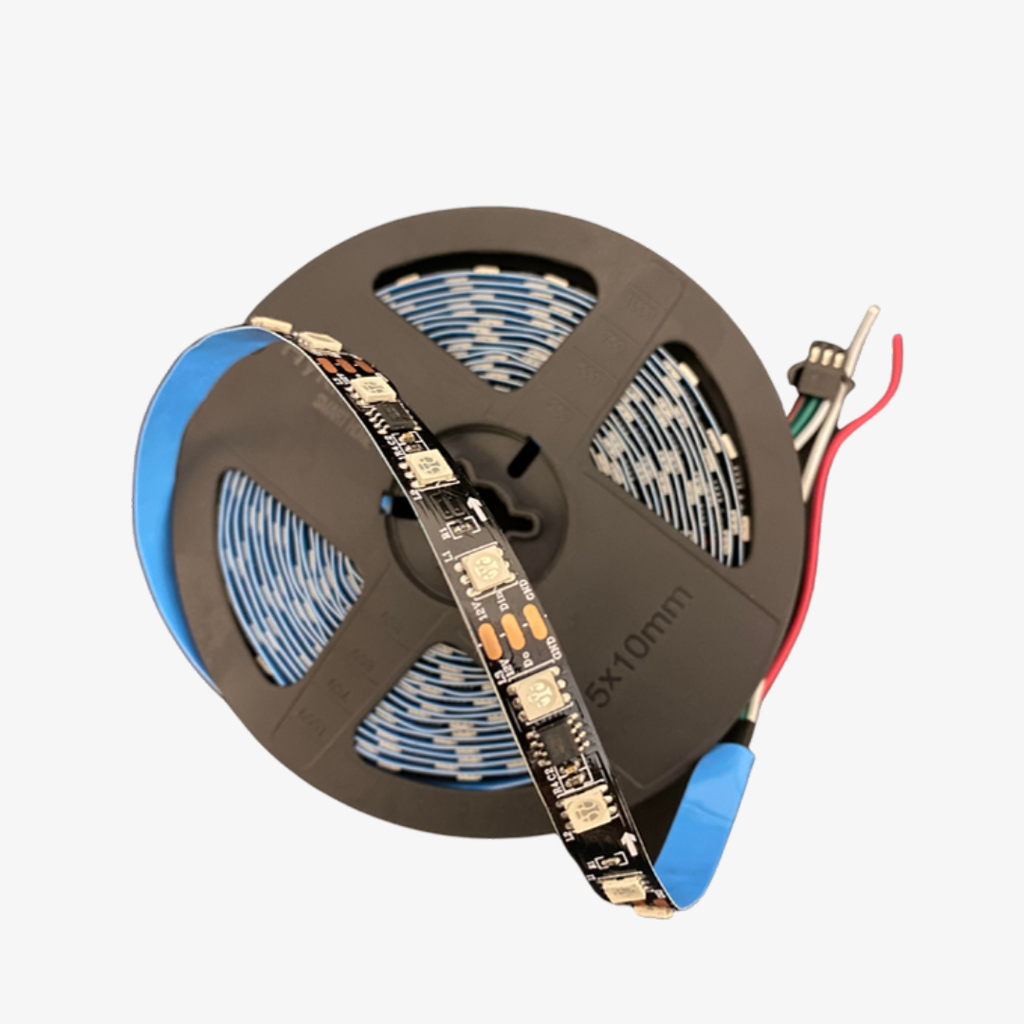

12V WS2811 addressable RGB pixel strip — 5 metre, 300 LED, 100 IC, 60 LED per metre, 12W per metre, IP20 (indoor). Standard and Worldsemi original IC options. For false ceilings, accent lighting, signage and décor — each section individually controllable. A waterproof variant is available separately.
| Specification | Details |
|---|---|
| Voltage | 12V DC |
| IC | WS2811 (Standard or Worldsemi original) |
| LED Density | 60 LED per metre |
| Length | 5 metre — 300 LED, 100 IC |
| Power | Approx 12W per metre (~60W per 5m roll) |
| Waterproof | IP20 (indoor) — waterproof variant available separately |
| Colour | Full RGB — addressable, each section controllable |
| Cuttable | Yes, at marked cut points |
| Control | Any pixel controller (T1000S, SP621E, etc.) + 12V SMPS |
| Brand | Koshi Electronics |
Professional 12V addressable RGB pixel strip for accent lighting, signage, false ceilings and décor. With WS2811 ICs, every section is individually controllable for smooth colour flows, chases and animations.
Specifications
| Specification | Detail |
|---|---|
| Voltage | 12V DC |
| IC | WS2811 — Standard or Worldsemi original |
| LED Density | 60 LED per metre |
| Length | 5 metre — 300 LED, 100 IC |
| Power | Approx 12W per metre (~60W per 5m roll) |
| Waterproof | IP20 (indoor) |
| Colour | Full RGB — addressable |
| Cuttable | Yes, at marked cut points |
Key Features
- Addressable WS2811 — control each section individually for dream-colour effects
- 60 LED per metre — 300 LED & 100 IC in a 5m roll
- 12W per metre — easy SMPS sizing
- Standard & Worldsemi IC options — budget or premium reliability
- Cuttable & solderable — customise at marked cut points
Normal vs Worldsemi (Original) — Which to Choose?
Both variants are available. Use the comparison below to decide which is right for you:
| Feature | Normal (Budget) | Worldsemi (Original) |
|---|---|---|
| PCB | Mixed PCB — not 100% copper | 100% Copper PCB |
| LED | Not 100% copper | Copper LED |
| IC | Clone IC (2811 / 1903 / MT2811 type) | Original WS2811 IC |
| Lifespan | Shorter life | Very long — 3 to 4 years* |
| Best For | Budget / short-term use | Long-term / professional installs |
*The 3–4 year life of the Worldsemi original applies with proper housing in a dry environment where water and dust are controlled.
Strip Connection — How To
Strip ko controller aur power se connect karna seekhein:
Best For
- False ceilings & accent / cove lighting
- Signage, gaming setups & decorative installations
- Indoor festive & event decoration
Need outdoor / waterproof? This strip is IP20 (indoor). For waterproof (IP65 / IP67), see: Addressable Pixel LED RGB Strip (IP20/IP65/IP67).
Complete Your Setup
- Pixel LED Controller — Pixel LED Controllers
- 12V SMPS Power Supply — 12V SMPS Power Supply
- Cables & Connectors — Cables & Connectors
Koshi Electronics — India's #1 Pixel LED & lighting solutions. Contact us for bulk enquiries.
Strip kitna power leti hai?
Approx 12 watt per metre — 5 metre roll lagbhag 60W. 12V SMPS isi hisaab se (margin ke saath) choose karein.
LED density kitni hai?
60 LED per metre. 5 metre mein 300 LED aur 100 IC (har IC 3 LED control karta hai).
Normal aur Worldsemi (original) strip mein kya farak hai?
Normal (budget) strip mixed PCB par banti hai (100% copper nahi), LED aur IC bhi original nahi — clone IC (2811 / 1903 / MT2811 type). Worldsemi (original) mein original WS2811 IC, copper LED aur copper PCB hota hai — bahut long life: proper housing aur dry, dust/water-controlled environment mein 3-4 saal tak. Long-term ya professional installation ke liye Worldsemi lein; short-term/budget ke liye Normal.
Kya ye waterproof hai?
Ye variant IP20 (indoor) hai. Waterproof (IP65/IP67) chahiye to hamara Addressable Pixel LED RGB Strip variant dekhein.
Chalane ke liye kya chahiye?
Ek pixel controller (T1000S, SP621E, etc.) aur 12V SMPS power supply. Connection ke liye upar diya video dekhein.
Strip cut/solder kar sakte hain?
Haan, marked cut points par cut aur dobara solder kar sakte hain — data direction (arrow) ka dhyaan rakhein.
