| Specification | Details |
|---|---|
| LED IC | SK6812 (5V) / WS2811 (12V) |
| Strip Width | 8mm (5V) / 6mm (12V) |
| LED Density | 60 LED/m (5V) / 72 LED/m (12V) |
| Roll Length | 5 meter (5V) / 10 meter (12V) |
| Colour | RGB (addressable) |
| Configuration | Zig-zag S-type (flexible) |
| IP Rating | IP20 (indoor use) |
| Control | Each LED individually addressable |

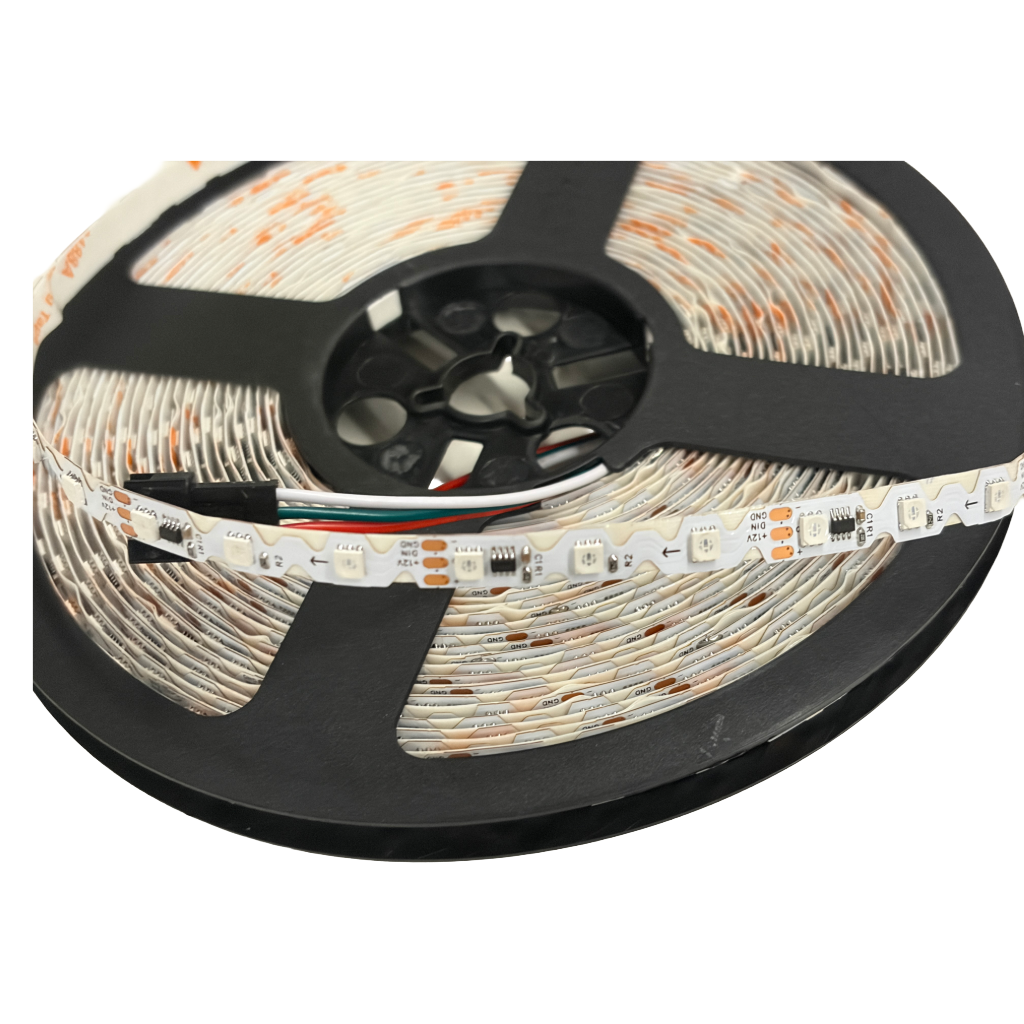

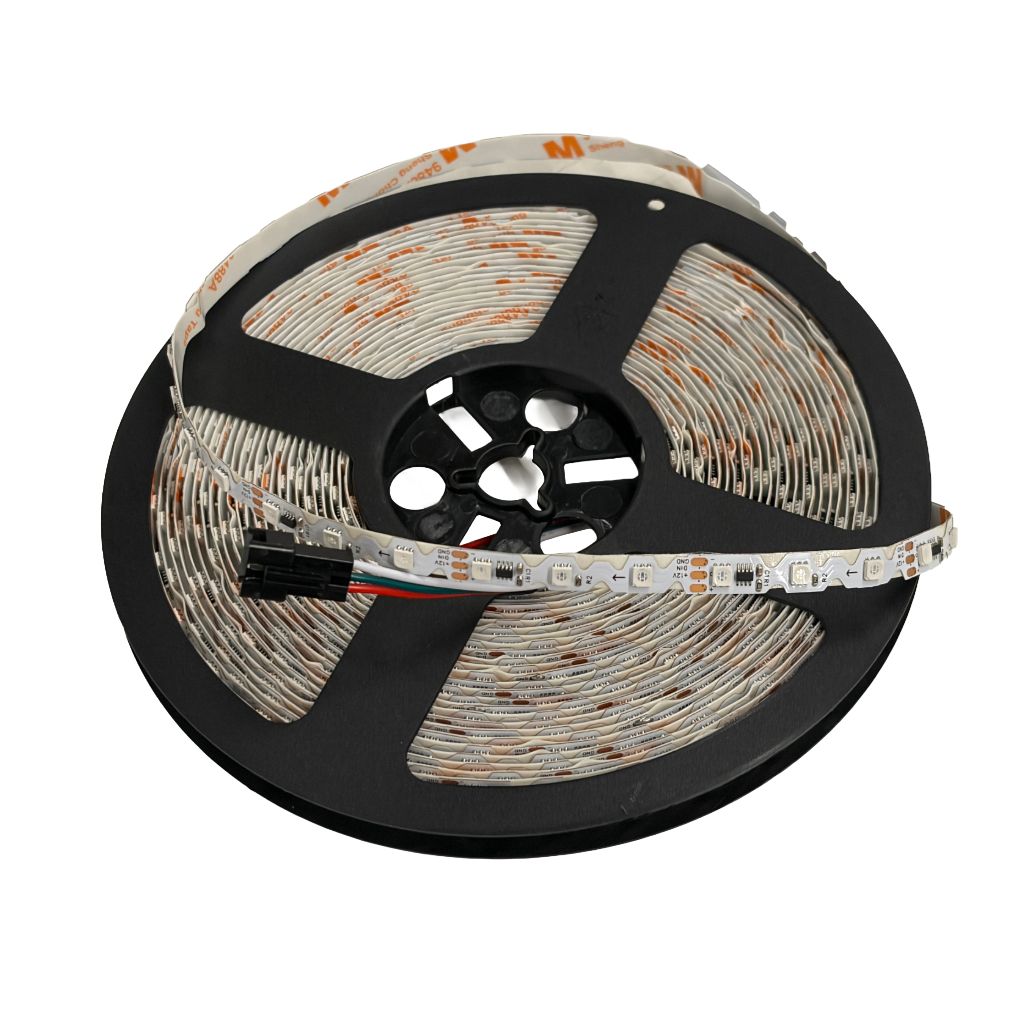

The Koshi Electronics Zig Zag S-Type Pixel LED Strip is a flexible, individually-addressable RGB strip arranged in an S-type (zig-zag) layout, so it bends and curves smoothly around shapes a normal straight strip can't follow. It comes in two versions — a 5V (SK6812) version and a 12V (WS2811) version — so you can match your controller and setup. Every LED is individually controllable for full custom animation.
5V vs 12V — Which Version?
Both are the same flexible S-type zig-zag strip with individually addressable RGB. Pick by your controller voltage and how long a run you need:
| Feature | 5V Version | 12V Version |
|---|---|---|
| LED IC | SK6812 | WS2811 |
| Strip Width | 8 mm | 6 mm |
| LED Density | 60 LED / meter | 72 LED / meter |
| Roll Length | 5 meter | 10 meter |
| Colour | RGB (addressable) | RGB (addressable) |
| Configuration | Zig-zag S-type | Zig-zag S-type |
Key Features
- Flexible S-type (zig-zag) design: bends and curves smoothly for shapes a straight strip cannot follow.
- Individually addressable RGB: control every pixel for full custom animation.
- Two versions: 5V (SK6812, 8mm, 60 LED/m, 5-meter roll) or 12V (WS2811, 6mm, 72 LED/m, 10-meter roll).
- 12V = longer runs: 10-meter roll with 72 LED/m — fewer joints and cleaner long setups.
- Custom animation support: program any effect with a compatible pixel controller.
- IP20 (indoor): best for indoor thoran, matrix, backdrop and creative setups.
Best For
- Long thoran, matrix and backdrop runs (12V 10-meter roll = fewer joints)
- Curved furniture edging and architectural details
- Custom art and creative LED installations
- Gaming setup and car-interior accents
- Festive decoration for Diwali, Navratri, Ganpati (Ganesh Chaturthi), and weddings
How To Set Up
- Plan your path (curved or straight) and map out where the LEDs will run.
- Wire the strip to a compatible pixel controller (DATA + GND).
- Power from a matching SMPS — use the correct voltage (5V or 12V) for your strip.
- Secure with the adhesive backing or clips, curving gently without sharp bends.
- Set your controller IC type to SK6812 (5V) or WS2811 (12V) and load your animation.
Frequently Asked Questions
What's the difference between the 5V and 12V version?
The 5V uses the SK6812 IC (8mm wide, 60 LED/m, 5-meter roll). The 12V uses the WS2811 IC (6mm wide, 72 LED/m, 10-meter roll). The 12V is better for longer runs; both are flexible S-type with individually addressable RGB.
How many LEDs per meter?
60 LED/m on the 5V version and 72 LED/m on the 12V version.
Can I bend this strip sharply?
No — bend it smoothly with a large radius. Sharp bends can damage the internal traces.
What's the difference between S-type and Z-type?
S-type zig-zags so it can flex into curves; Z-type runs straight. This is the flexible S-type.
Can I use it outdoors?
This is an IP20 strip, made for indoor use — it is not waterproof. For outdoor setups, protect it or ask us about a waterproof option.
What happens if I use the wrong voltage?
The LEDs can be damaged instantly. Always order and connect the correct voltage (5V or 12V) for your controller and supply.
How do I secure it to a surface?
Use the adhesive backing or mechanical clips. Plan the path first, then fix it gently along the run.
