The T8000 (2014 version) is a professional 8-port offline SD card pixel LED controller for large displays, available in two types. T8000 TTL uses an external 5V power supply and supports synchronisation — sync two or more controllers for projects above 8000 LEDs. T8000 AC has a built-in 5V supply (connect 220V directly), a digital display, a rainproof body for outdoor use, but no sync — best for projects under 8000 LEDs. Both have 8 ports (1000 pixels per port), 256 grayscale, and are programmed using LED Edit 2014 software (requires Adobe Flash Player).
| Specification | Details |
|---|---|
| Type | 8-port offline SD card pixel LED controller |
| Variants | T8000 TTL & T8000 AC |
| Ports | 8 data ports, 1000 pixels per port |
| Max pixels | 8000 (TTL) / 8192 (AC) |

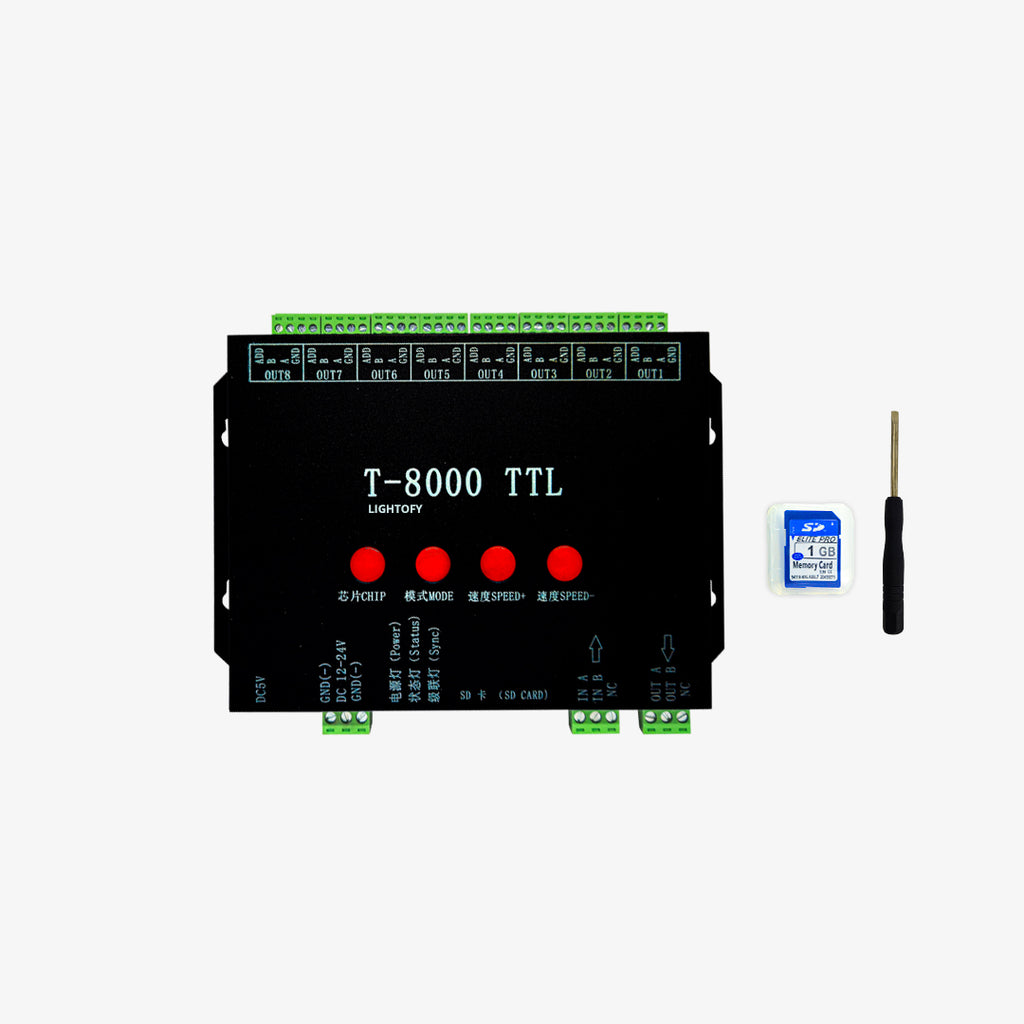

| T8000 TTL power | External 5V supply + sync (for 8000+ LED projects) |
| T8000 AC power | Built-in 5V (connect 220V), digital display, rainproof / outdoor, no sync |
| Grayscale | 256 gray with Gamma correction |
| Software | LED Edit 2014 (requires Adobe Flash Player) |
| IC support | WS2811 / WS2812 / 1903 & more |
| Storage | SD card, up to 16 documents |
The T8000 (2014 version) is a professional 8-port offline SD-card pixel LED controller for large displays, available in two types — TTL and AC. Both have 8 ports (1000 pixels per port), 256 grayscale, and are programmed using LED Edit 2014 software (requires Adobe Flash Player).
TTL vs AC — Which One?
| Feature | T8000 TTL | T8000 AC |
|---|---|---|
| Power | External 5V supply | Built-in 5V (connect 220V directly) |
| Synchronisation | Yes — sync 2+ controllers for 8000+ LEDs | No sync |
| Display | — | Digital display |
| Body | Standard | Rainproof (outdoor) |
| Best For | Very large projects above 8000 LEDs | Projects under 8000 LEDs, outdoor use |
Common Specifications
- 8 output ports — 1000 pixels per port
- 256 grayscale — smooth colour depth
- Offline SD-card playback — no PC needed at the venue
- Software: LED Edit 2014 (requires Adobe Flash Player)
Best For
- Large building & Thoran pixel displays
- Diwali, Navratri, Ganpati (Ganesh Chaturthi) & weddings
- Professional decorators & event installers
What is the difference between the T8000 TTL and T8000 AC?
T8000 TTL: needs an external 5V power supply and has a synchronisation feature — you can sync 2 or more controllers for projects above 8000 LEDs. T8000 AC: has an internal 5V supply (connect 220V directly), a digital display and a rainproof body (for outdoor use), but no sync — best for projects under 8000 LEDs.
How many pixels can it run?
It has 8 ports, 1000 pixels each — up to 8000 (TTL) or 8192 (AC). For bigger projects, sync TTL units to drive even more LEDs.
Which software does it use?
It uses LED Edit 2014 software to create animations. Adobe Flash Player must be installed on the computer. The program is stored on an SD card (max 16 documents).
Which LEDs does it support?
It works with WS2811, WS2812, 1903 and other common pixel ICs — ideal for decoration, advertising and large pixel LED displays.

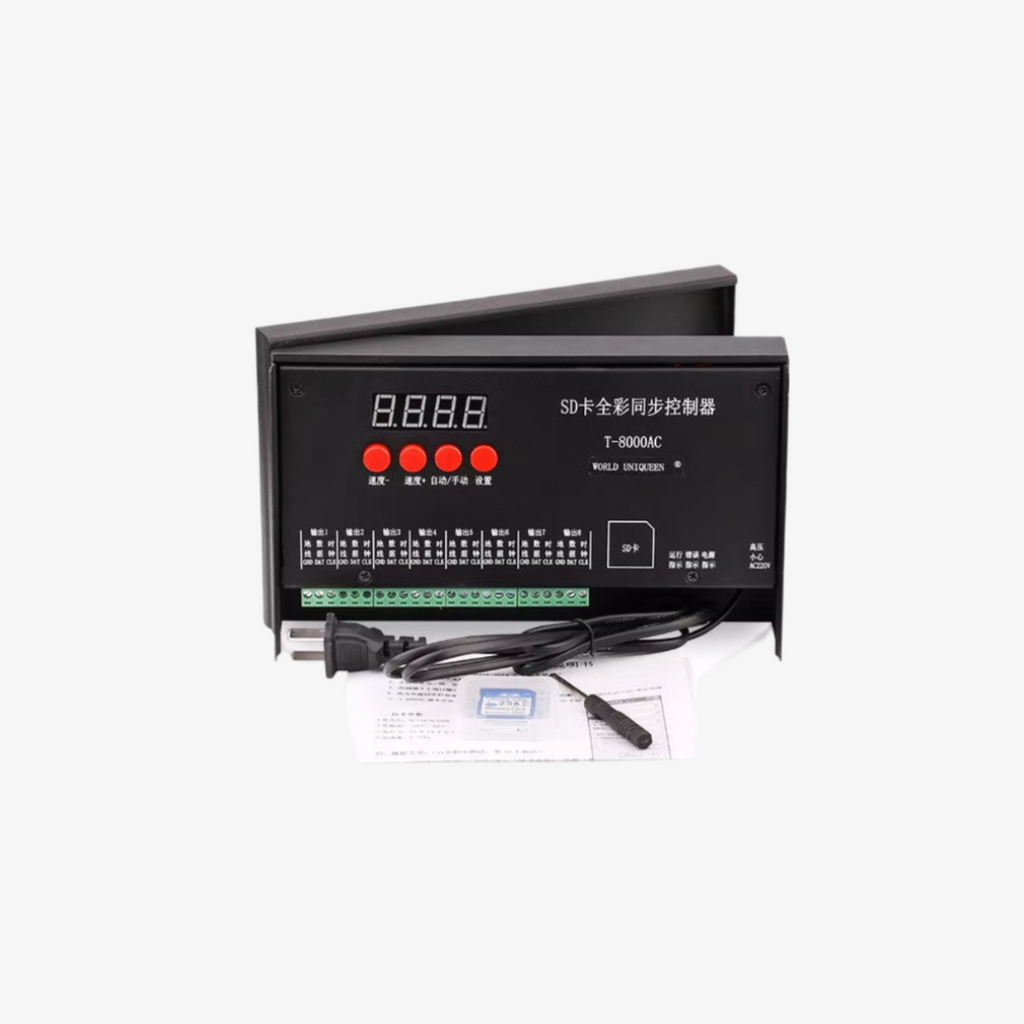

Can the AC version be installed outdoors?
Yes. The T8000 AC has a rainproof function, so it can be hung outdoors. Its digital display also shows the matching chip models.
Which one should I get for more than 8000 LEDs?
Choose the T8000 TTL, because it can sync 2 or more controllers. For under 8000 LEDs, the T8000 AC is fine.
