| Specification | Details |
|---|---|
| Model | SP802E |
| Wireless Protocols | WiFi 2.4GHz + Bluetooth (dual, simultaneous) |
| Control Protocol | SPI |
| Compatible LED ICs | WS2812B (addressable RGB) |
| Maximum LED Load | 1000+ addressable pixels |
| Color Depth | Full RGB — 16.7 million colors |
| Animation Modes | 100+ pre-loaded + custom programmable |
| Music Sync | Built-in microphone, real-time beat detection |
| App Compatibility | iOS and Android |
| Brand | Koshi Electronics |
The SP802E is a professional-grade SPI RGB matrix controller with dual wireless connectivity — WiFi and Bluetooth — built for addressable pixel LED installations that demand precision, synchronization, and scale. Whether you are setting up a concert stage, a wedding backdrop, or a large festival display, the SP802E delivers real-time music-reactive effects with full smartphone control.
Key Features
- Dual Wireless Control — WiFi and Bluetooth both active simultaneously for flexible operation
- Real-Time Music Sync — Built-in microphone detects beat and tempo, LEDs respond automatically
- 100+ Animation Modes — Pre-loaded effects including chase, fade, strobe, and custom patterns
- High Capacity — Supports 1000+ addressable WS2812B LEDs on a single controller
- SPI Protocol — Industry-standard interface for reliable, high-speed pixel data transmission
- Free Mobile App — Full control via iOS and Android app (WiFi range unlimited via router; Bluetooth up to 10–20 m)
- Custom Animation Programming — Create and save your own effects through the app
Technical Specifications
| Model | SP802E |
| Wireless Protocols | WiFi 2.4GHz + Bluetooth (dual, simultaneous) |
| Control Protocol | SPI |
| Compatible LED ICs | WS2812B (addressable RGB) |
| Maximum LED Load | 1000+ addressable pixels |
| Color Depth | Full RGB — 16.7 million colors |
| Animation Modes | 100+ pre-loaded + custom programmable |
| Music Sync | Built-in microphone, real-time beat detection |
| App Compatibility | iOS and Android |
| Brand | Koshi Electronics |
Ideal For
- Concert and stage lighting setups
- Music festivals and DJ event displays
- Wedding reception backdrops and mandap lighting
- Nightclub and entertainment venue installations
- Diwali, Navratri and Ganpati (Ganesh Chaturthi) festival decoration
- Theater and performance art productions
In The Box

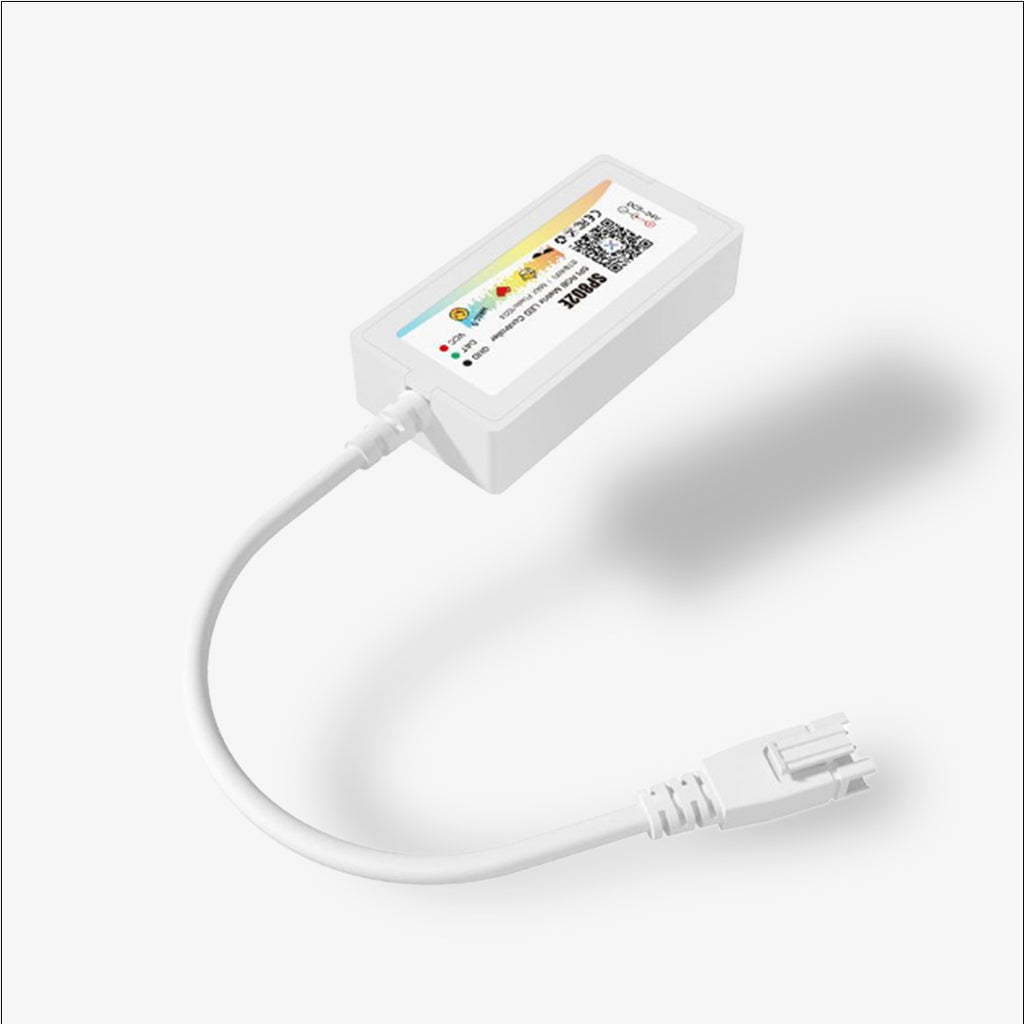

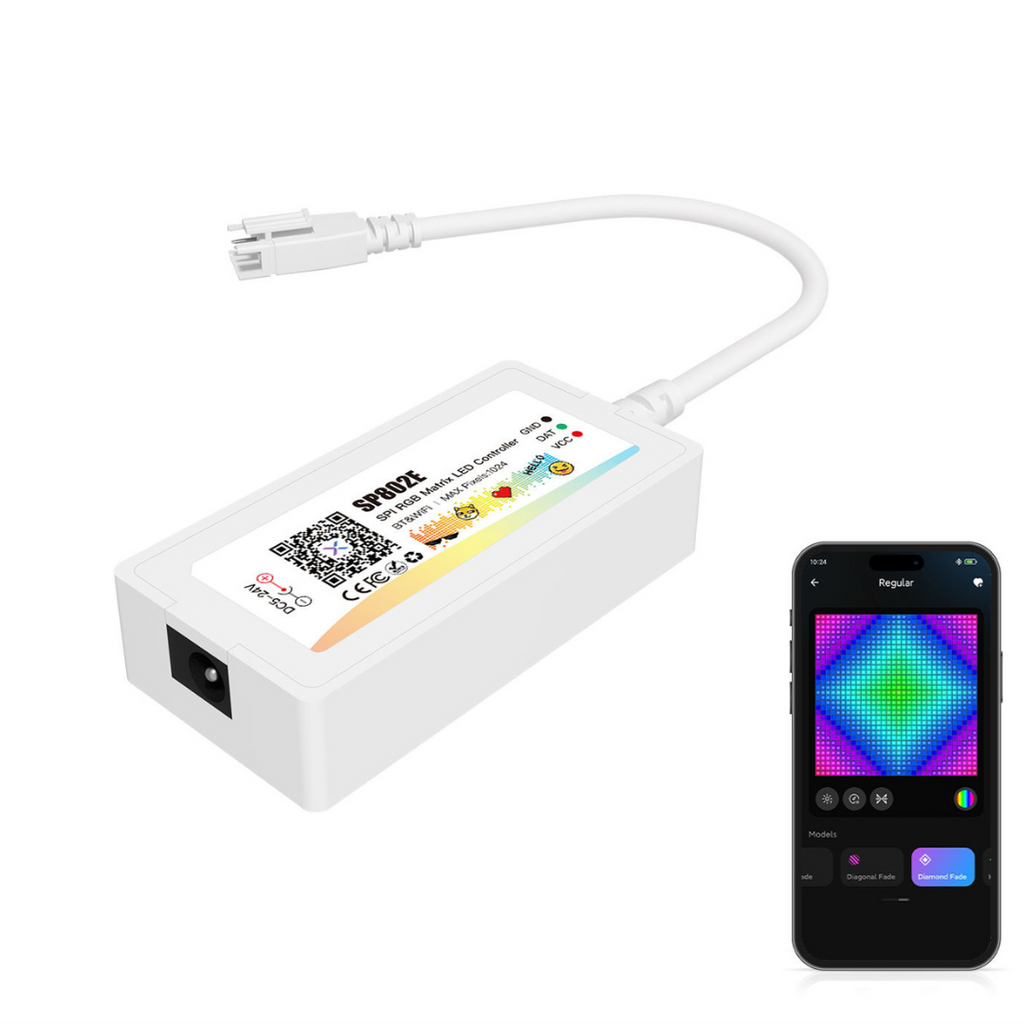

- 1x SP802E SPI RGB Matrix Controller
- Power input connector
- SPI output terminal
- Quick start guide
Control app available as free download on iOS and Android.
How To Set Up
- Connect your WS2812B addressable LED strip or matrix to the SPI output
- Connect a suitable power supply to the controller input
- Download the SP802E control app on your smartphone
- Connect the controller to your WiFi network or pair via Bluetooth
- Select an animation mode or enable Music Sync for beat-reactive effects
Frequently Asked Questions
Which LED strips are compatible with the SP802E?
The SP802E is designed for WS2812B addressable RGB LED strips and matrices using the SPI protocol.

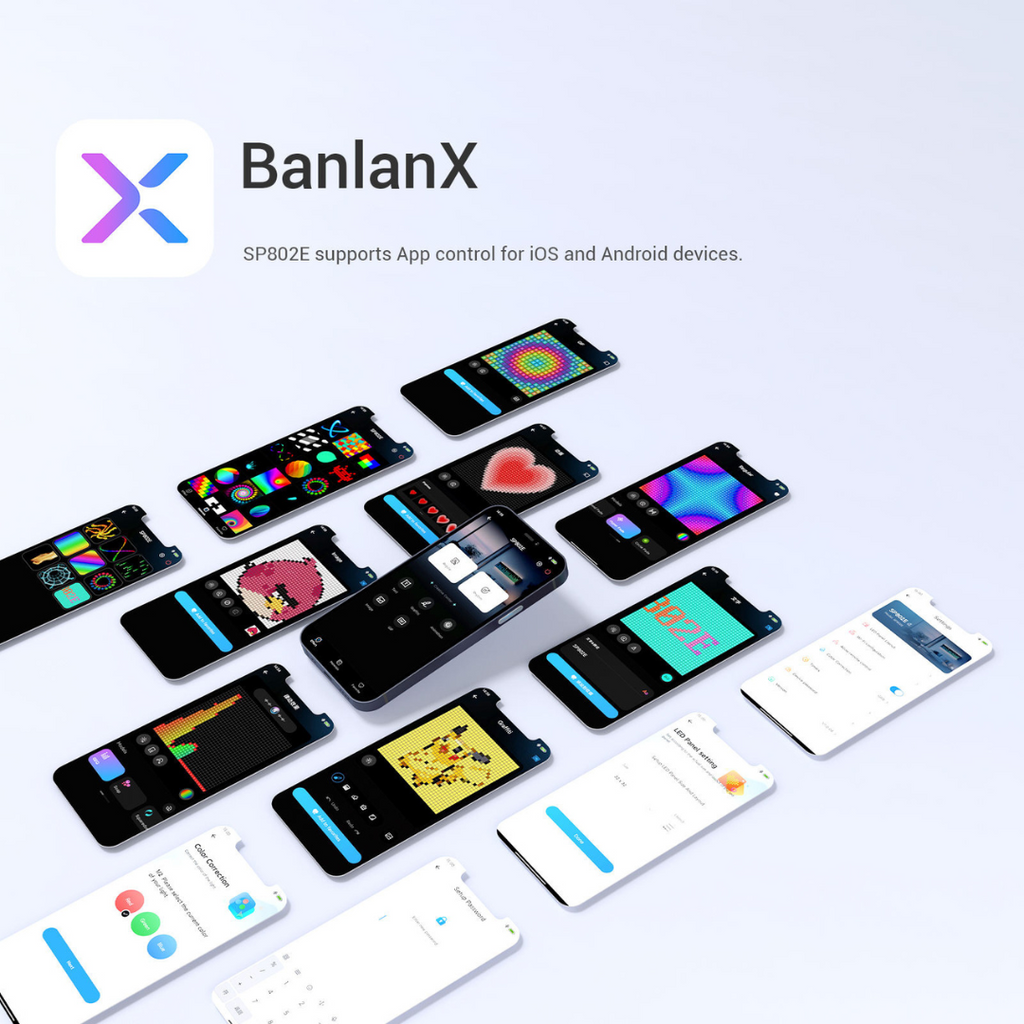

Can I control the SP802E from my phone?
Yes. The free app works on both iOS and Android. Over WiFi, range depends on your router. Over Bluetooth, range is approximately 10–20 metres.
How does music synchronization work?
A built-in microphone on the controller detects the beat and tempo of ambient audio in real time. The LED effects update automatically to match the music — no manual adjustment needed.
Can WiFi and Bluetooth be used at the same time?
Yes, both wireless modes can be active simultaneously.
How many LEDs can one SP802E controller handle?
The SP802E supports 1000+ addressable WS2812B pixels on a single unit.
Can I create my own animations?
Yes. The app includes a custom animation editor for creating and saving your own effects.
