| Specification | Details |
|---|---|
| Product Type | Addressable RGB Pixel Neon Rope Light |
| Colour | Full RGB — addressable, individually controllable |
| Length | 5 metres |
| High Brightness Variant | 12V DC, WS2811 IC, neon strip only (controller separate) |
| Medium Brightness Variant | 5V DC, dedicated controller included, no cutting marks (fixed length) |
| Compatible Controllers (High Brightness) | T1000S, W1000-PRO, T8000, all WS2811 12V controllers |
| Applications | Shop signage, custom neon letters, stage effects, creative decoration |
| Brand | Koshi Electronics |

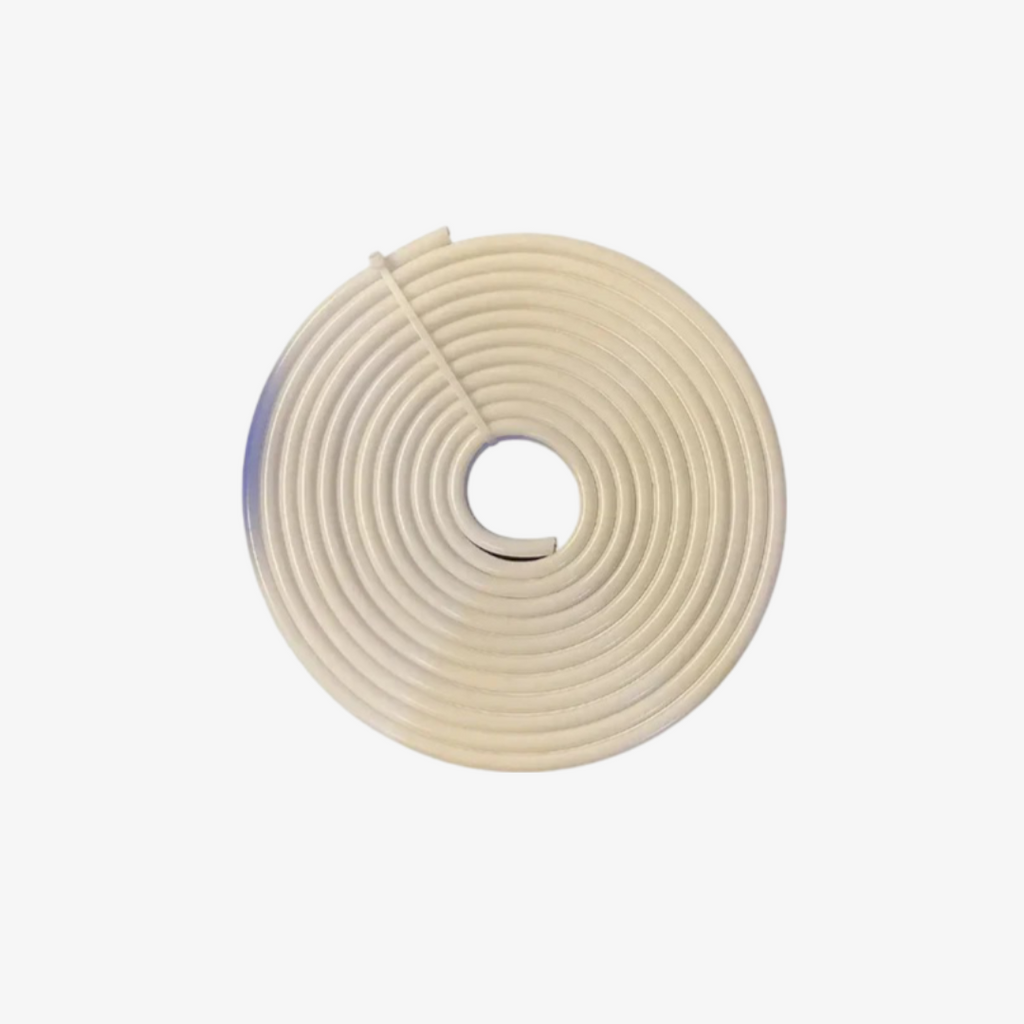

The Koshi Electronics Pixel LED Neon is an addressable RGB flexible neon rope light that delivers the soft, diffused glow of traditional neon with full pixel control. Every segment is individually addressable, so you can run chasing effects, gradients, custom animations and millions of colours. Its flexible silicone body bends into letters, logos and curves — ideal for shop signage, neon-style branding, stage backdrops and creative décor.
Choose Your Version
| Version | Voltage | What You Get | Best For |
|---|---|---|---|
| High Brightness · 12V · Strip Only | 12V (WS2811) | Neon strip only | Maximum brightness; for users who already have a WS2811 controller or want a custom setup |
| Medium Brightness · 5V · With Controller | 5V | Neon strip + dedicated controller | Ready-to-use, plug-and-play — no separate controller needed |
Key Features
- Addressable RGB: every segment individually controllable for chasing effects, gradients and custom animations.
- Soft, diffused neon glow with vivid full-colour output.
- Flexible silicone body: bends into letters, logos and curves.
- Length: 5 metres.
- High Brightness (12V): WS2811 IC, brighter output, neon strip only.
- Medium Brightness (5V): includes a dedicated controller — ready to use out of the box.
- Compatible controllers (High Brightness): T1000S, W1000-PRO, T8000 and all WS2811 12V controllers.
Specifications
| Specification | Detail |
|---|---|
| Type | Addressable RGB flexible neon rope light |
| Colour | Full RGB — individually addressable |
| IC (High Brightness) | WS2811 |
| Length | 5 metres |
| High Brightness | 12V DC, WS2811 IC, neon strip only |
| Medium Brightness | 5V DC, dedicated controller included |
| Body | Flexible silicone neon housing |
| Compatible Controllers (High Brightness) | T1000S, W1000-PRO, T8000, all WS2811 12V controllers |
What's In The Box
- High Brightness · 12V · Strip Only: Pixel LED Neon strip (WS2811 controller and 12V SMPS sold separately).

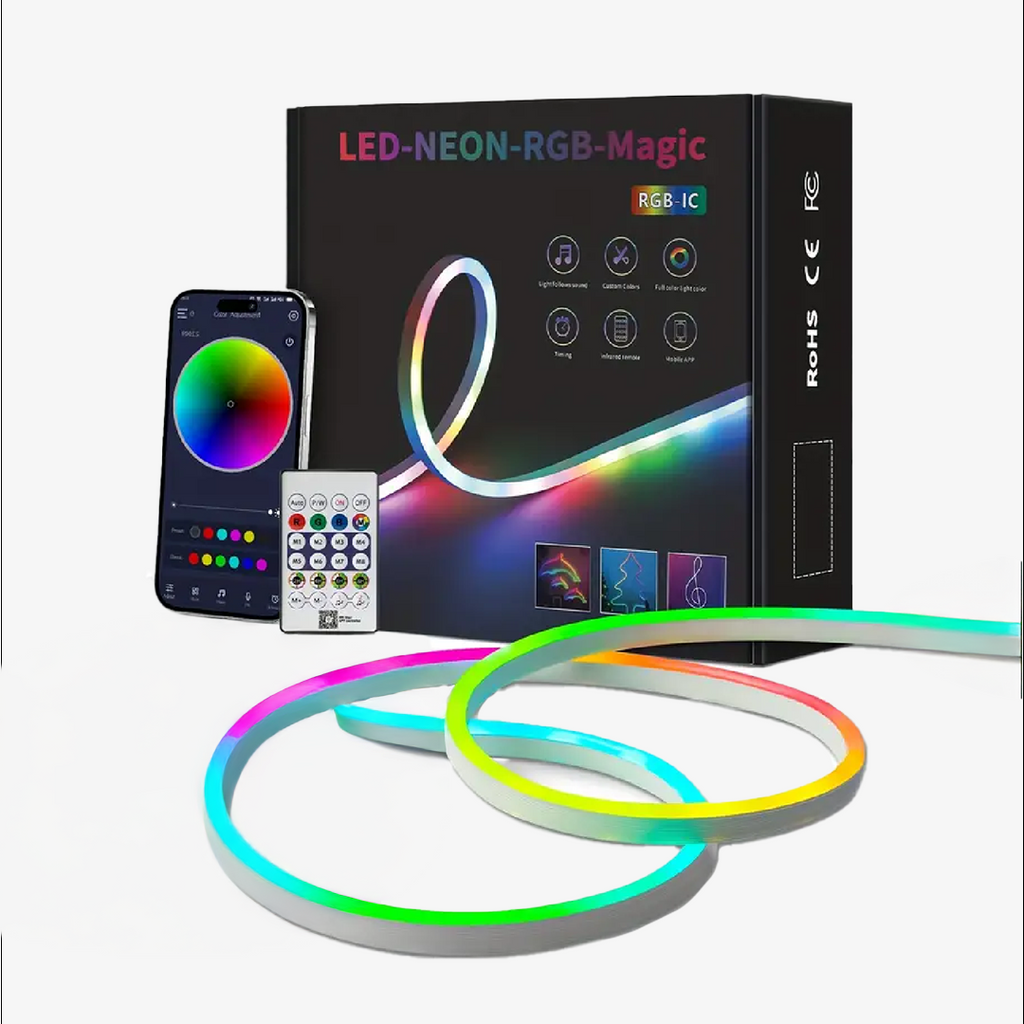

- Medium Brightness · 5V · With Controller: Pixel LED Neon strip + dedicated controller.
Power Supply
High Brightness (12V) needs a 12V SMPS (sold separately) — we recommend the 12V 5A DC Power Adapter →. Medium Brightness (5V) comes ready-to-use with its dedicated controller.
Best For
- Shop signage and neon-style name boards
- Custom neon letters, logos and quotes
- Stage, DJ and event backdrops
- Home, café and restaurant accent décor
- Festive lighting for Diwali, Navratri and Ganpati (Ganesh Chaturthi), and weddings
User Manual — Basic Setup
- Mount or bend the neon strip into position along your surface, letters or frame.
- High Brightness: connect Controller DATA → strip DATA-IN and Controller GND → strip GND, then power from a 12V SMPS. Medium Brightness: connect the included controller and switch on.
- On your controller, set the IC type to WS2811 and enter the correct segment/pixel count.
- Load your effect or animation and power on.
Setup & Demo Video
Frequently Asked Questions
How is this different from ordinary neon flex?
Ordinary neon flex is a single fixed colour. The Pixel LED Neon is addressable RGB — every segment is individually controllable, giving you chasing effects, gradients and full-colour animations.
Which version should I choose?
Choose Medium Brightness · 5V · With Controller for a ready-to-use, plug-and-play setup. Choose High Brightness · 12V · Strip Only for maximum brightness if you already have, or plan to buy, a WS2811 controller.
Can it be cut to size?
The Medium Brightness version is a fixed length with no cutting marks. For custom lengths, message us on WhatsApp.
Which controllers work with the High Brightness version?
Any WS2811 12V controller — for example the T1000S, W1000-PRO or T8000.
Can I use it outdoors?
The neon strip is waterproof, but the controller and SMPS must be kept dry and protected from rain.
What power supply do I need?
High Brightness needs a 12V SMPS (sold separately). Medium Brightness comes with its dedicated controller.
