▶️ Watch: Pixel LED Data Amplifier (Signal Booster) Demo
Agar aapki pixel LEDs flicker kar rahi hain ya galat colors aa rahe hain — especially long wiring ya T8000 ke saath building decoration mein — to ye Data Amplifier signal ko boost karke problem fix karta hai. Ye 5V aur 12V dono mein available hai. Ek pair mein use hota hai: Transmitter controller side pe aur Receiver LED strip side pe lagao. Data Splitter ki tarah bhi use kar sakte ho — ek signal ko multiple ports pe distribute karne ke liye.
| Specification | Details |
|---|---|
| Function | Data Amplifier + Data Splitter (2-in-1) |
| Available Voltages | 5V DC / 12V DC |
| Variants | Transmitter / Receiver (sold separately) |
| Compatible LEDs | WS2812, WS2811, 1903 IC Pixel LEDs |
| Compatible Controllers | T1000S, T8000, and all SD card controllers |
| Use Case 1 | Signal Amplifier — fix flickering from weak/noisy signal |
| Use Case 2 | Data Splitter — distribute one signal to multiple LED segments |
| Note | One complete pair = 1 Transmitter + 1 Receiver |
| Brand | Koshi Electronics |

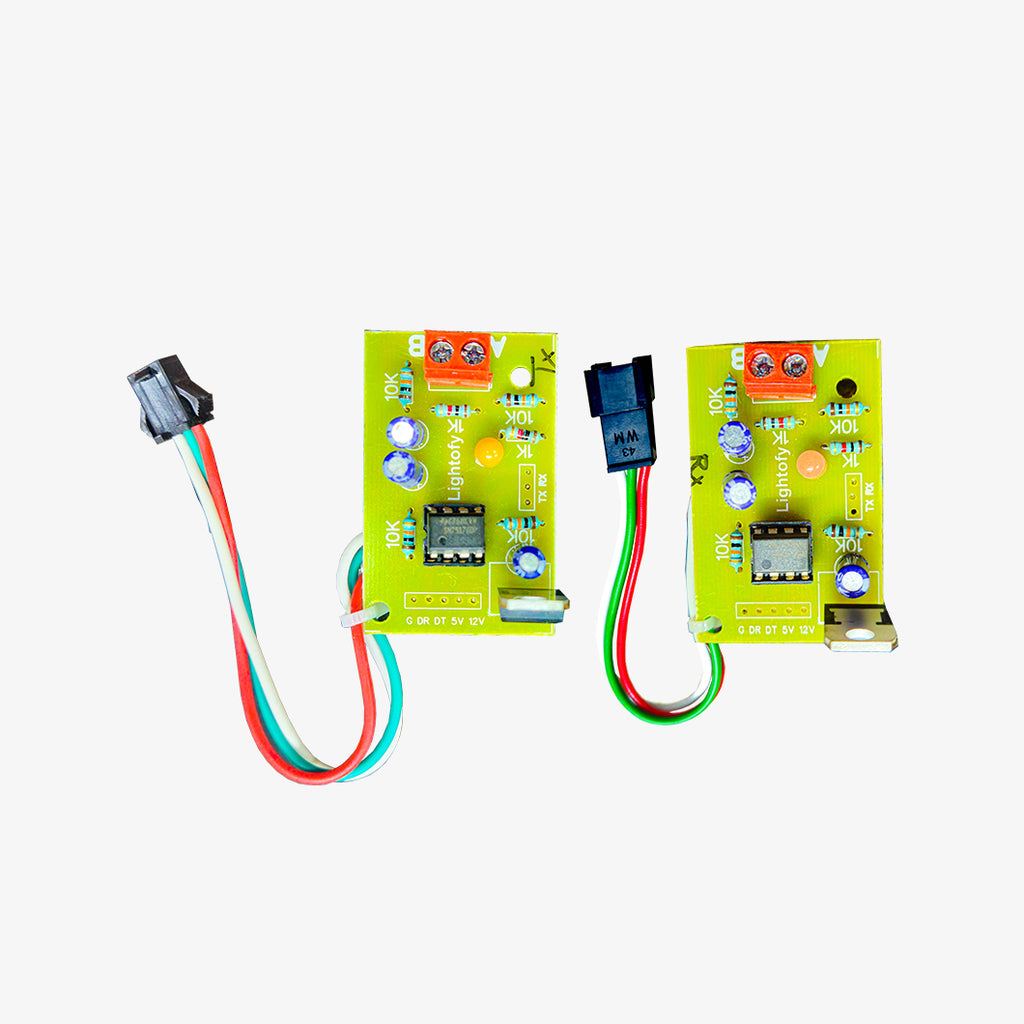

PIXEL LED DATA AMPLIFIER (SIGNAL BOOSTER)
Koshi Electronics ka Pixel LED Data Amplifier un setups ke liye designed hai jahan controller ka data signal weak ho jaata hai — jaise long-distance wiring, large building decoration, ya T8000 ke saath multi-port setups. Jab signal weak hota hai to pixel LEDs flicker karte hain ya galat colors dikhate hain. Ye amplifier signal ko boost karke clean aur stable rakhta hai.
Ye device 2 modes mein use hota hai: Data Amplifier (signal boost) aur Data Splitter (ek signal ko multiple outputs pe distribute karo).
Key Features
- Fixes Flickering: weak/noisy data signal ko boost karta hai
- 2-in-1 Use: Data Amplifier + Data Splitter dono modes mein kaam karta hai
- Available in 5V & 12V: apne LED setup ke voltage ke hisaab se choose karo

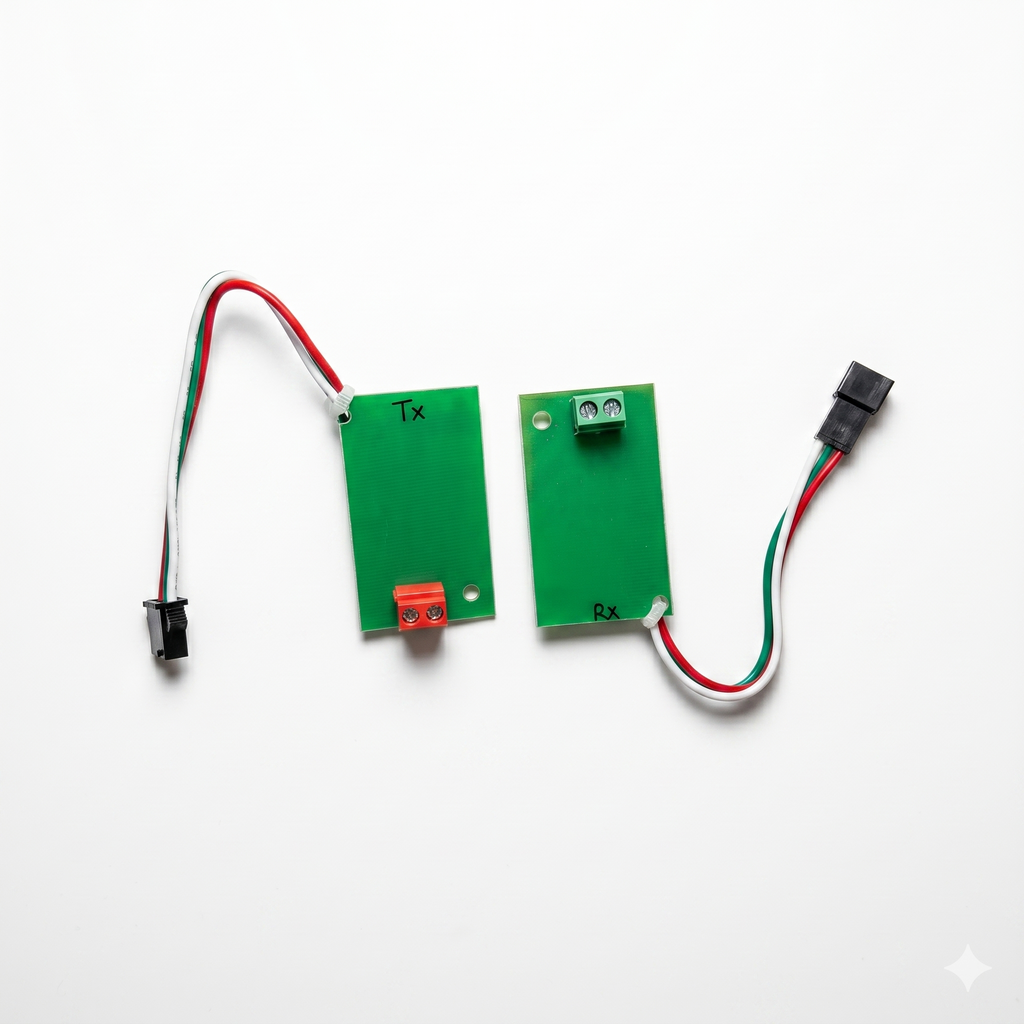

- Transmitter + Receiver: ek pair mein kaam karta hai — transmitter controller end pe, receiver LED strip end pe
- Compatible: WS2812, WS2811, 1903 IC pixel LEDs ke saath
- Best For: T8000 building decoration, long cable runs, multi-port large setups
Which Variant to Choose?
| Variant | Use |
|---|---|

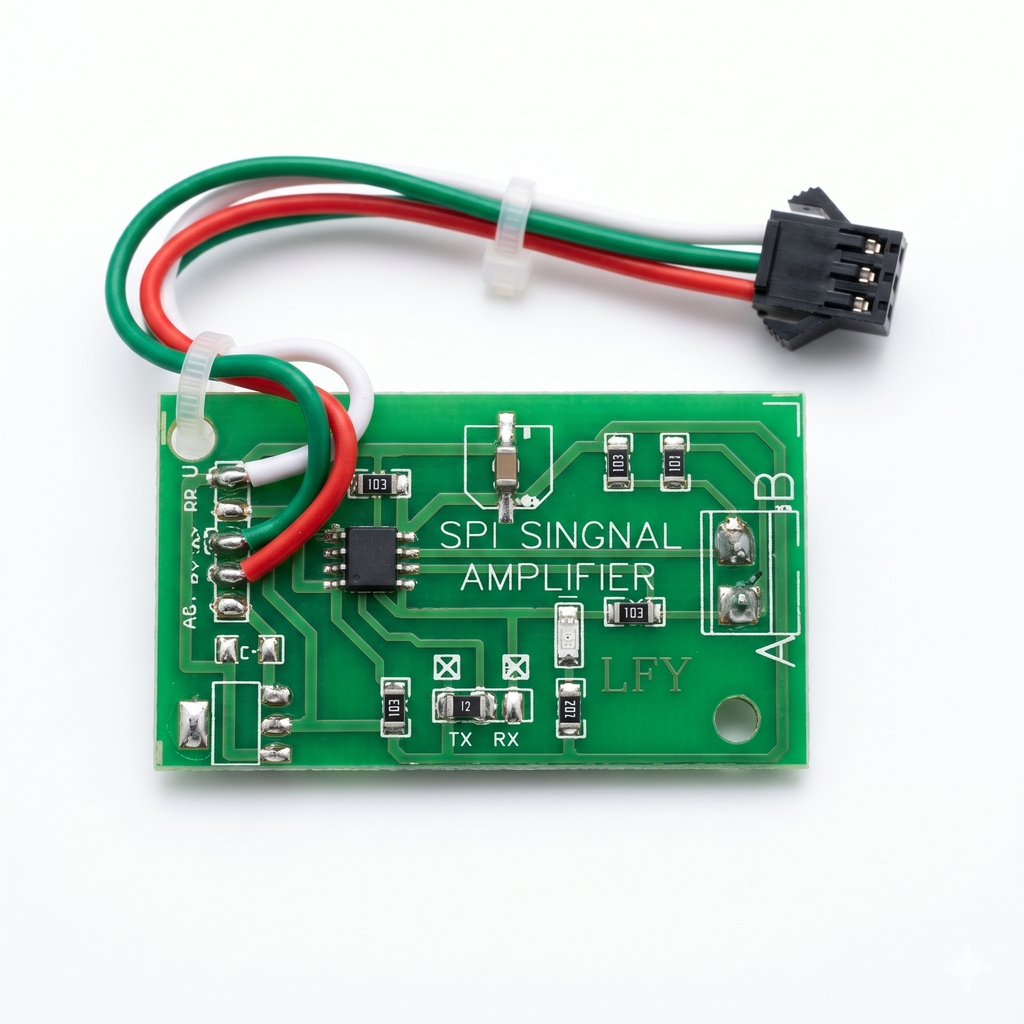

| 5V Transmitter | Controller side pe lagao (5V setups) |

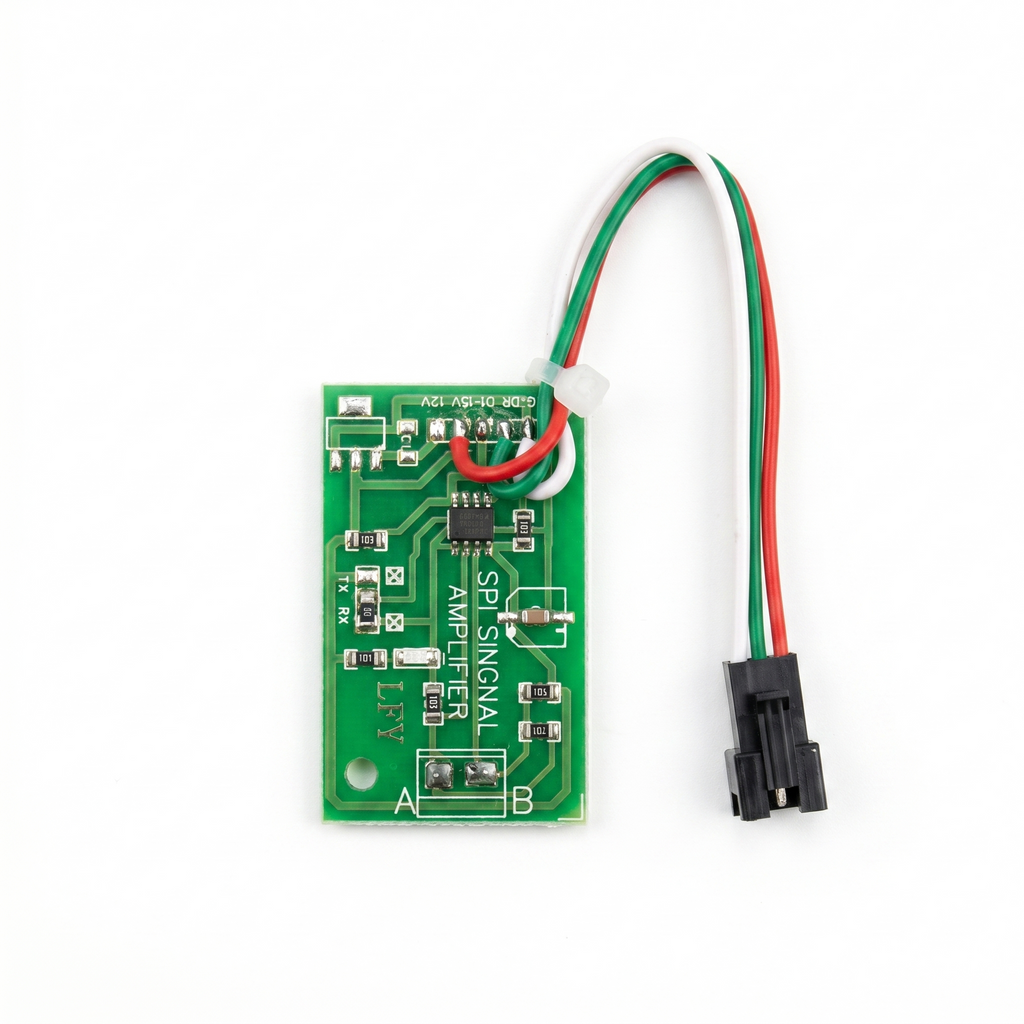

| 5V Receiver | LED strip side pe lagao (5V setups) |

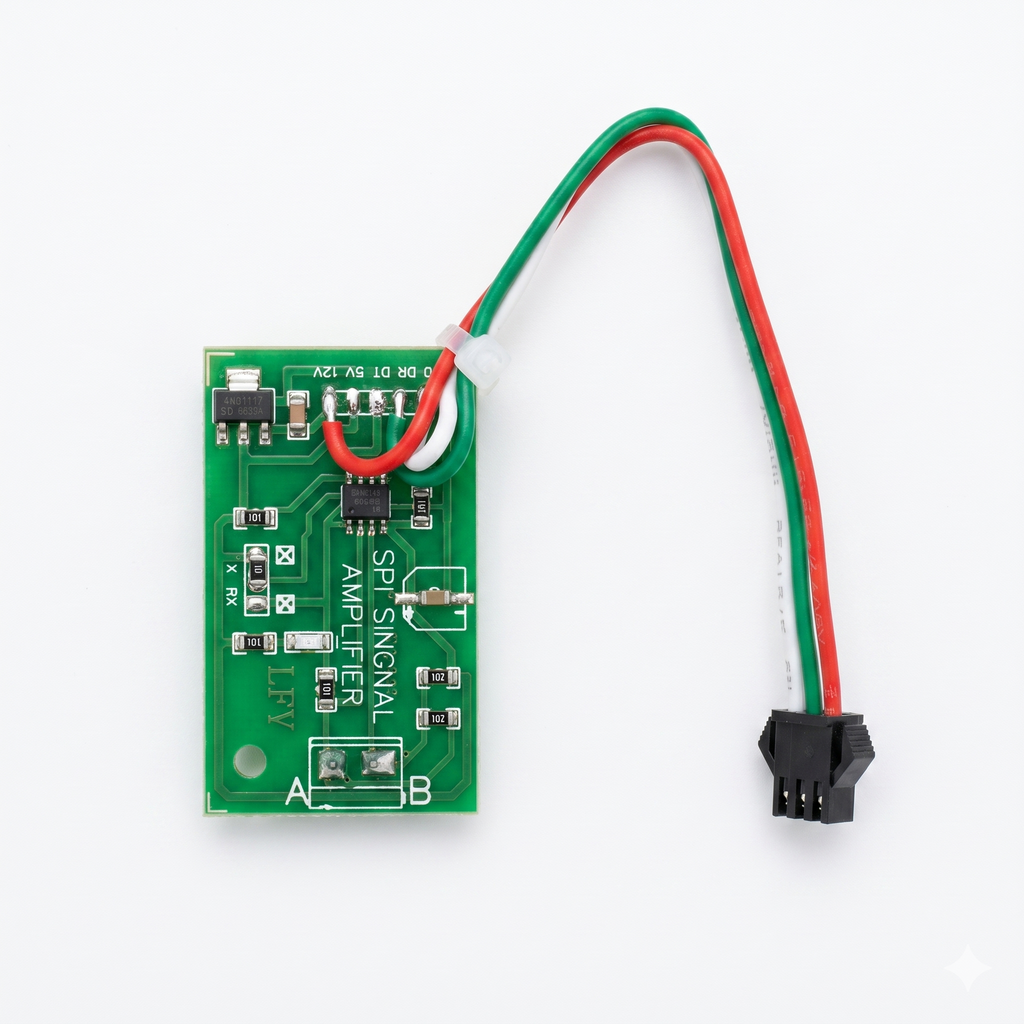

| 12V Transmitter | Controller side pe lagao (12V setups) |

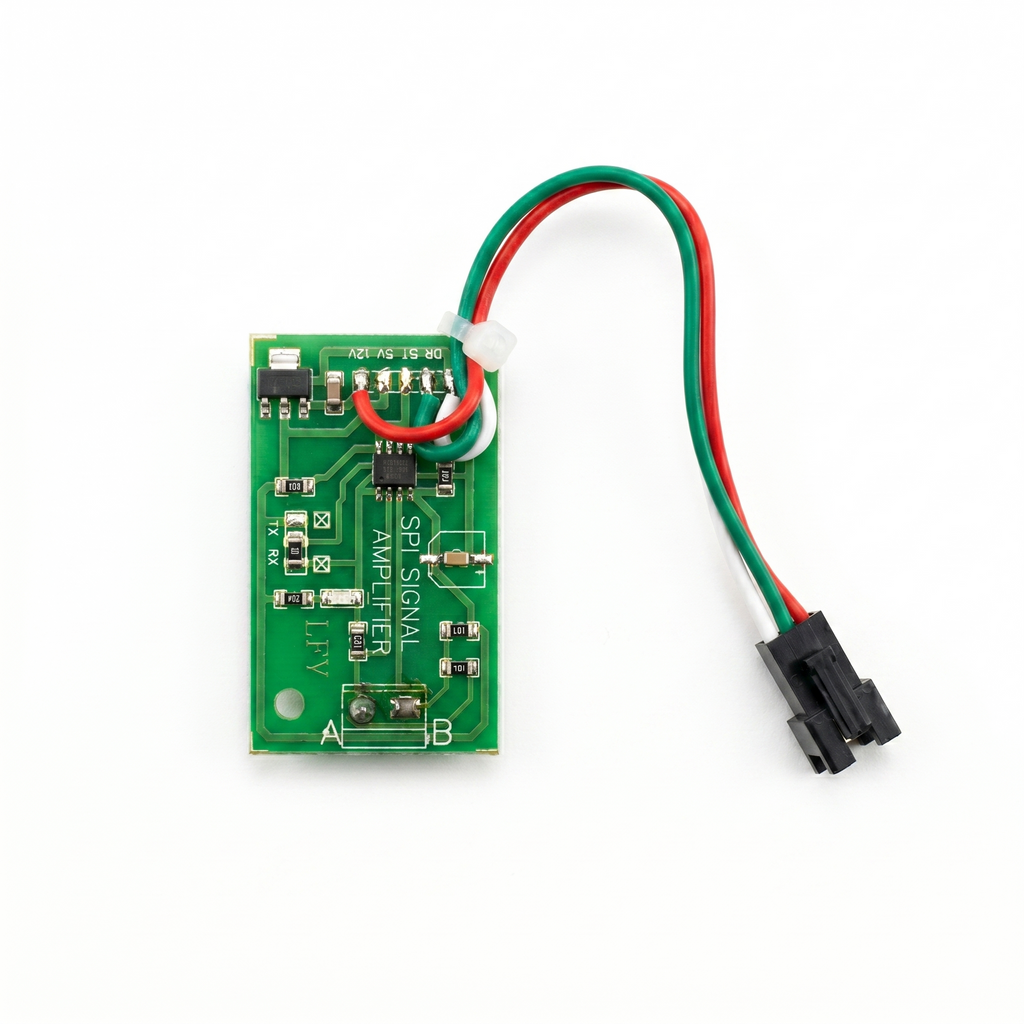

| 12V Receiver | LED strip side pe lagao (12V setups) |
Note: Ek complete amplifier pair ke liye ek Transmitter + ek Receiver dono order karo.
Wiring Diagrams
Data Amplifier Wiring:
Data Splitter Wiring:
Meri pixel LEDs flicker kar rahi hain — kya ye fix karega?
Haan. Jab controller ka data signal long cable ya interference ki wajah se weak ho jaata hai to LEDs flicker karte hain. Ye amplifier signal ko boost karke flickering fix karta hai.
Transmitter aur Receiver dono ek saath lene padte hain?
Haan. Complete amplifier pair ke liye ek Transmitter + ek Receiver dono chahiye. Transmitter controller side pe, Receiver LED strip ke paas.
5V ya 12V — kaun sa loon?
Apne LED setup ke voltage ke hisaab se. WS2812 ke liye 5V, 12V pixel LEDs ke liye 12V variant lo.
Kya ye T8000 ke saath kaam karta hai?
Haan, T8000 building decoration setups mein jab 4-6 ports ke baad signal weak ho jaata hai, wahan ye amplifier best solution hai.
Data Splitter mode mein kaise use karein?
Ek controller ke output ko multiple LED segments pe split karna ho to Splitter mode use karo. Wiring diagram product page pe available hai.
