▶️ Watch: P10 Single Colour SMD LED Display Module Demo
P10 Single Colour LED Module scrolling text sign, advertisement board ya digital clock banane ka sabse affordable aur easy way hai. 5 colours mein available — Red, Green, Yellow, White, Blue. 16×32 dot matrix hai. HD-W2 ya HD-W3 WiFi controller se phone se directly program ho jaata hai.
| Specification | Details |
|---|---|
| Pixel Pitch | 10 mm |
| Matrix | 16×32 dots per module |
| Module Size | 320×160 mm (standard) |
| Interface | HUB12 / HUB08 |
| Available Colours | Red, Green, Yellow, White, Blue |
| Application | Advertisement boards, scrolling text, clock, shop signs |
| Compatible Controllers | HD-W2, HD-W3, HD-W3A, HD-W04 (WiFi) + USB type |
| Brand | Koshi Electronics |

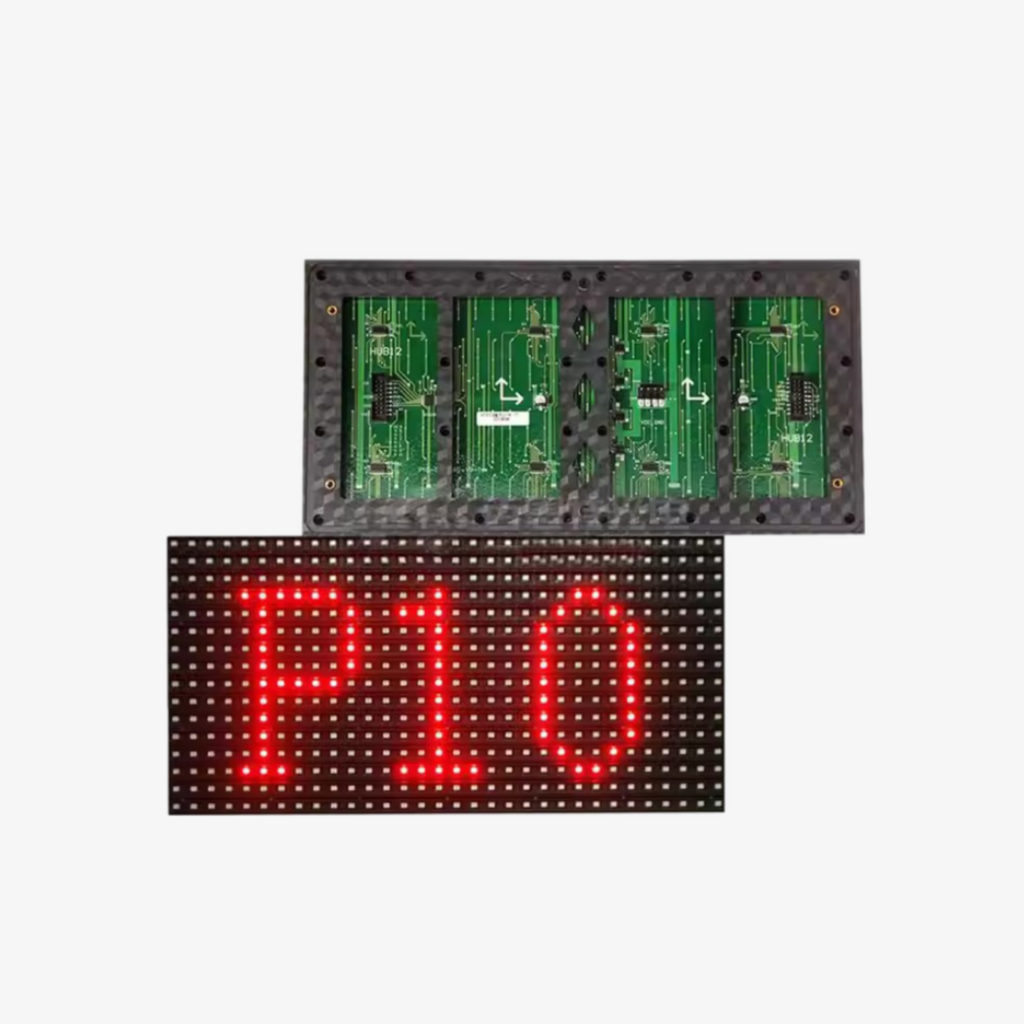

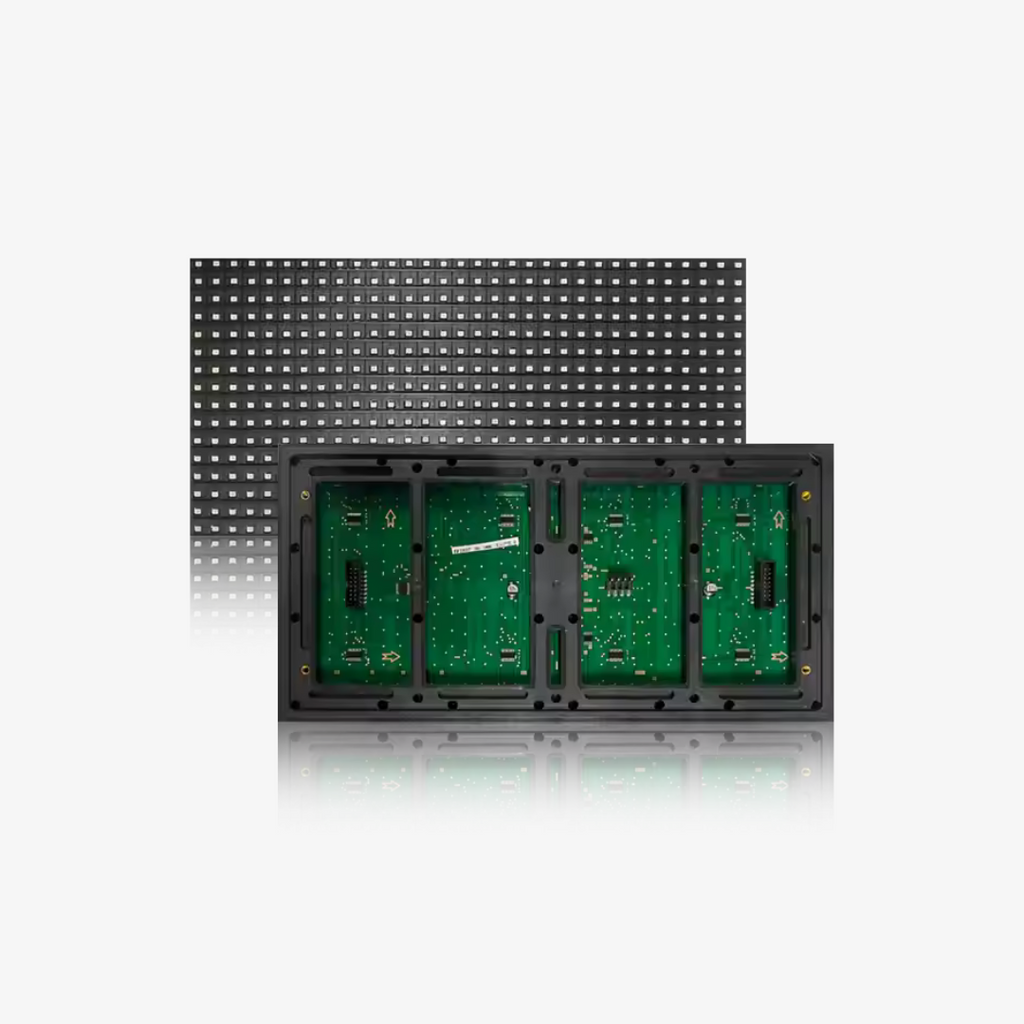

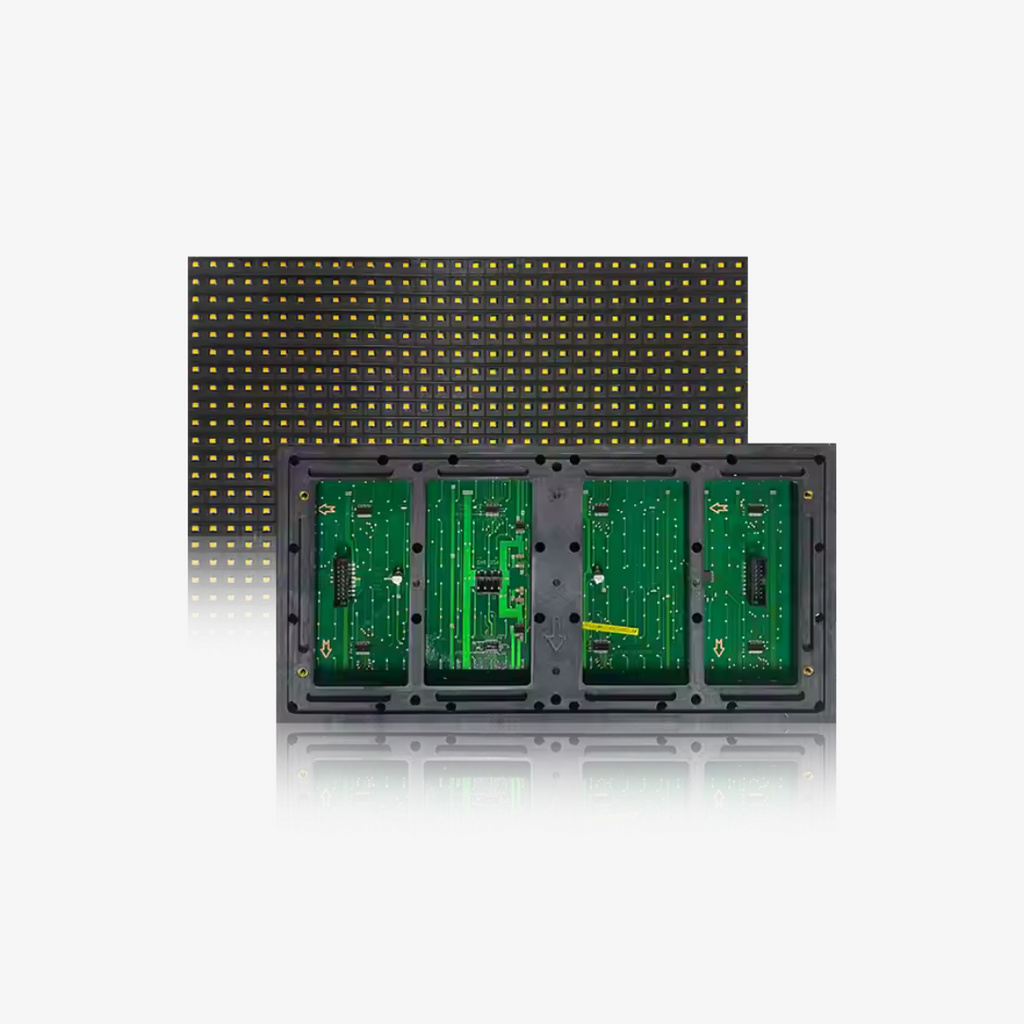

P10 SINGLE COLOUR SMD LED DISPLAY MODULE — SCROLLING TEXT PANEL
Koshi Electronics ka P10 Single Colour LED Module advertisement boards, scrolling text displays, shop signs aur clock displays banane ka sabse popular aur affordable way hai. 5 colours mein available hai — Red, Green, Yellow, White aur Blue. Har module mein 16×32 dot matrix hai.
⚠️ Note: BLUE SMD ka stock abhi nahi hai — baaki 4 colours available hain.

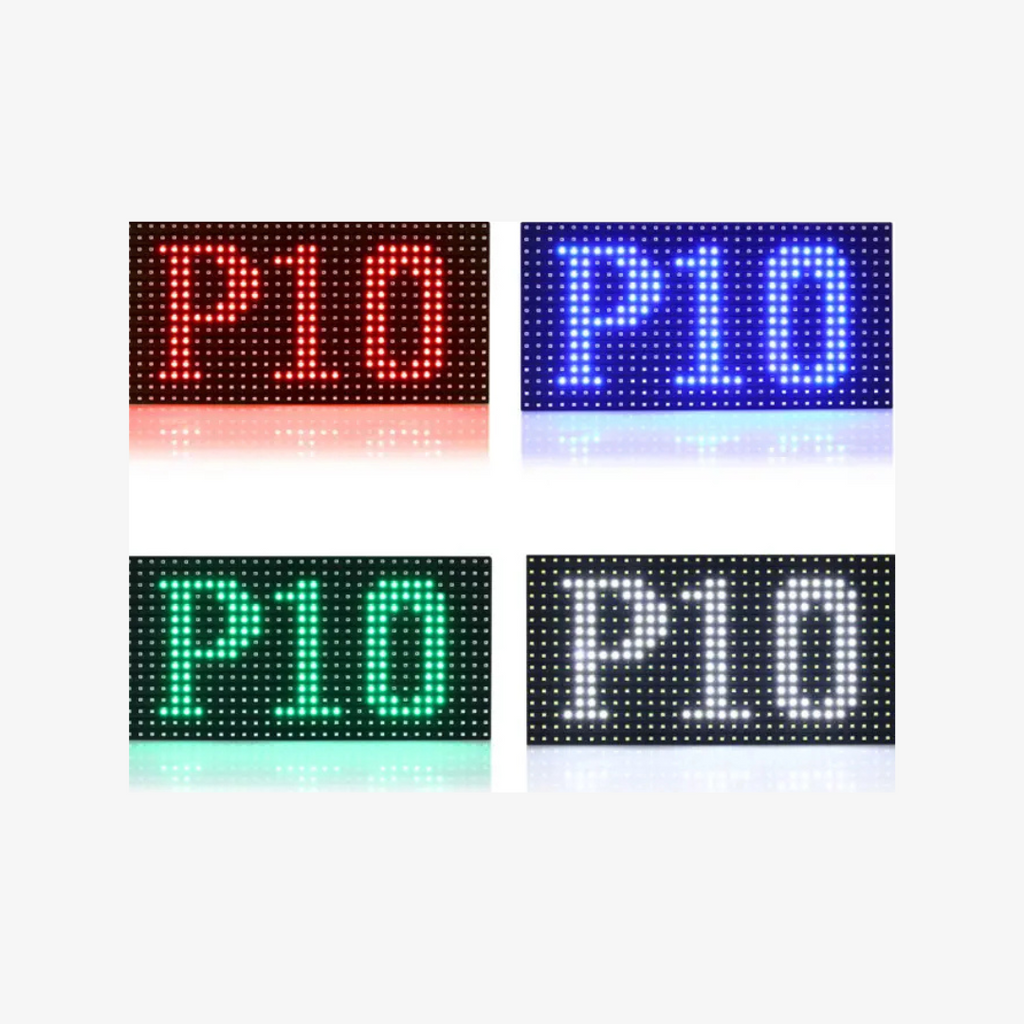

Available Colours
| Colour | Stock |
|---|---|
| Red SMD | ✅ Available |
| Green SMD | ✅ Available |
| Yellow SMD | ✅ Available |
| White SMD | ✅ Available |
| Blue SMD | ⚠️ Out of Stock |
Applications
- Advertisement signboards
- Scrolling text displays
- Digital clock boards
- Weather report displays
- Shop name boards
- School/college notice boards
Compatible Controllers
HD-W2, HD-W3, HD-W3A, HD-W04 (WiFi controllers) — phone app ya computer se wirelessly program karo. USB type controllers bhi support karte hain.
Outdoor use ke liye kaun sa colour best hai?
Red sabse zyada visible hota hai outdoor mein aur sun mein bhi clearly dikhta hai. Green bhi achha option hai. White thoda kam visible ho sakta hai direct sunlight mein.
Is module ke liye kaun sa controller chahiye?
HD-W2 ya HD-W3 WiFi controllers best hain — phone app se directly scrolling text set karo. HD-W04 mein brightness + temperature sensors bhi hain.
Ek scrolling text sign ke liye kitne modules chahiye?
1 module se 1 row of text (320mm wide). Longer text ke liye zyada modules chain mein connect karo.
Kya ye RGB colour display kar sakta hai?
Nahi, ye single colour module hai. Full RGB colour ke liye P10 RGB module dekhein.
HUB12 aur HUB08 mein kya fark hai?
Ye module ke connector type hain. HD-W2/W3 controllers dono ke saath compatible hain — apne module ke connector dekh ke matching controller lo.
