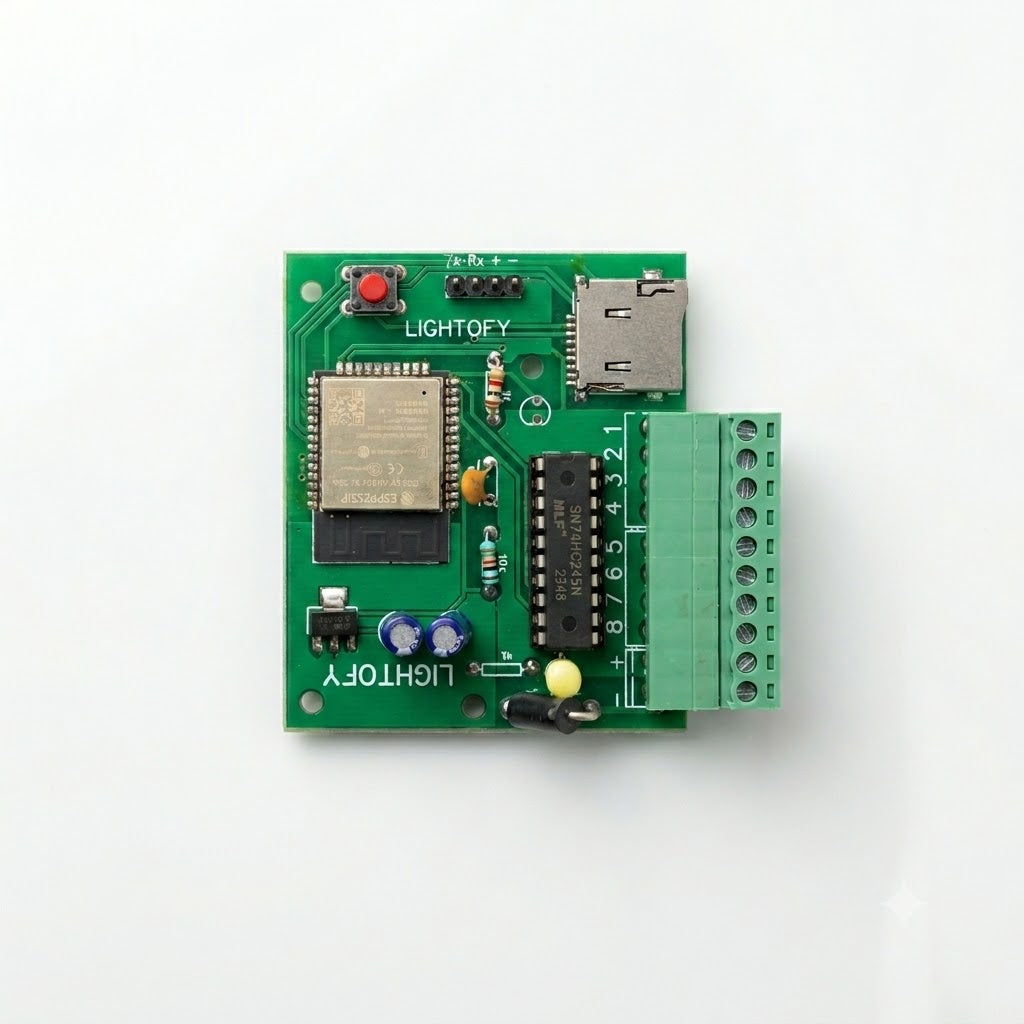

The Koshi WLED LITE is a professionally built, Made-in-India ESP32 controller pre-flashed with the world-famous open-source WLED software. Control your pixel LEDs from your phone browser — 180+ effects, presets, segments, and even Alexa/Google voice control. With 8 level-shifted outputs (74AHCT245), reverse-polarity protection, and a clean common GND terminal design, the LITE gives you flicker-free signals that cheap imported boards simply can't match — at just ₹599. 🇮🇳
📄 Download the full WLED LITE User Manual (PDF) — complete setup, wiring, pinout & troubleshooting.
📺 Complete Video Tutorial (Hindi) — Unboxing Se Effects Tak!
Wiring, WiFi setup, LED settings, effects — sab kuch step-by-step Hindi mein dekhiye:
📖 WLED Pehli Baar Use Kar Rahe Hain? Ye Guides Padhiye!
WLED kya hai, phone se setup kaise hota hai, effects–segments–presets kaise chalate hain — humne real screenshots ke saath step-by-step Hindi guides banayi hain. Order se pehle ya baad me, aapke har sawaal ka jawab inme milega:
📚 Part 1: WLED Kya Hai? Beginner Guide →
🚀 Part 2: Advanced Guide — Alexa, Timers, Music Sync, 2D Matrix →
⚡ Koshi WLED LITE vs PRO — Which One Is For You?
| Feature | ⭐ WLED LITE ₹699 |
WLED PRO ₹1,499 |
| Input Voltage | 5V DC | 5V–24V DC (wide range) |
| Power Protection | Reverse polarity | Reverse polarity + Surge (TVS) |
| Data Outputs | 8 (Data only, common GND) | 8 (Data + GND tap per output) |
| Level Shifter (zero flicker) | ✅ 74AHCT245 | ✅ 74AHCT245 |
| Music Reactive 🎵 | ➖ | ✅ Onboard INMP441 digital mic |
| Relay — SMPS Auto ON/OFF 🔌 | ➖ | ✅ |
| IR Remote Support 📺 | ➖ | ✅ 24-key remote |
| Sensor / Expansion Port 🔧 | ➖ | ✅ LDR / PIR / DIY |
| Onboard Button + Status LED | ✅ | ✅ |
| Pre-flashed WLED + OTA | ✅ | ✅ |
| Best For | 5V pixels, thoran, home decor | Big 12V/24V installs, music-reactive, events & automation |
👉 Starting with 5V pixels? The WLED LITE is your perfect first smart controller. Need 12V/24V, music reactive, relay automation, IR remote and sensors? Check out the WLED PRO (₹1,499) — the complete package.
🤔 DIY ESP32 ya imported boards se compare karna hai? Humara imaandaar comparison padhiye: Best WLED Controller in India (2026) →
🚀 Key Features
- Original Espressif ESP32 — strong WiFi range, dual-core performance
- Pre-flashed WLED — connect to "KOSHI_WLED" WiFi and start in 2 minutes; no app download
- 8 data outputs — run multiple strips/zones from one board
- 74AHCT245 level shifter onboard — proper 5V data signal on all 8 outputs = zero flicker (cheap boards skip this!)
- Common GND terminal — simple, tidy wiring for all your strips
- Reverse polarity protection — wiring mistake won't kill the board
- 5V DC input — perfect match for WS2812B / 5V pixel setups
- Onboard boot button — doubles as a WLED control button: short press ON/OFF
- Status LED — WiFi status at a glance
- OTA updates — update WLED over WiFi, no cables ever needed
- 180+ built-in effects, presets, playlists, segments, schedules
- Works with Alexa, Google Home and Home Assistant
- Supports WS2811, WS2812B, UCS1903, SK6812 and more
- Designed & manufactured in India by Koshi Electronics 🇮🇳
🎯 Best For
- 5V pixel LED thoran and festival decoration (Diwali, Christmas, Ganpati)
- Smart home LED setups — rooms, TV backlight, ceiling cove
- Multi-zone installs needing many outputs from one controller
- First-time smart LED users and DIY makers
📦 What's In The Box
- 1 × Koshi WLED LITE Controller (pre-flashed, tested & QC passed)
- 1 × Quick Start Card (Hindi + English)
💡 Kitni LEDs Chala Sakte Hain? (LED Capacity Guide)
Ye sabse zyada poocha jaane wala sawaal hai — iska poora jawab yahan hai:
| Total LEDs (all 8 outputs) | Performance |
| Up to 500 LEDs | ⚡ 60+ FPS — ekdum smooth, sabse best |
| 500 – 1,000 LEDs | ✅ ~40 FPS — smooth, recommended range |
| 1,000 – 1,500 LEDs | 👍 ~25 FPS — chalega, effects thode slow |
| 1,500+ LEDs | ⚠️ Effects lag karenge — 2 controllers use kariye (WLED sync feature se dono ek saath chalenge) |
Per output: 300–500 LEDs tak aaram se chalti hain — koi hard limit nahi. Aap chahein toh ek output par 500 aur baaki par kam bhi rakh sakte hain.
🚀 8 Outputs ka asli fayda — LEDs baant kar lagaiye!
WLED saare outputs par ek saath (parallel) data bhejta hai. 800 LEDs ek hi output par = slow effects. Wahi 800 LEDs ko 8 outputs par 100-100 baant dijiye = 8 guna tez aur smooth! Isi liye humne 8 outputs diye hain — zyada LEDs bhi, aur speed bhi. Bonus: har output ka alag effect/zone bhi bana sakte hain.
⚡ Asli limit power hoti hai, controller nahi: Har LED full white par lagbhag 60mA leti hai (5V par). Matlab 500 LEDs ≈ 30A ka SMPS. Iska hisaab WLED khud bhi bata deta hai — Config → LED Preferences mein total LEDs daaliye, recommended power supply dikh jayega. Aur lambi strips mein har 3–5 meter par power injection dijiye, warna aakhri LEDs dim/peeli dikhengi.
📋 Specifications
| Processor | ESP32 (original Espressif) |
| Firmware | WLED v16.0.1 (pre-flashed, OTA updatable) |
| Input Voltage | 5V DC only |
| Protection | Reverse polarity protection |
| Data Outputs | 8 — level-shifted, data-only with common GND terminal |
| LED Capacity | 300–500 LEDs per output; up to ~1,000 total for smooth performance |
| Level Shifter | 74AHCT245 — true 5V logic on all outputs |
| Controls | Onboard button (ON/OFF) + status LED + app + voice |
| Supported ICs | WS2811, WS2812B, UCS1903, SK6812 and more |
| Default WiFi / Password | KOSHI_WLED / koshi1234 — setup guide dekhiye |
| OTA Update Password | koshiota (default — change after setup) |
| Advanced Features Guide | Alexa, timers, sync, 2D matrix — Part 2 guide padhiye |
| Control Page | http://4.3.2.1 (opens automatically). For preset upload & advanced settings, open http://4.3.2.1 in Chrome or Edge instead of the auto-popup window. |
| Warranty | 6 months* (manufacturing defects only) |
🔧 Output Pinout Reference (Advanced Users)
All 8 outputs come pre-configured in WLED — no setup needed. This mapping is for reference if you ever reset or reconfigure the board:
| Output Terminal | ESP32 GPIO |
| Output 1 | GPIO 17 |
| Output 2 | GPIO 16 |
| Output 3 | GPIO 4 |
| Output 4 | GPIO 15 |
| Output 5 | GPIO 2 |
| Output 6 | GPIO 13 |
| Output 7 | GPIO 12 |
| Output 8 | GPIO 14 |
| Onboard Button | GPIO 0 (short press = ON/OFF) |
| Status LED | GPIO 27 (WiFi status) |
⚙️ How It Works
- Connect your pixel strip's Data wire to any of the 8 data outputs and its GND wire to the common GND terminal. Connect 5V power to the input terminals.
- Power on and connect your phone to the WiFi network KOSHI_WLED (password koshi1234). The control page opens automatically (or open http://4.3.2.1).
- All 8 outputs come pre-configured with 50 LEDs each — just update the LED count and IC type to match your strips in Config → LED Preferences.
- Enjoy 180+ effects, colours, presets and playlists — all from your phone. Short-press the onboard button for quick ON/OFF.
- (Recommended) Connect WLED to your home WiFi (Config → WiFi Setup) for Alexa/Google voice control and OTA updates — and change the default passwords from Config → Security & Updates.
🎥 Poora setup video mein dekhna hai? Upar diya gaya Hindi video tutorial dekhiye — unboxing se effects tak sab live! | 📸 Har step ka screenshot chahiye? Part 1: Beginner Guide → | 🚀 Alexa, timers, music sync seekhne ke liye: Part 2: Advanced Guide →
🔄 Firmware Update — Zaroori Jaankari / Important
✅ Naye boards ab WLED v16 ke saath aate hain. In par v16 → v16 ke updates WiFi (OTA) se bilkul normally chalte hain — koi cable nahi chahiye.
⚠️ Lekin agar aapke board mein purana WLED v0.15 hai (pehle khareeda hua board), toh use WiFi se v16 par update MAT kariye — board permanently kharab (brick) ho sakta hai.
Apna version 10 second mein check kariye: WLED page kholiye → Info → wahan firmware ka naam dikhega.
• KOSHI_LITE_v16 → aap v16 par hain, sab theek hai. WiFi updates safe.
• KOSHI_LITE → aap v0.15 par hain. Neeche wali baat aap par laagu hoti hai.
Technical wajah: WLED v16 naye ESP32 core (Arduino-ESP32 2.x / ESP-IDF 4.4) par bana hai, jismein alag bootloader aur partition layout hota hai. OTA update sirf application image badalta hai — bootloader ko replace nahi karta. Isliye purane v0.15 bootloader ke upar v16 image chadhte hi board boot hona band kar deta hai (WiFi/lights dead).
v0.15 se v16 par jaane ka sahi tarika: board ko USB-to-TTL programmer se, onboard PROG header ke through flash karna padta hai (pehle Erase, phir full factory image @ 0x0). Ye ek baar ka kaam hai — uske baad v16 → v16 updates WiFi se normally chalte hain. Zaroorat ho toh humein WhatsApp kariye — hum guidance ya pre-flashed board de denge.
In English: New boards now ship with WLED v16, where OTA (WiFi) updates within the v16 series work normally. If your board is still on the older v0.15 firmware, do NOT update it to v16 over WiFi — v16 uses a newer bootloader that OTA cannot replace, so the board will fail to boot. Check your version under Info in the WLED page; moving a v0.15 board to v16 requires a USB programmer via the PROG header (erase, then write the full image at 0x0).
❓ Frequently Asked Questions
Per output kitni LEDs chala sakte hain?
Har output par 300–500 LEDs tak aaram se chalti hain. Saare 8 outputs milakar 1,000 LEDs tak best smooth performance milti hai (~40 FPS), aur 1,500 tak bhi chal jata hai. Iske upar 2 controllers use kariye — WLED ke sync feature se dono bilkul ek saath chalenge.
Saari LEDs ek hi output par laga dein toh?
Chalengi, lekin effects slow ho jayenge. WLED saare outputs par ek saath (parallel) data bhejta hai — isliye 800 LEDs ko 8 outputs par 100-100 baant dena 8 guna tez hota hai. Yahi 8 outputs ka asli fayda hai. Zone-wise control (har output ka alag effect) bonus mein milta hai!
Kitna bada SMPS chahiye?
Har LED full white par lagbhag 60mA leti hai — matlab 500 LEDs ≈ 30A. Exact hisaab WLED khud bata deta hai: Config → LED Preferences mein total LEDs daaliye, recommended power supply dikh jayega. Tip: SMPS hamesha zaroorat se 20–30% bada lijiye.
Lambi strip mein aakhir ki LEDs dim/peeli kyun dikhti hain?
Ye voltage drop hai — lambi strip mein aakhir tak poora voltage nahi pahunchta. Ilaaj: har 3–5 meter par power injection dijiye (SMPS se seedha strip ke beech/aakhir mein +/− wires). Controller ka isse koi lena-dena nahi.
What is the WiFi name and password?
The board creates its own WiFi network KOSHI_WLED with password koshi1234. For firmware (OTA) updates, the default password is koshiota. You can change both anytime from Config → Security & Updates — recommended after first setup.
Do I need to install an app?
No — everything runs in your phone browser. The official WLED app is optional.
LITE ya PRO — which one should I buy?
If your setup is 5V pixels (thoran, home decor) — LITE is perfect. If you need 12V/24V strips, built-in music reactive mic, relay-based SMPS auto on/off, IR remote or sensors — go for the PRO. Baaki options se comparison ke liye: Best WLED Controller in India →
Does it have a proper level shifter?
Yes — a 74AHCT245 level shifter gives true 5V logic on all 8 outputs for flicker-free, stable data. This is the #1 thing cheap imported boards skip.
Why 8 outputs?
Splitting your pixels across outputs means shorter data runs, higher frame rates and easier zone-wise control (segments per output).
How do I connect my strip's GND?
All strips share the board's common GND terminal — connect each strip's GND wire there (or to your power supply's GND, since they're the same ground). Simple and tidy.
Can I run 12V strips on the LITE?
No — the LITE is a 5V-only board. For 12V/24V strips, the WLED PRO accepts 5–24V input.
Preset file upload ya settings page kaam nahi kar raha?
Jab aap board ke WiFi se judte hain toh ek popup window apne aap khulti hai — usme file upload block hota hai (ye phone/laptop ki limitation hai, board ki nahi). Us popup ko band kariye aur Chrome ya Edge kholkar address bar mein http://4.3.2.1 type kariye. Ab sab kuch normal chalega.
How do I update the software?
Naye boards (WLED v16): seedha WiFi/OTA se — koi cable nahi chahiye. OTA password (default: koshiota) Config → Security & Updates mein daaliye. Purane boards (WLED v0.15): unhe WiFi se v16 par MAT le jaaiye — major version ka OTA bootloader badal nahi sakta, isliye board kharab (brick) ho sakta hai. Uske liye USB programmer chahiye. Apna version Info page par check kariye — poori detail upar "Firmware Update — Zaroori Jaankari" section mein hai.
Alexa, automatic timers, music sync kaise use karein?
Ye sab LITE pe bhi chalte hain! Step-by-step screenshots ke saath seekhiye: WLED Advanced Guide (Part 2) →
WLED bilkul naya hai, kahan se seekhein?
Humari step-by-step Hindi photo-guide padhiye — WiFi connect se effects tak sab kuch: WLED Kya Hai? Complete Beginner Guide → Aur koi sawaal ho toh WhatsApp kariye: 7004336791
🛡️ Warranty
6-month warranty* on manufacturing defects.
*Warranty covers manufacturing defects only. Not covered: physical damage, water damage, wrong SMPS connection (reverse +/− polarity beyond protection limits), connecting to 12V/24V or 220V AC input, or the controller being exposed to rain, or a board rendered unbootable (bricked) by an unsupported firmware update such as a cross-major-version OTA (e.g. v0.15 to v16). Protect the controller and SMPS from rain (use a rainproof box outdoors).
