HD-WF series HUB75E full-colour LED display controllers — WF1/WF2/WF4 (up to 768×128), WiFi + USB content updates, up to 20 layout areas, text effects & custom borders (WF4 adds temp/humidity/brightness/IR sensors). For shop signs, door screens and stall boards.
| Specification | Details |
|---|---|
| Type | HUB75E Full-Colour LED Display Controller (HD-WF series) |

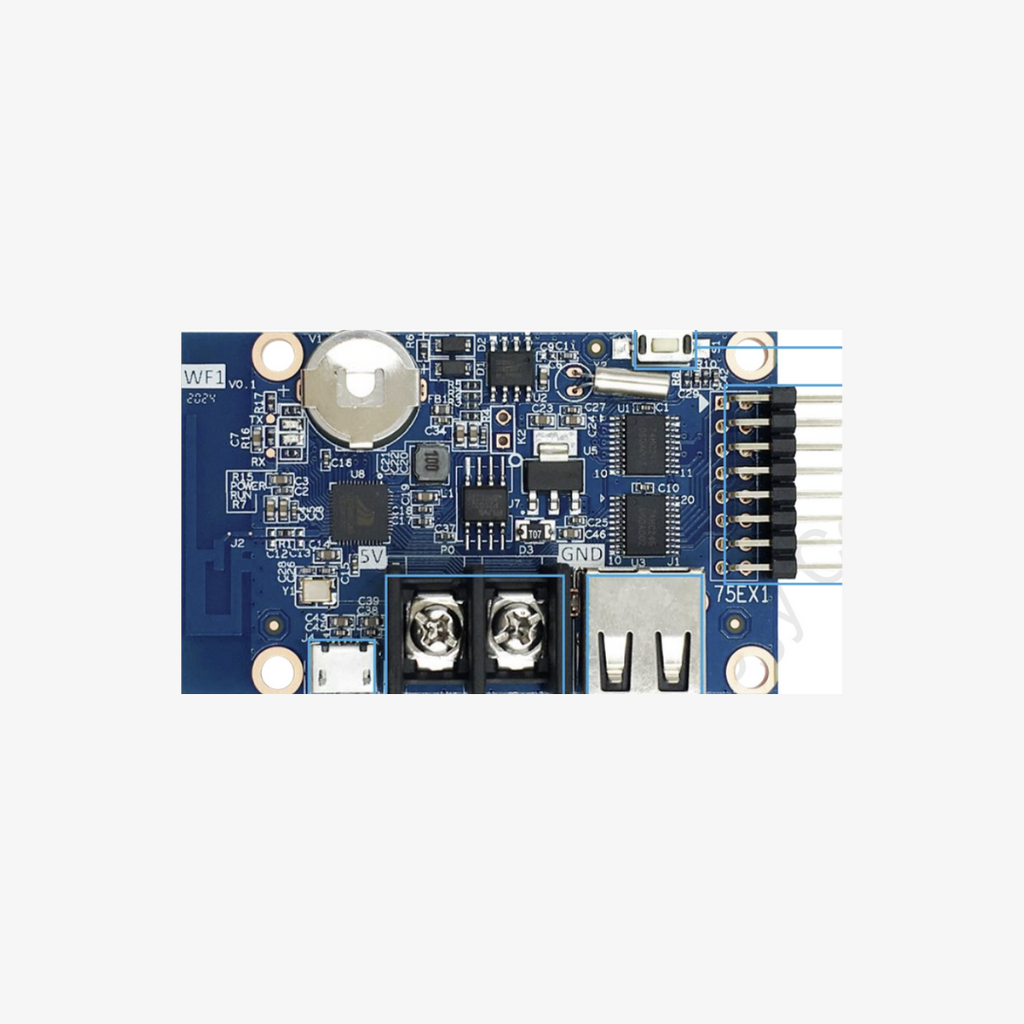

| Models | WF1 (640×32, 1×HUB75) / WF2 (768×64, 2×HUB75) / WF4 (768×128, 4×HUB75) |
| Interface | HUB75E (incl. ICN2038S) |
| Updates | WiFi or USB drive |
| Sensors (WF4) | Temp, Humidity, Brightness, IR |
| Content | Up to 20 free-layout areas, text effects, custom borders |
| Brand | Koshi Electronics |
The HD-WF series are full-colour LED display control cards with the HUB75E interface, for door screens, shop signs, stall boards, car screens and similar displays. Update content two ways — over WiFi or by USB drive.
Model Comparison

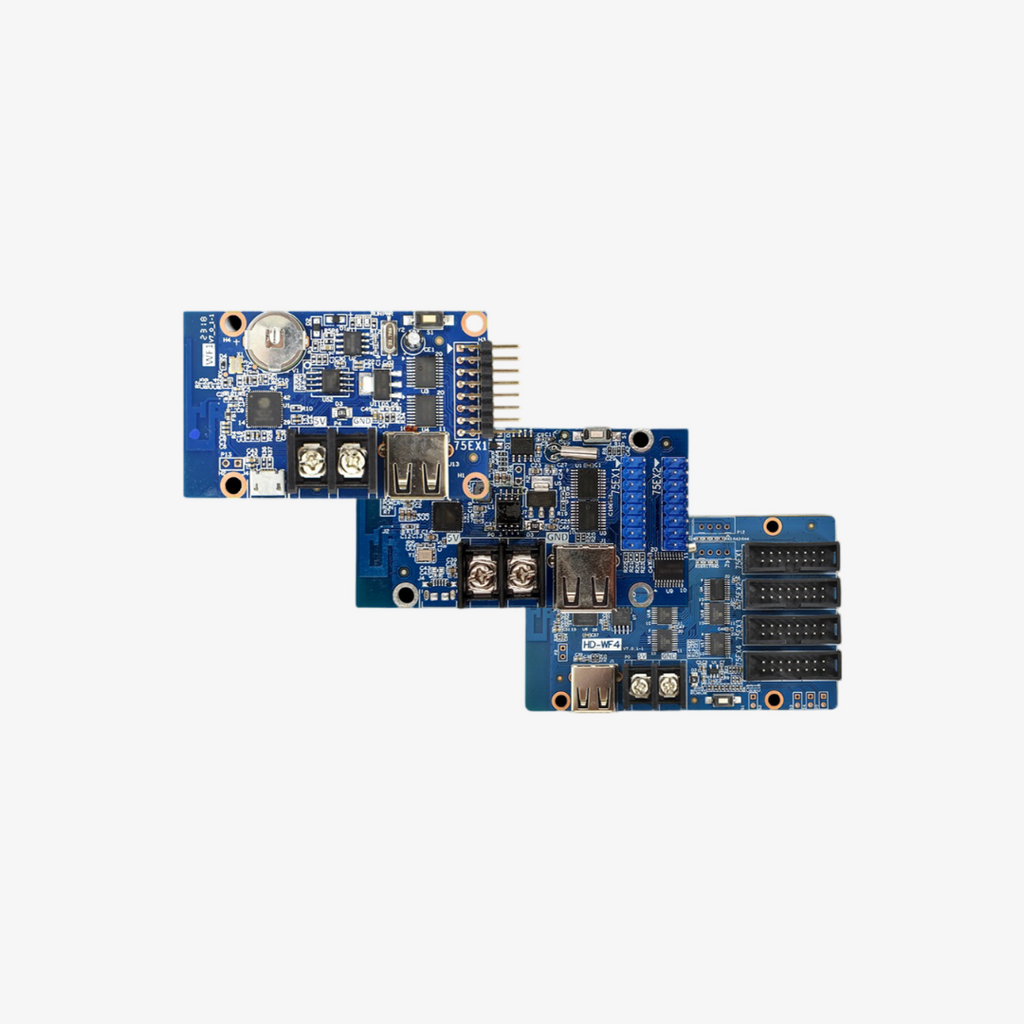

| Model | Loading Capacity | HUB Interface | Sensors |
|---|---|---|---|
| HD-WF1 | 640 × 32 | 1 × HUB75 | — |
| HD-WF2 | 768 × 64 | 2 × HUB75 | — |
| HD-WF4 | 768 × 128 | 4 × HUB75 | Temp, Humidity, Brightness, IR |
Key Features
- HUB75E full-colour module support (incl. ICN2038S)
- Built-in antenna — easier installation
- WiFi + USB program updates
- Program / regional / custom borders
- Multiple text effects; up to 20 free-layout content areas
WF1, WF2 aur WF4 mein farak?
WF1: 640×32 (1×HUB75). WF2: 768×64 (2×HUB75). WF4: 768×128 (4×HUB75) + temp/humidity/brightness/IR sensors.
Content kaise update karein?
Do tarike — WiFi se ya USB drive se.
Kaunse module support karta hai?
HUB75E full-colour modules (ICN2038S included).
Kahan use hota hai?
Door screens, shop signs, stall boards, car screens aur similar full-colour displays.
