▶️ Watch: 36 Channel Smart Stair Light Controller Demo
36-Channel Smart Stair Controller advanced staircase LED controller hai jo 36 steps tak automatic sequential lighting deta hai. Single-colour aur pixel addressable strips (WS2811) — dono support karta hai. 2 motion sensors se direction auto-detect, 4-digit display pe settings. Premium home, hotel aur showroom staircases ke liye professional solution.

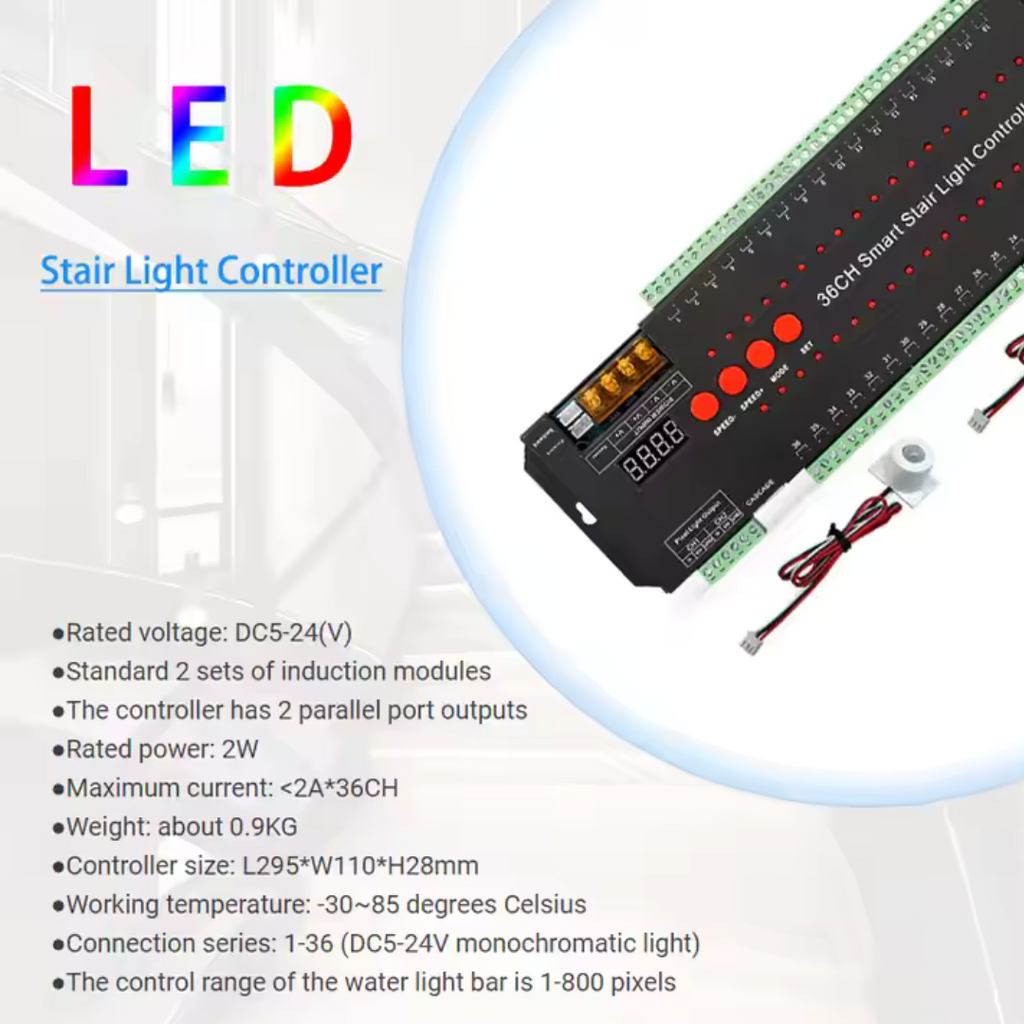

| Specification | Details |
|---|---|
| Channels | 36 (button-adjustable) |
| LED Support | Single-colour + pixel/addressable (WS2811, 1903, WS1812) |
| Sensors | 2 motion sensors (top + bottom, auto direction) |
| Pixel Output | SPI D01/GND + D02/GND (left & right sides) |
| Display | 4-digit onboard display |
| Input Voltage | 12V / 24V DC |
| Function | Sequential auto step lighting with auto-off |
| Best For | Home, hotel, showroom, architectural staircases |
Note: LED strips aur SMPS power supply is product ke saath included nahi hain — alag se purchase karni hogi.

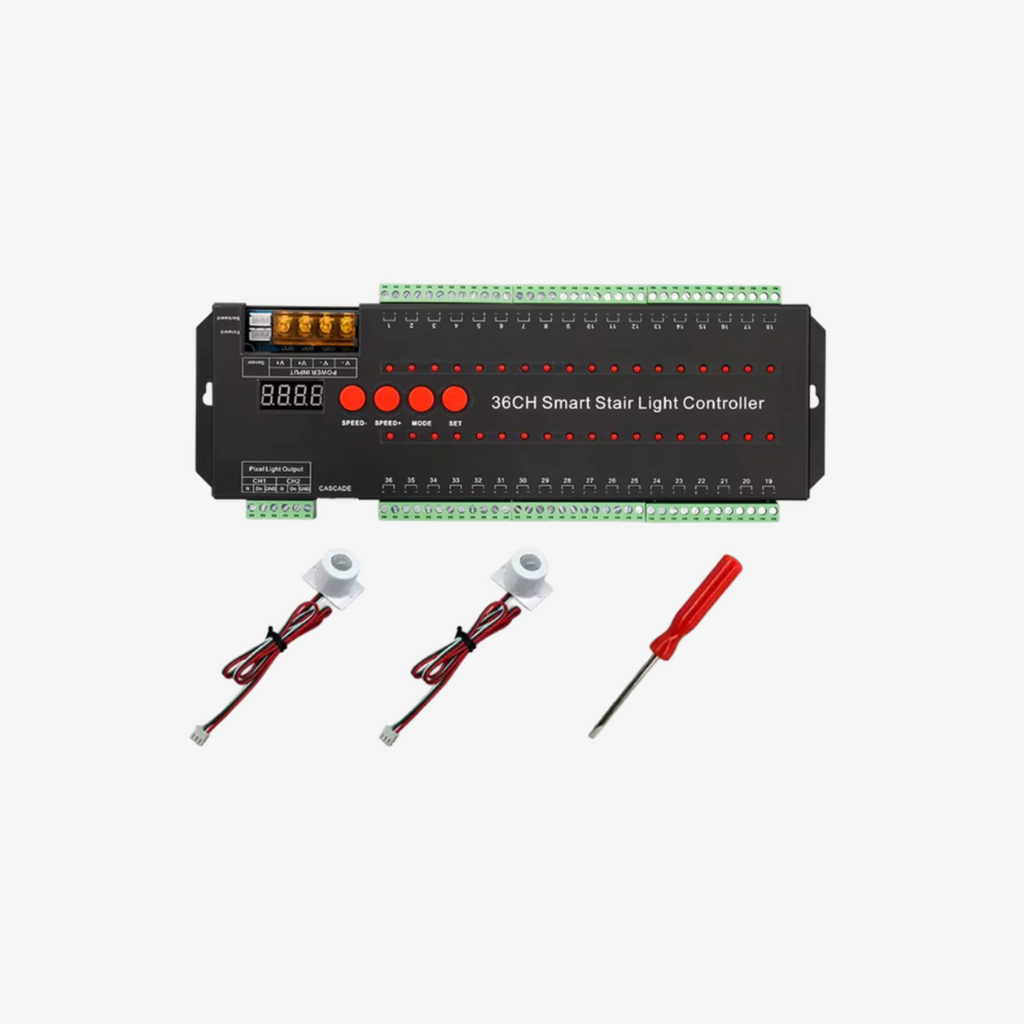

Koshi Electronics ka 36-Channel Smart Stair Light Controller ek advanced staircase LED controller hai jo 36 steps tak sequential automatic lighting deta hai. 2 motion sensors se direction automatically detect hoti hai — jab koi upar ya neeche chalta hai, steps ek-ek karke roshan hote hain aur phir apne aap band ho jaate hain.
Key Features
- 36 Channels: 36 individual steps tak control (button se adjustable).
- Dual LED Support: single-colour strips aur pixel/addressable strips dono (WS2811, 1903, WS1812).
- 2 Motion Sensors: top aur bottom — direction auto-detect.
- SPI Pixel Output: D01/GND aur D02/GND — staircase ke left aur right side ke liye.
- 4-Digit Display: settings clearly onboard display pe.
- Dual Voltage: 12V aur 24V DC dono.
Single-Colour vs Pixel Mode
| Mode | LED Type | Best For |
|---|---|---|
| Single-Colour | 12V/24V single-colour strip | Clean, uniform step lighting |
| Pixel | WS2811 / 1903 / WS1812 addressable | Colour effects aur premium look |
Perfect For
- Premium home staircases
- Hotels aur banquet halls
- Showrooms aur luxury interiors
- Architectural step lighting

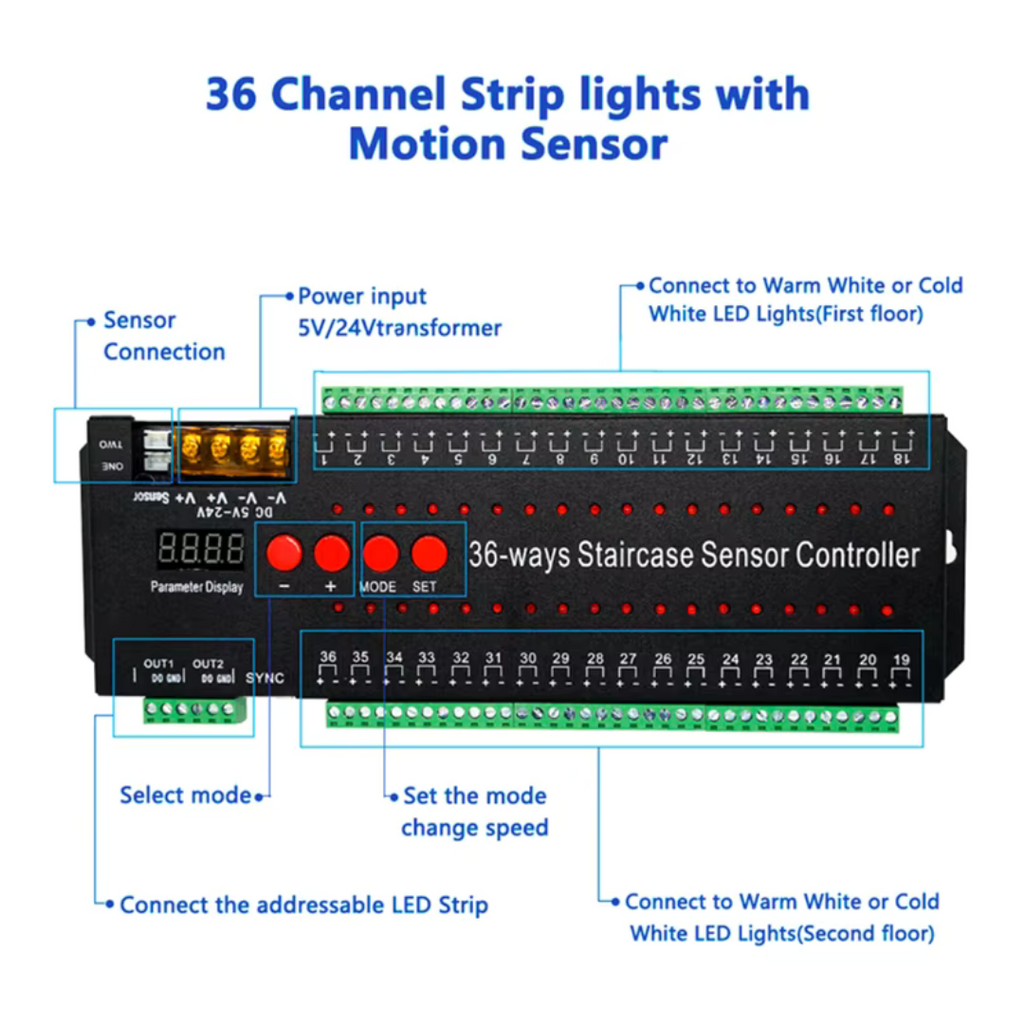

How To Set Up (Wiring)
- Top motion sensor staircase ke upar, bottom sensor neeche lagao.
- Har step ki LED controller ke channel se sequence mein connect karo.
- Pixel mode mein D01 left side aur D02 right side ke liye use karo.

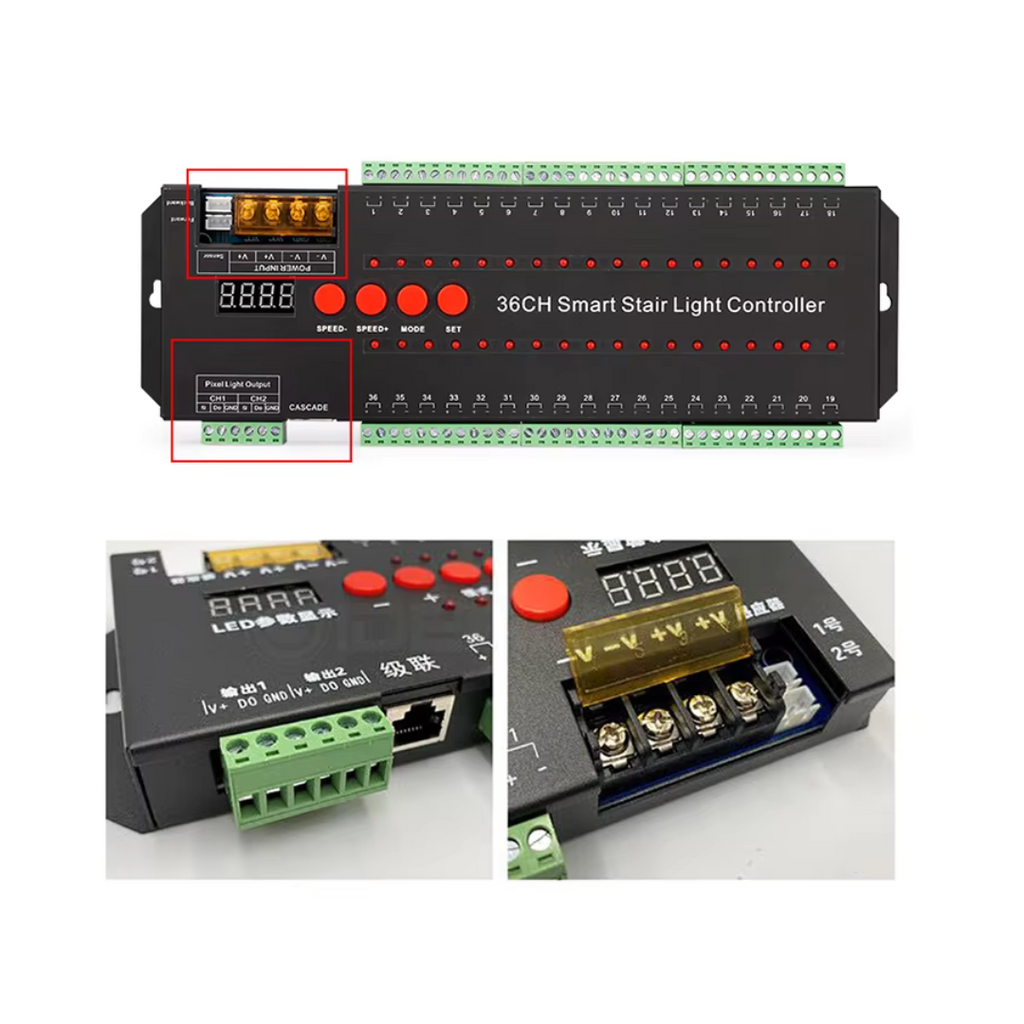

- Power polarity dhyan se: Red wire (V+) SMPS positive pe, Blue/Black wire (V−) SMPS negative pe — reverse mat karo.
- Strip ki voltage ke hisaab se 12V ya 24V SMPS se power do.
Complete Your Setup
Koi help chahiye to WhatsApp +91 93107 85954.
Kitne steps control kar sakta hai?
36 channels tak — yaani 36 steps. Active channel count button se set kar sakte ho.
Kaunsi LED chalti hai?
Dono — single-colour strips aur pixel/addressable strips (WS2811, 1903, WS1812).
Direction kaise detect hota hai?
2 motion sensors (top aur bottom) se. Jis taraf se person aata hai, us direction mein steps sequence mein on hote hain.
12V ya 24V?
Dono support hain — apni LED strip ki voltage ke hisaab se SMPS choose karo.
Power supply included hai?
Nahi — LED strips aur SMPS alag se purchase karni hogi.
Wiring mein kya dhyan rakhu?
Power polarity sahi rakho — Red (V+) SMPS positive pe, Blue/Black (V−) negative pe. Reverse karne se controller damage ho sakta hai.
