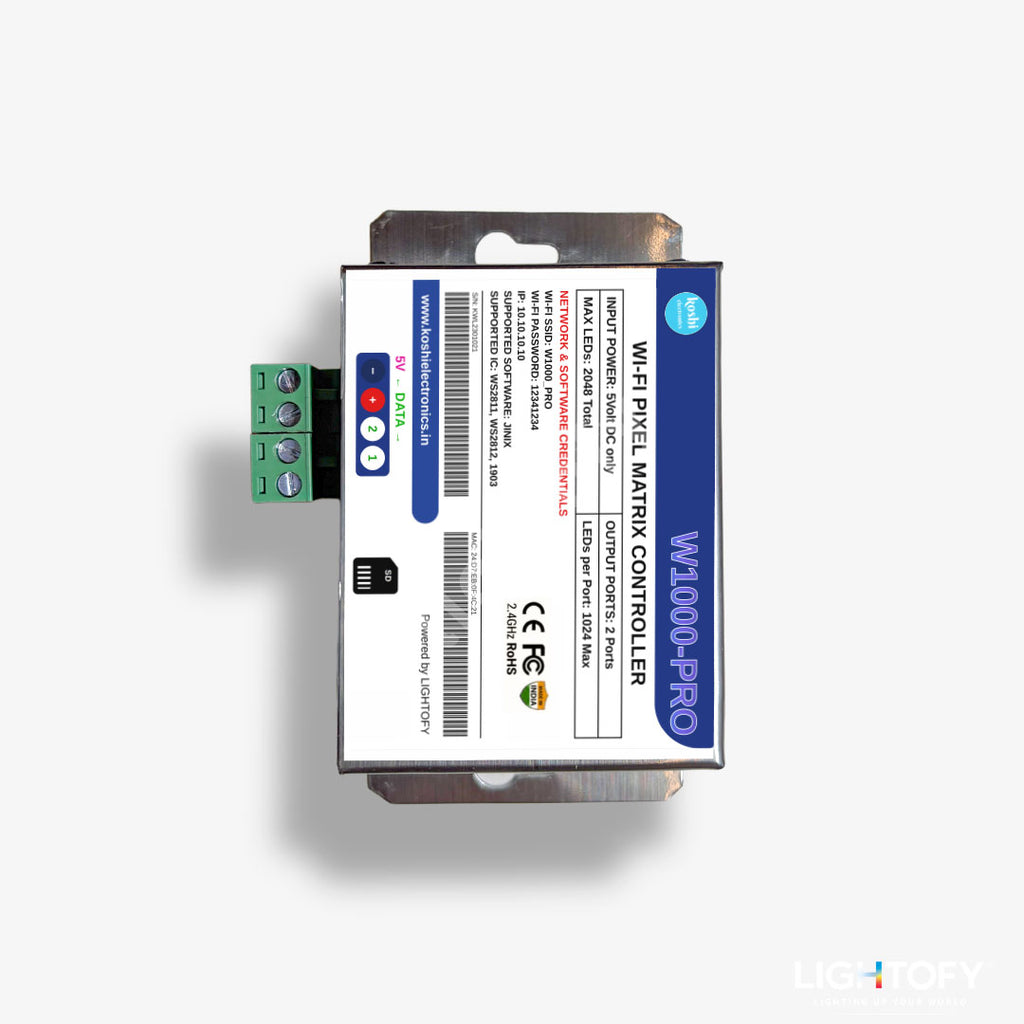

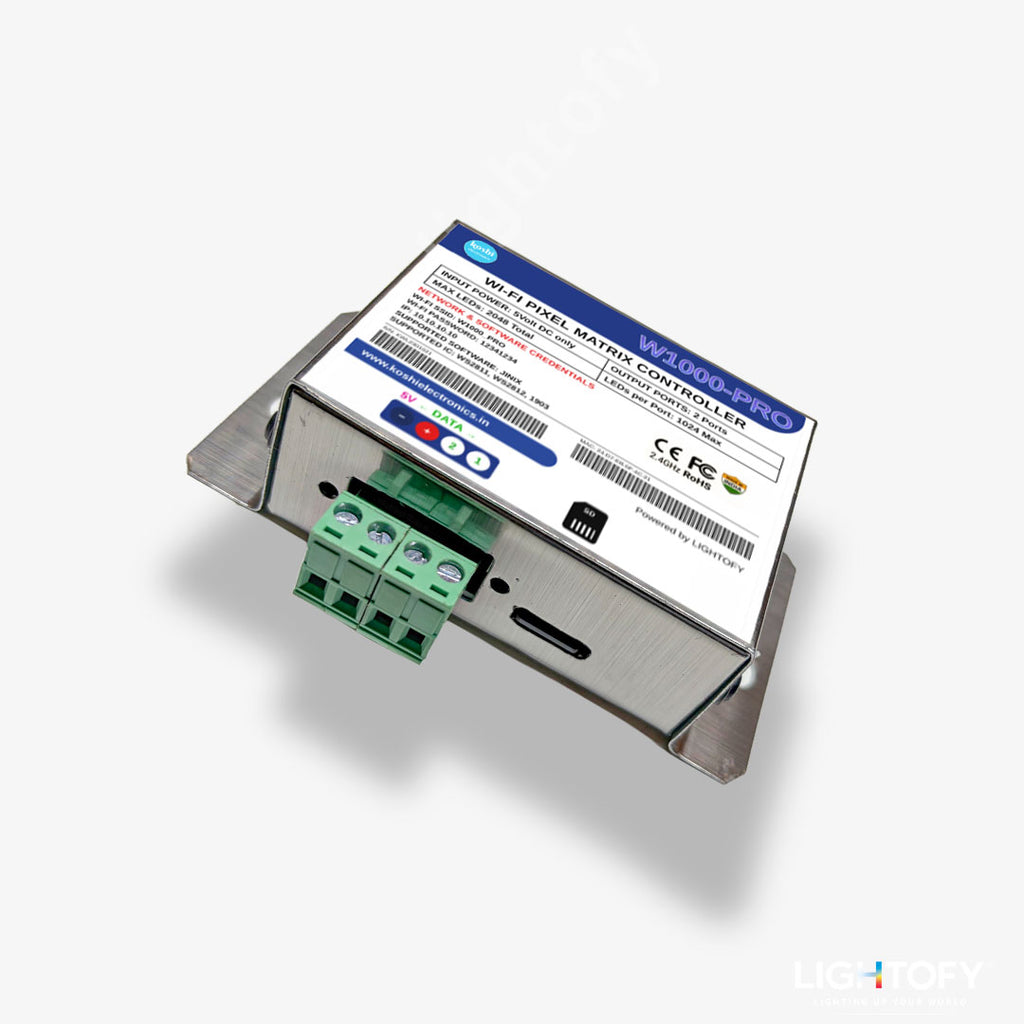

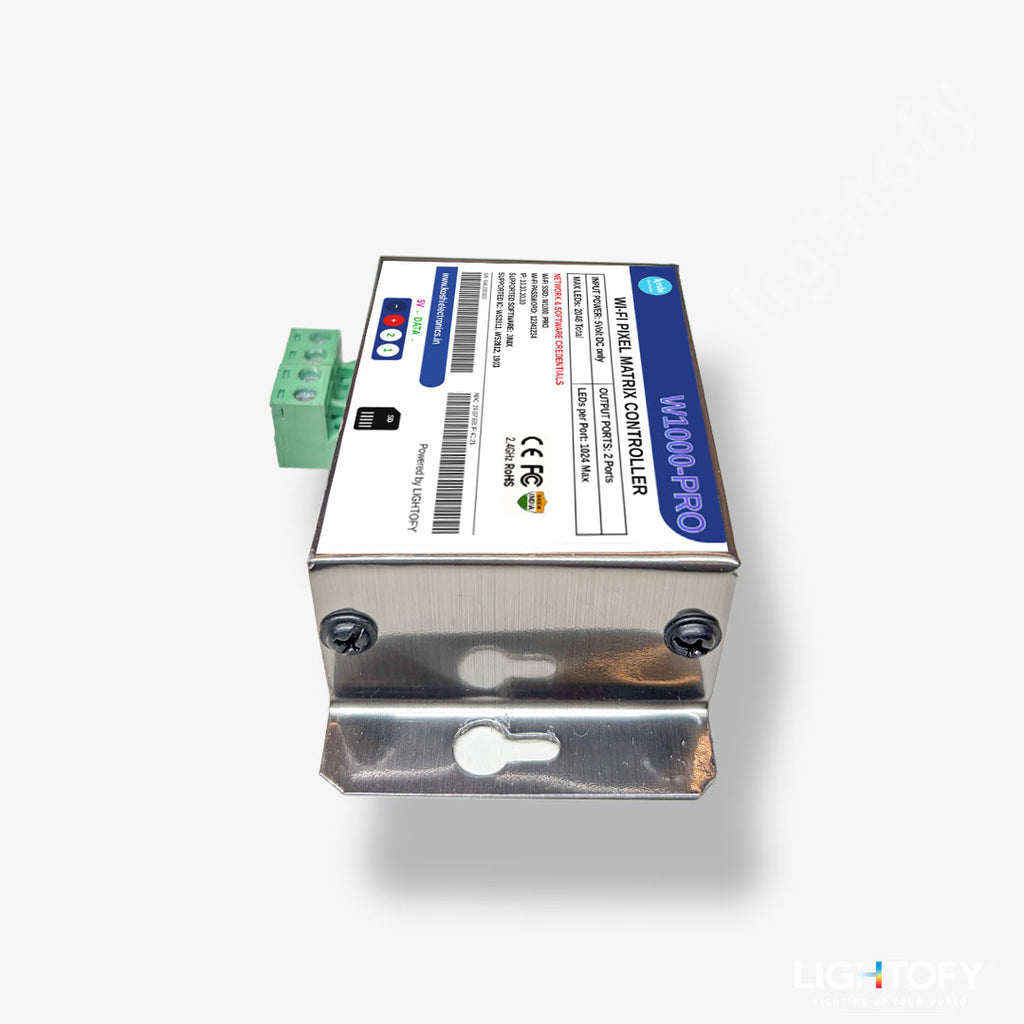

The Koshi Electronics W1000 PRO is a smart 2-port Wi-Fi pixel LED controller and a direct upgrade to the older T1000S. It drives up to 2,048 pixels with zero-lag live multi-language scrolling text and .out SD-card animations — controlled fully from your phone or laptop browser. No PC and no app required. Ideal for scrolling name boards, shop signs, thoran and DJ / stage displays.

📄 Download the full W1000 PRO User Manual (PDF) — complete setup, IC type, S/Z wiring, effects & troubleshooting.

Key Features

• 2 output ports — up to 2,048 pixels, auto-split across ports.
• Multiple IC support — WS2812B (GRB), WS2811 (RGB), UCS1903 (RGB), with automatic colour order.
• WiFi + SD card — live scrolling text over WiFi, plus .out animations from microSD.
• Zero-lag scrolling text — Hindi, English, Urdu, Arabic, Marathi, Bengali and more.
• Background effects — Rain / Waterfall, Snow, Fire, plus 20+ animated borders.
• S-Type & Z-Type matrix support for both text and animation.
• Captive Portal — control panel opens automatically; settings saved on power-off.
• Direct T1000S upgrade — smarter, app-free, phone-controlled.

Specifications

Need a Bigger Display? Compare WiFi Controllers

All three run the same easy phone-browser control. Pick by how many pixels your display needs:

👉 Need more than 2,048 pixels? Choose the W8000 PRO (8 ports / 8,192 pixels) for a big Thoran / building setup, or the W16000 PRO (16 ports / 16,000 pixels) for a very big Thoran / building setup — same simple phone control, just bigger.

Best For

• Scrolling name boards & shop signs
• Thoran & festival/home decoration
• DJ, stage & event message displays
• Multi-language (Hindi, Urdu, Arabic, Marathi, Bengali, English) boards
• A smart, app-free upgrade from the old T1000S

How It Works

1. Connect a 5V power supply and wire your pixel strips to the output port(s).
2. Power on and connect your phone to the WiFi network W1000_PRO_XXXX (password 12341234).
3. Open http://10.10.10.10 in your browser (it usually opens automatically).
4. Select your matrix folder, IC type and connection type (S/Z).
5. Type your text and press Send, or load .out animations from the SD card.

Frequently Asked Questions

How many pixels does it support?
Up to 2,048 pixels across 1 or 2 ports. For larger displays, use the W8000 PRO (8,192) or W16000 PRO (16,000).

Which LED ICs are supported?
WS2812B (GRB) and WS2811 / UCS1903 (RGB). Select your IC type and the correct colour order is applied automatically.

Colours look wrong (red shows as green)?
Switch the IC type between WS2812 (GRB) and WS2811 / UCS1903 (RGB) until correct.

Is the display mirrored or scrambled?
Switch the Connection Type between S-Type and Z-Type.

Is it really app-free?
Yes — it creates its own WiFi and opens a control page in your browser. Nothing to install.

How is it different from the T1000S?
The W1000 PRO adds WiFi phone control, live scrolling text, multi-language and built-in effects — a smart upgrade with the same SD animation support.

I forgot my WiFi password.
Hold the on-board button for about 8 seconds; the password resets to 12341234.

Warranty

6-month warranty* on manufacturing defects.

*Warranty covers manufacturing defects only. Not covered: physical damage, water damage, wrong SMPS connection (reverse +/− polarity), connecting to 220V AC, or the controller being exposed to rain. Protect the controller and SMPS from rain (use a rainproof box outdoors).
