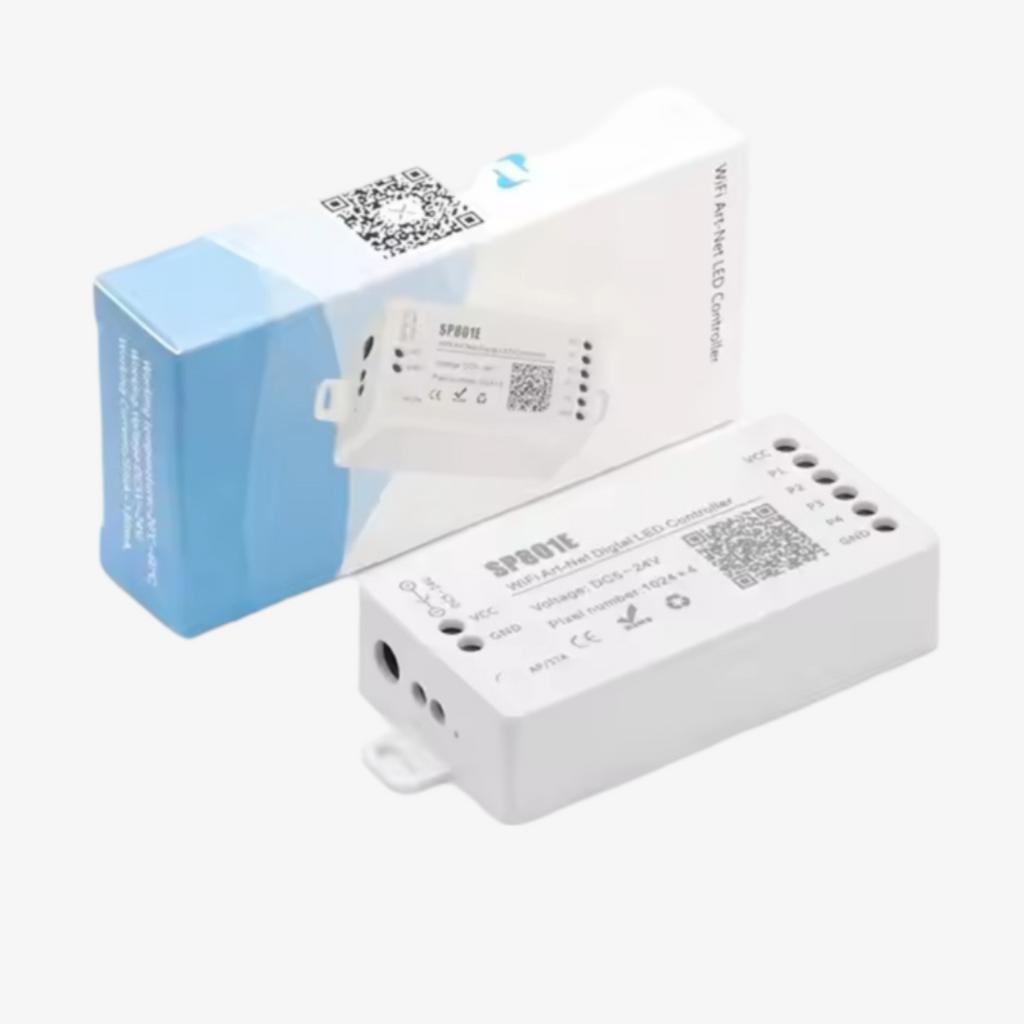

The SP801E is a professional WiFi + Bluetooth Art-Net pixel LED controller, controlled from the BanlanX app and compatible with multiple Art-Net computer software. It supports both AP and STA modes, two layout methods (regular rectangle or imported DXF files), and two-layer overlay effects including text and music layers with fully custom parameters. With real-time preview, scene recording to onboard storage and OTA updates, it's built for advanced decorators and custom pixel LED installations.
| Specification | Details |
|---|---|
| Type | WiFi + Bluetooth Art-Net pixel LED controller |
| Control | BanlanX app (iOS 10+ / Android 4.4+) + Art-Net software |
| WiFi | 2.4G only (does NOT support 5G WiFi) |
| Modes | AP mode & STA mode (dual-mode WiFi+BT chip) |
| Layout | Regular rectangle layout or import DXF files |
| Effect layers | Two-layer overlay: text layer, music effect layer & more |
| Customisation | Direction, width, colour, length, shape & more |
| Extras | Real-time preview, scene recording, RGB reorder, OTA update |
| In the box | 1 x SP801E controller + manual |
| Note | Power supply, phone & LED strip not included |
The SP801E is a professional WiFi + Bluetooth Art-Net pixel LED controller for advanced decorators and custom installations. Controlled from the BanlanX app and compatible with Art-Net PC software, it supports flexible layouts, two-layer effects, real-time preview and OTA updates — ideal for complex, large-scale pixel projects.
Key Features
- WiFi + Bluetooth + Art-Net — app control plus Art-Net PC software compatibility
- AP & STA modes — connect directly or join your home/venue WiFi
- Two layout methods — rectangle layout or import a DXF file for custom shapes
- Two-layer overlay effects — text layer + music layer with fully custom parameters
- Real-time preview — see effects live as you design
- Scene recording — save scenes to onboard storage for offline playback
- OTA updates — firmware upgrades over the air
Specifications
| Specification | Detail |
|---|---|
| Model | SP801E |
| Control | WiFi + Bluetooth + Art-Net (BanlanX app) |
| Operating Voltage | DC 5–24V |
| Compatible ICs | WS2811, WS2812 and similar addressable pixels |
| Layouts | Rectangle layout or imported DXF |
| Effects | Two-layer (text + music), real-time preview |
Quick Setup
- Power the controller from a matching DC supply and connect your pixel data line to the output.
- Install the BanlanX app, then connect to the controller in AP mode (or join your WiFi in STA mode).
- Set your layout (rectangle or import a DXF), IC type and pixel count.
- Design your effect with the text/music layers, preview in real time, then save the scene.
Best For
- Advanced decorators & custom pixel installations
- Art-Net / PC-software-driven projects
- Diwali, Navratri, Ganpati (Ganesh Chaturthi) & weddings
Frequently Asked Questions
Q: Which app controls the SP801E?
The BanlanX app (Android/iOS). It also works with Art-Net PC software.
Q: Can I design a custom (non-rectangular) layout?
Yes — import a DXF file to map irregular shapes, or use the built-in rectangle layout.
Q: Does it work offline?
Yes — record scenes to onboard storage and play them back without a phone or PC connected.
Q: Which LEDs does it support?
WS2811, WS2812 and similar addressable pixel ICs.
Kaunsa app use karna hai?
BanlanX app — App Store ya Google Play se download karein. iOS 10.0+ aur Android 4.4+ par chalta hai. Art-Net computer software ke saath bhi compatible hai.
Kya ye 5G WiFi par chalta hai?
Nahi. SP801E sirf 2.4G WiFi network support karta hai, 5.0G WiFi nahi. Configure karte waqt phone, router aur controller paas-paas rakhein.
AP mode aur STA mode mein kya farak hai?
AP mode mein controller aur phone seedha connect hote hain (controller khud hotspot banta hai, SSID jaise SP801E_XXX, default password 12345678). STA mode mein controller aur phone ek hi WiFi network par hote hain. Button click karke AP/STA mode switch hota hai.
Controller ko WiFi se kaise connect karein?
BanlanX app kholein, '+' button dabayein, SP801E select karein. STA ke liye apna 2.4G WiFi password daalein. BluFi config: device ka STA/AP button tab tak daba kar rakhein jab tak green LED flash na kare, phir next dabakar device add karein.
LED indicator ka matlab kya hai?
Blue static = AP mode, Green static = STA mode, Green flashing = BluFi configuration mode.
Kya isme effects customise hote hain?
Haan. Two-layer overlay support karta hai — text layer, music effect layer aur more. Direction, width, colour, length aur shape jaise parameters customise kar sakte hain, real-time preview ke saath, aur scene controller ki storage mein record kar sakte hain.
Box mein kya milta hai?
1 x SP801E controller aur 1 manual. Power supply, mobile phone aur LED strip alag se lene padte hain.
