SP511E WiFi + Music pixel LED controller hai jo WS2811 aur WS2812B addressable strips ko phone app se control karta hai — saath mein Alexa voice control bhi support karta hai. Music reactive mode mein lights beat ke saath sync hoti hain. 2048 pixels tak support, WiFi + Ethernet + DMX connectivity. Stage lighting, home decoration, DJ setup aur architectural lighting ke liye versatile choice.
| Specification | Details |
|---|---|
| Compatible ICs | WS2811, WS2812B, SK6812, TM1803, UCS1903 and more |
| Max Pixels | 2048 (680 per output) |
| Connectivity | WiFi (2.4GHz) + Ethernet + DMX512 |
| App Control | iOS & Android (BanlanX) |
| Voice Control | Amazon Alexa compatible |
| Music Mode | Built-in microphone — sound reactive |
| Power Input | DC 5V |
| Outputs | Multiple SPI outputs |
| Best For | Stage lighting, DJ setup, home decoration, architectural lighting |
| Brand | Koshi Electronics |

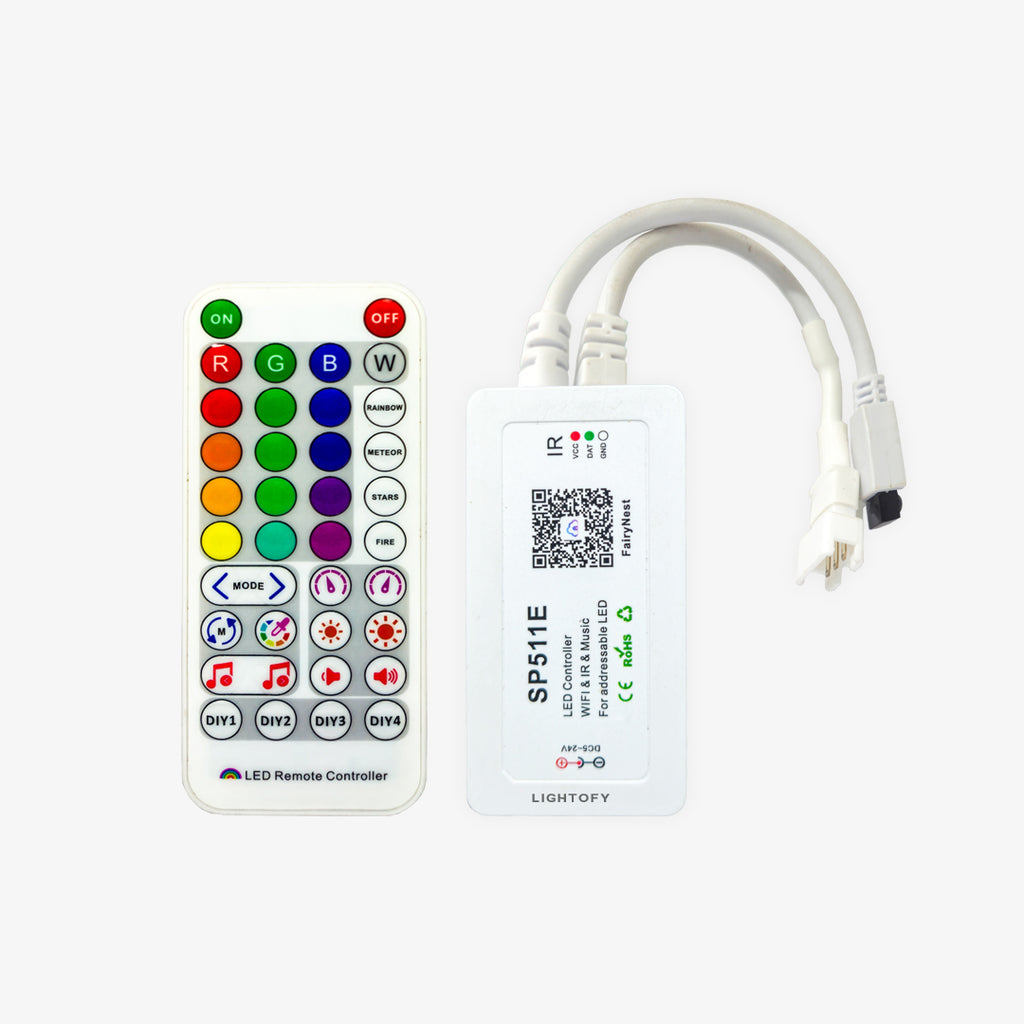

The SP511E is a WiFi + Bluetooth music pixel LED controller for WS2811 / WS2812B addressable LEDs. Control colours, effects, brightness and speed from your phone, and sync the lights to music in real time using the built-in microphone — perfect for home, party, DJ and decorative lighting.
Key Features
- WiFi (2.4G) + Bluetooth app control
- Music reactive — built-in microphone for real-time beat sync
- Many built-in dynamic effects — chasing, flowing, rainbow, breathing and more
- Wide DC 5–24V input — works with 5V, 12V and 24V addressable LEDs
- Compact — easy to hide behind TVs, in profiles or display cases
- Supported ICs — WS2811, WS2812B, SK6812 and similar addressable pixels
Specifications
| Specification | Detail |
|---|---|
| Model | SP511E |
| Control | WiFi (2.4G) + Bluetooth app |
| Music Input | Built-in microphone |
| Operating Voltage | DC 5–24V |
| Compatible ICs | WS2811, WS2812B, SK6812 & similar |
User Manual — Quick Setup
- Connect the controller's data and power to your strip, keeping a common ground. For runs over ~5 metres, power the strip directly from the SMPS (power injection).
- Connect your phone to the controller over WiFi or Bluetooth and open the app.
- Set your IC type and pixel count.
- Pick an effect, or switch to music mode to sync the lights to sound via the built-in mic.
Frequently Asked Questions
Q: How is the SP511E controlled?
From a phone app over WiFi (2.4G) or Bluetooth.
Q: How does music mode work?
A built-in microphone picks up sound and the lights react to the beat in real time.
Q: Which LEDs does it support?
WS2811, WS2812B, SK6812 and similar addressable pixel ICs.
Q: What voltage does it need?
DC 5–24V — match the voltage of your LED strip and keep a common ground.
SP511E aur SP108E mein kya fark hai?
SP511E zyada advanced hai — WiFi + Ethernet + DMX teenon connectivity aur Alexa voice control bhi. SP108E sirf WiFi se kaam karta hai. Professional/commercial use ke liye SP511E better.
Music mode kaise kaam karta hai?
Built-in microphone room ka sound detect karta hai aur lights music beat ke saath automatically sync hoti hain. DJ, party aur stage events ke liye perfect.
Alexa se kaise connect karein?
BanlanX app mein account banao, phir Alexa Skills mein BanlanX enable karo. Uske baad voice commands se on/off, colour, effects control kar sakte ho.
Kaun si LEDs compatible hain?
WS2811, WS2812B, SK6812, TM1803, UCS1903, APA102 aur kai aur ICs.
Kitne pixels tak chal sakta hai?
Maximum 2048 pixels — har output pe 680 pixels. Normal room ya stage setup ke liye kaafi.
