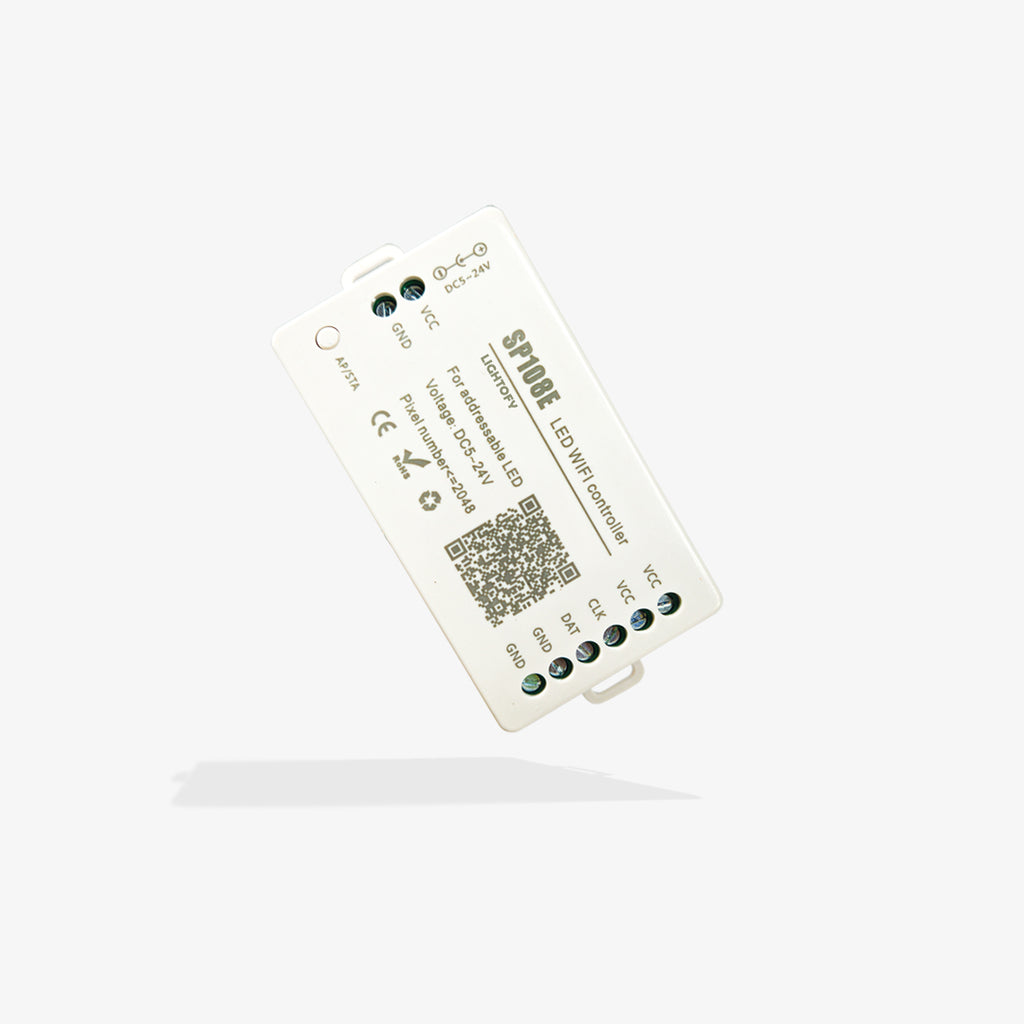

The SP108E is a WiFi magic pixel LED controller with wide IC support and 180+ dynamic colour modes. It connects over 2.4G WiFi (not 5G) and is controlled from an app (iOS 10+ / Android 4.4+), with WiFi group control to sync multiple SP108E units across different areas. A unique from-image-to-effect feature captures colours from any photo to match your room's mood. It drives up to 2048 pixels (1500 recommended), runs on DC 5–24V, and has reverse-connection and hot-swap protection.
| Specification | Details |
|---|---|
| Type | WiFi magic pixel LED controller |
| Control | App via 2.4G WiFi (NOT 5G), iOS 10+ / Android 4.4+ |
| Group control | Sync multiple SP108E units across different areas |
| Max pixels | 2048 (1500 recommended) |
| Voltage | DC 5V / 12V / 24V (wide range) |
| IC support | WS2811 / WS2812B / WS2801 / SK6812 / APA102 / LPD6803 / UCS1903 & more |
| Not compatible | TM1814 white IC, and 5050 RGB/RGBW strips without IC |
| Effects | 180+ dynamic modes + 8 single-colour modes; from-image-to-effect |
| Protection | Reverse connection & hot-swap protection; saves settings on power-off |
| Remote distance | Up to 30 meters |
The SP108E is a popular WiFi "magic" pixel LED controller with wide IC support and 180+ dynamic colour modes. It connects over 2.4G WiFi and is controlled from a free mobile app, with group control to sync multiple units across different areas — ideal for home, shop and decorative pixel lighting.
Key Features
- 2.4G WiFi app control (iOS & Android) — note: 2.4G only, not 5G
- 180+ dynamic colour modes
- WiFi group control — sync multiple SP108E units across areas
- Image-to-effect — capture colours from any photo to match your mood
- Up to 2048 pixels (1500 recommended for smoothest playback)
- Reverse-connection & hot-swap protection
- Wide IC support — WS2811, WS2812B, SK6812, UCS1903 and more
Specifications
| Specification | Detail |
|---|---|
| Model | SP108E |
| Control | 2.4G WiFi app (iOS & Android) |
| Max Pixels | 2048 (1500 recommended) |
| Operating Voltage | DC 5–24V |
| Effects | 180+ dynamic colour modes |
| Protection | Reverse-connection & hot-swap |
| Compatible ICs | WS2811, WS2812B, SK6812, UCS1903 & more |
User Manual — Quick Setup
- Connect the controller's data and power to your strip, keeping a common ground. For runs over ~5 metres, use power injection (take only GND + DATA from the controller and power the strip directly from the SMPS).
- On your phone, connect to the SP108E's 2.4G WiFi and open the app.
- Set your IC type and pixel count.
- Choose an effect, colour, brightness and speed. To run several units together, use WiFi group control.
Frequently Asked Questions
Q: Does it work on 5G WiFi?
No — the SP108E connects on 2.4G WiFi only.
Q: How many pixels can it drive?
Up to 2048, with 1500 recommended for the smoothest playback.
Q: Can I sync several controllers?
Yes — WiFi group control lets multiple SP108E units run in sync.
Q: What is image-to-effect?
The app can pull colours from any photo and turn them into a lighting effect.
Kya ye 5G WiFi par chalta hai?
Nahi. SP108E sirf 2.4G WiFi network par chalta hai, 5G par nahi. App iOS 10+ aur Android 4.4+ par chalta hai.
WiFi group control kya hai?
Aap multiple SP108E controllers ko ek saath sync kar sakte hain, chahe LED strips alag-alag areas mein lagi ho — sab ek saath same effect chalayengi.
From-image-to-effect feature kya hai?
Ye ek khaas feature hai — controller kisi bhi photo ke colours ko capture karke us hisaab se ek unique colour effect bana deta hai, jisse lights aapke room ke mahaul se match karti hain.
Kitne pixel chala sakta hai?
Max 2048 pixels (1500 recommended). DC 5V, 12V aur 24V — teeno voltage par chalta hai.
Kaunse LED support karta hai?
WS2811, WS2812B, WS2801, SK6812, APA102, LPD6803, UCS1903 aur bahut se ICs. Note: TM1814 white IC aur bina IC wale 5050 RGB/RGBW strips support NAHI karta.
Kitne effects milte hain?
180+ dynamic multi-colour modes aur 8 single colour modes (meteor, breathing, wave, catch-up, stack, flash, flow, static). Colour, brightness aur speed adjustable hain.
Kya power off hone par settings save rehti hain?
Haan. SP108E power off hone par bhi aapki settings save rakhta hai, aur isme reverse connection aur hot-swap protection bhi hai.
