| Specification | Details |
|---|---|
| LED Support | 50–150 addressable LEDs |
| Operating Voltage | 5V DC |
| Supported ICs | WS2812B, WS2811 |
| Control Methods | WiFi (2.4GHz) + manual buttons |
| Effects | 30+ RGB animations |
| Warranty | 6 months* (manufacturing defects only) |

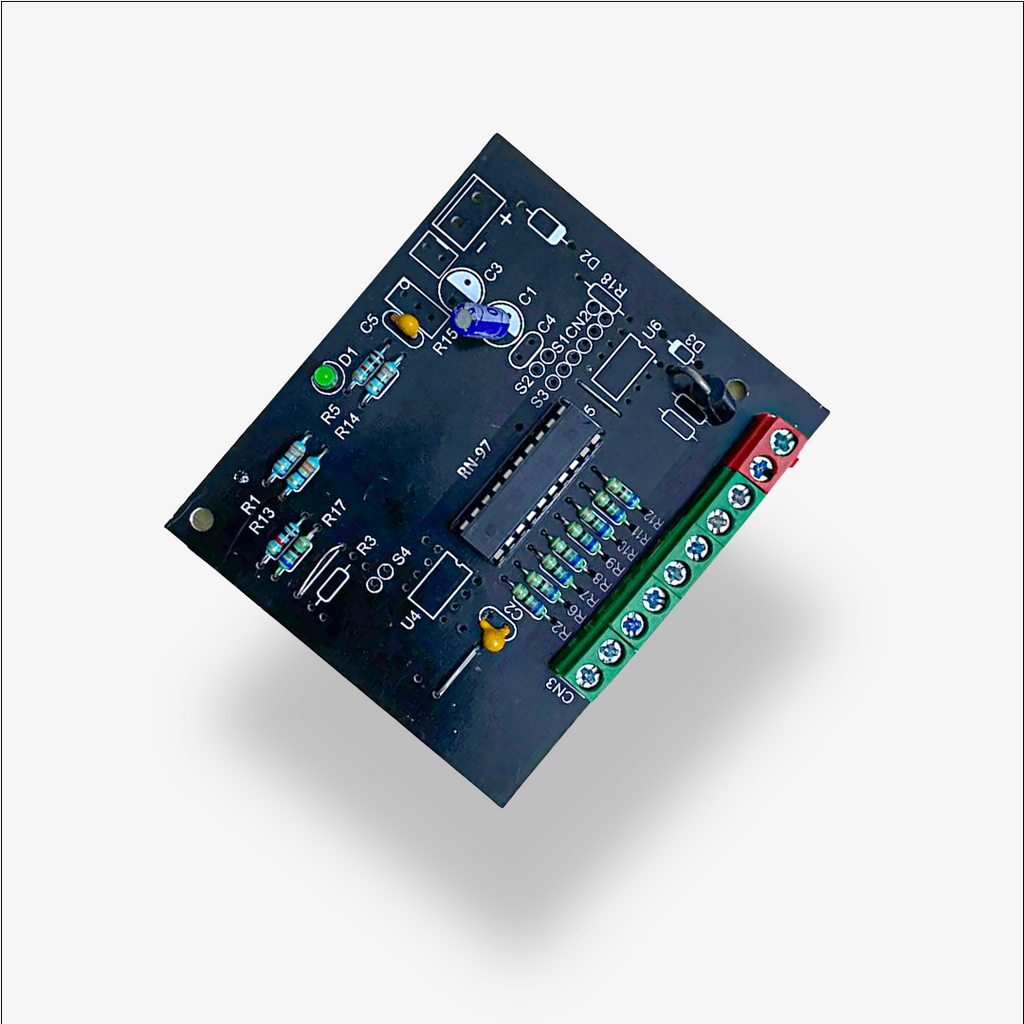

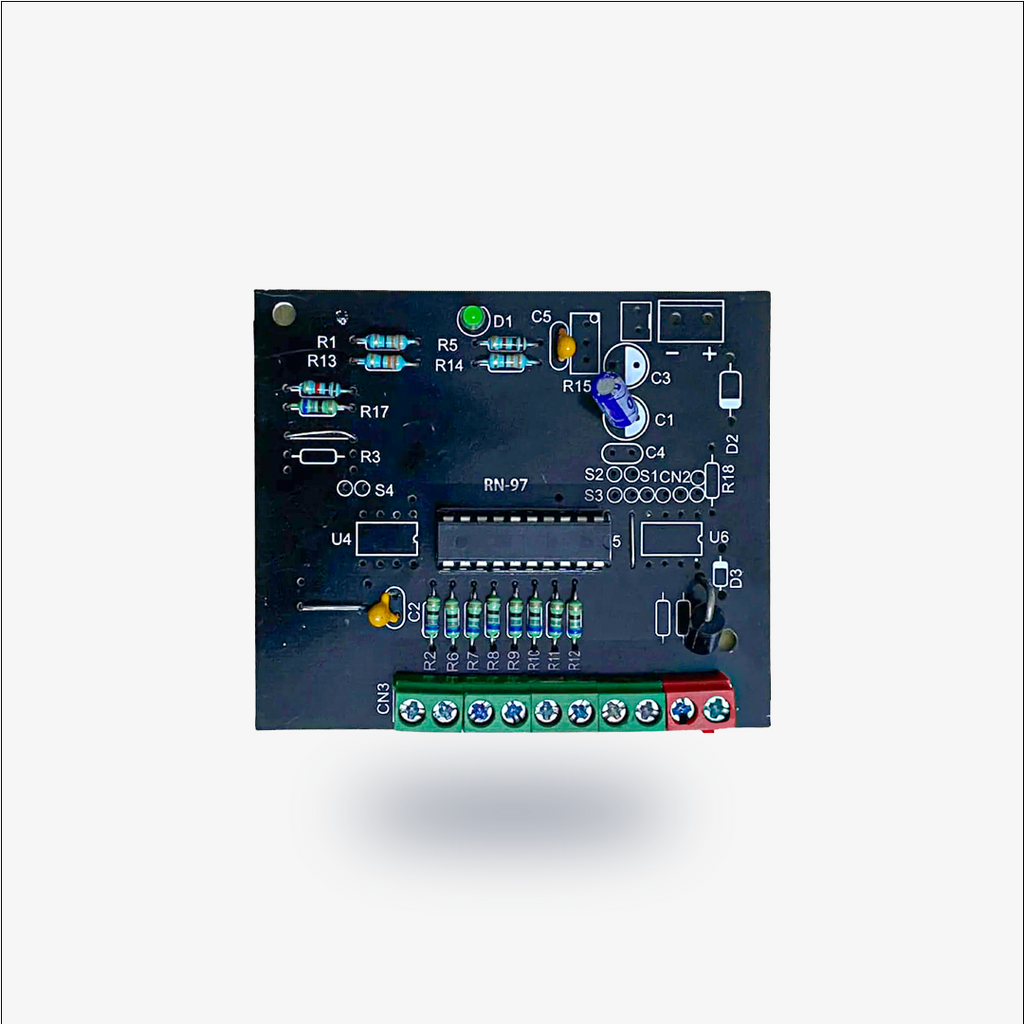

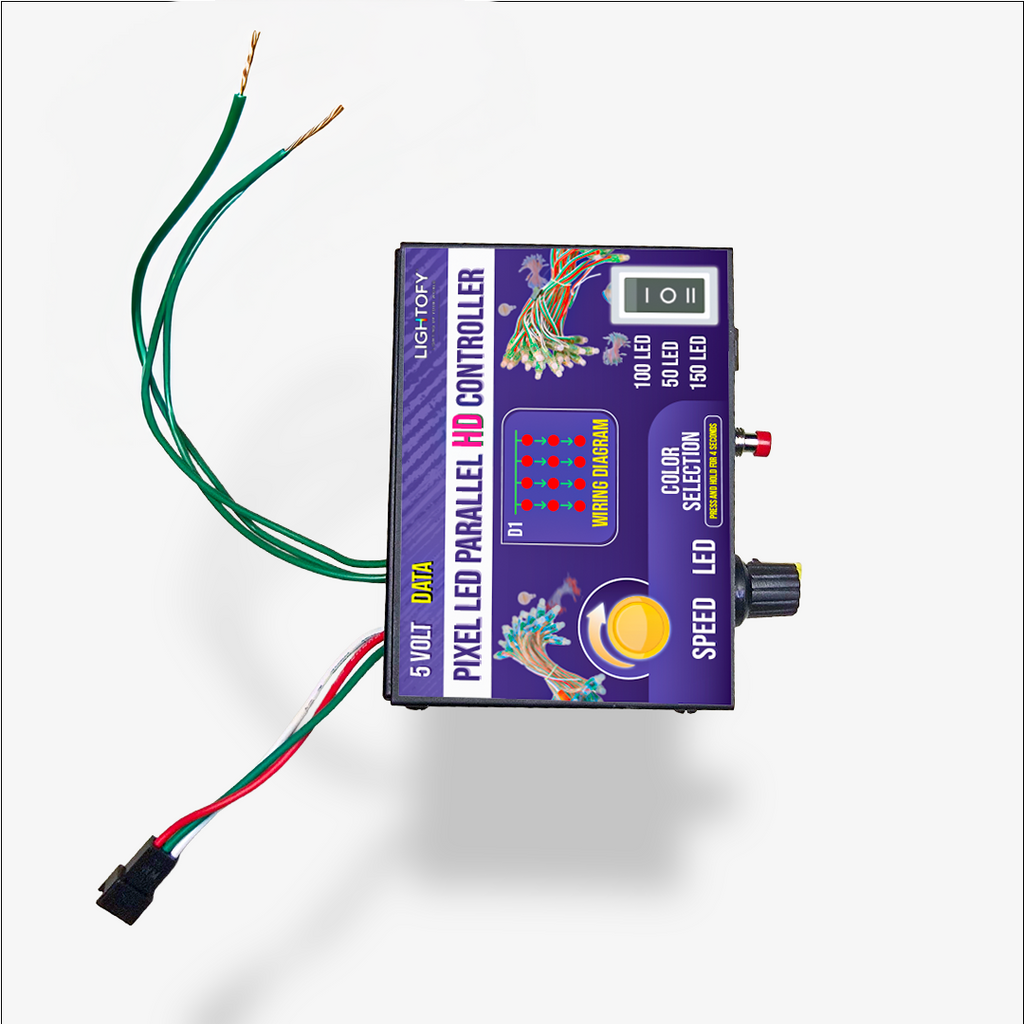

The Koshi Electronics 5V Pixel LED Parallel HD Controller drives RGB pixel displays with both WiFi and manual control. It supports 50–150 addressable LEDs, works with WS2812B and WS2811 pixels, and offers 30+ built-in RGB effects with adjustable speed and brightness — controlled from your phone's browser (no app) or onboard buttons.
Video Guide
Key Features
- 50–150 LED support: for strips, bulbs and small displays.
- WiFi + manual control: smartphone browser or onboard buttons.
- 5V DC: safe, low-voltage design.
- WS2812B / WS2811 compatible.
- 30+ RGB effects with adjustable speed and brightness.
- No app needed — web-based control.
Specifications
| Specification | Detail |
|---|---|
| LED Support | 50–150 addressable LEDs |
| Operating Voltage | 5V DC |
| Supported ICs | WS2812B, WS2811 |
| Control Methods | WiFi (2.4GHz) + manual buttons |
| Effects | 30+ RGB animations |
| Warranty | 6 months* (manufacturing defects only) |
Best For
- Home decoration and ambient lighting
- Festival and holiday displays
- Smart-home and gaming-room setups
- Shop displays and DIY LED projects
- Festive setups for Diwali, Navratri, Ganpati (Ganesh Chaturthi) and weddings
Frequently Asked Questions
Can I control it from my phone?

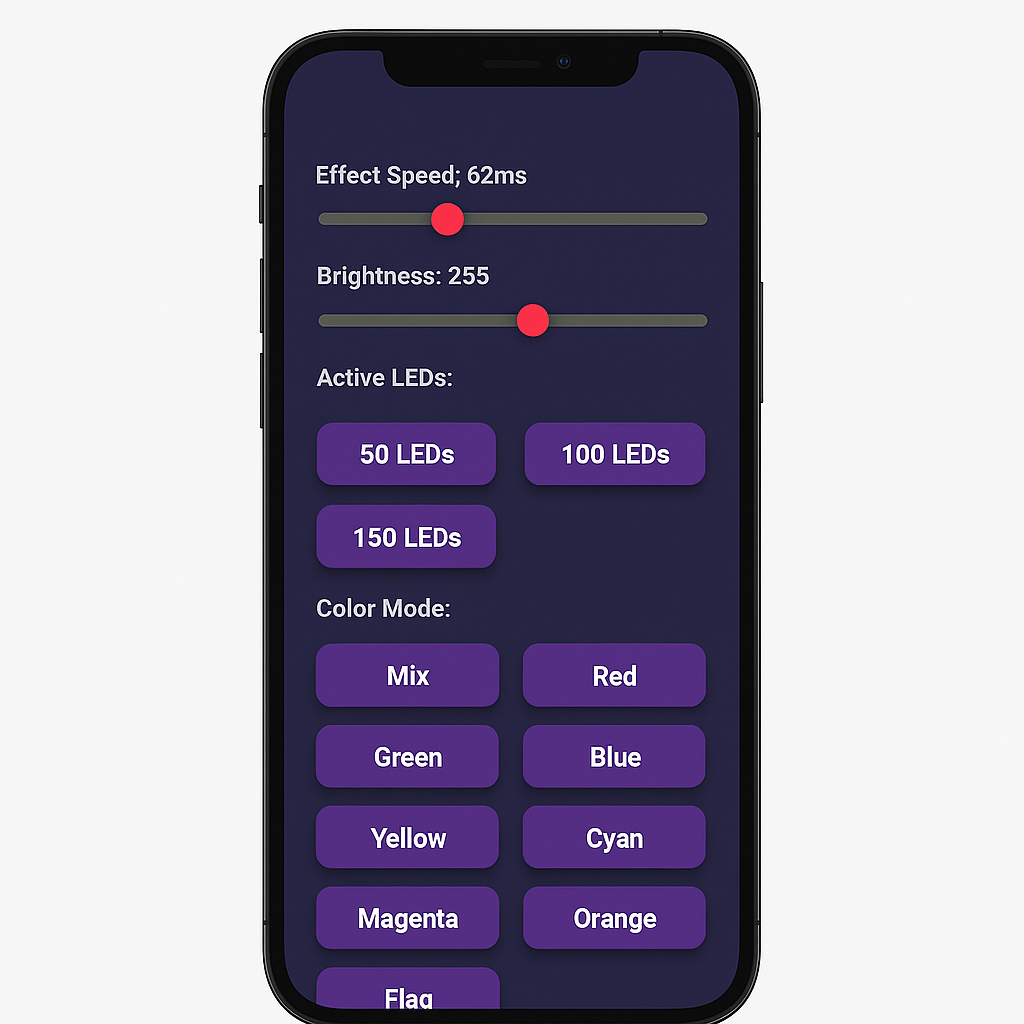

Yes — over WiFi, no app needed. Connect to its WiFi and open the control panel in your browser.
Can I use manual buttons instead?
Yes — full manual control via onboard buttons.
What power supply do I need?
A 5V supply rated for your LED count (typically 1–3A in this range).
Will it work with my LEDs?
Yes, if you use WS2812B, WS2811 or similar addressable pixels.
Warranty
6-month warranty* on manufacturing defects.
*Warranty covers manufacturing defects only. Not covered: physical damage, water damage, wrong SMPS connection (reverse +/− polarity), connecting to 220V AC, or the controller being exposed to rain. Protect the controller and SMPS from rain.
