▶️ Watch: Pixel LED Firework Controller for Diwali & Event Lighting Effects Demo
The Pixel LED Firework Controller is specially designed to create stunning cracker tree and firework effects using pixel LEDs — perfect for Diwali, weddings and outdoor events. Available in 4 types: Without Sound, Fixed LED with Sound, Manual Setting with Sound (WiFi-controlled), and Firework Pro. The manual type lets you adjust LED count, speed and sound output from the controller buttons or directly from your phone over WiFi — no software or app needed.
| Specification | Details |
|---|---|
| Types available | 1. Without Sound 2. Fixed LED + Sound 3. Manual Setting + Sound (WiFi) 4. Firework Pro |
| Control | Button + WiFi web page (no app needed) |
| WiFi SSID | Pixel LED Cracker Tree Controller (password: 12341234) |
| Control URL | 9.9.9.9 in phone browser after WiFi connect |
| Adjustable settings | LED count (column & ray), speed, sound output, timer |
| Sound output | Yes (in Manual & Pro types) |
| Best for | Diwali cracker tree, firework effects, weddings & outdoor events |
The Pixel LED Firework Controller drives addressable "cracker tree" firework displays, recreating the rising cannon and bursting flare of real fireworks using pixel LEDs. Set the LED count, running speed, and sound directly on the board or wirelessly over Wi-Fi — no PC or software required.
Available Types
- Fixed LED (without sound): preset LED count, no audio output.
- Fixed LED (with sound): preset LED count with synchronised sound.
- Manual (with sound): set the LED count, speed, sound, and timer yourself; configurable over Wi-Fi.

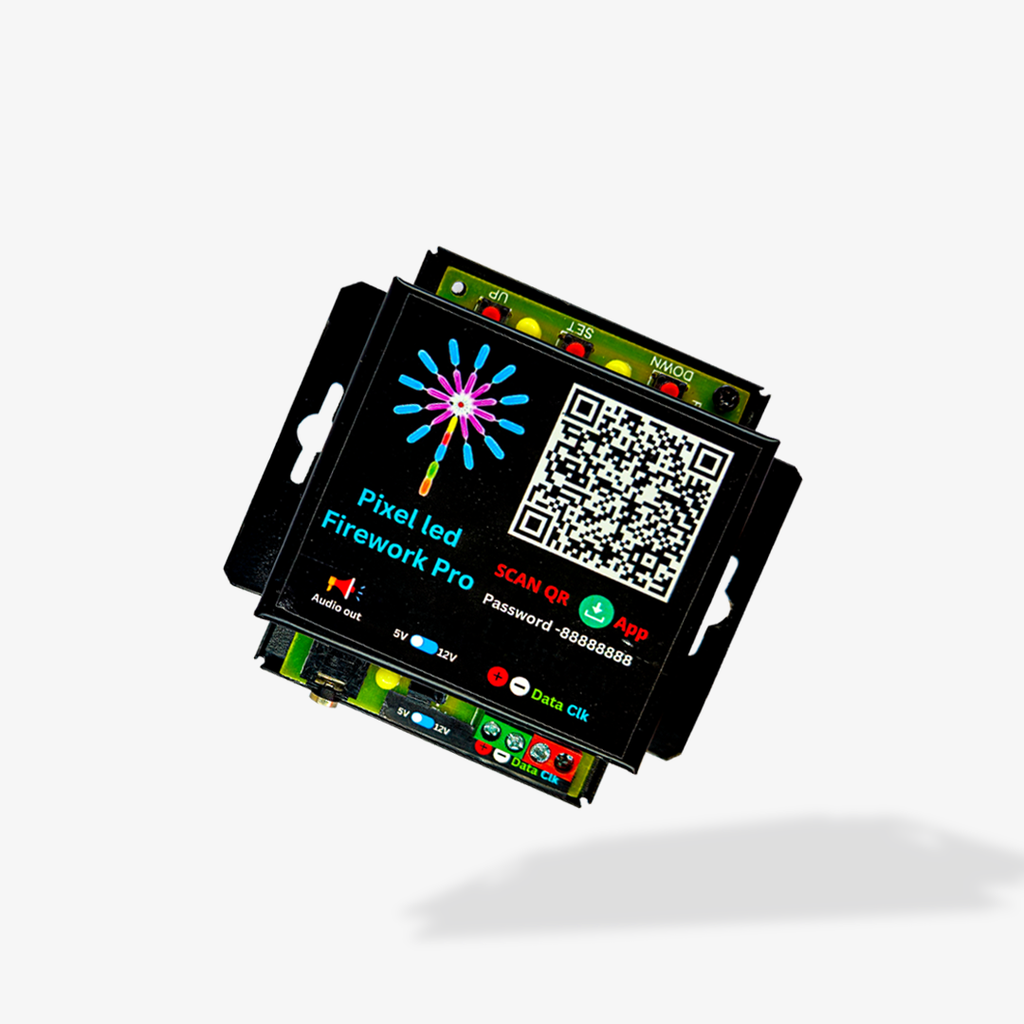

- Manual Pro (with sound): top model with the fullest feature set; configurable over Wi-Fi.
Manual Setting Type — Features
- Adjustable LED count for both the body (cannon) and the rays (Tia)
- Independent running-speed control for body and rays
- Built-in sound output
- Timer / scheduling options
- Wi-Fi web-page control — adjust all settings from your phone browser

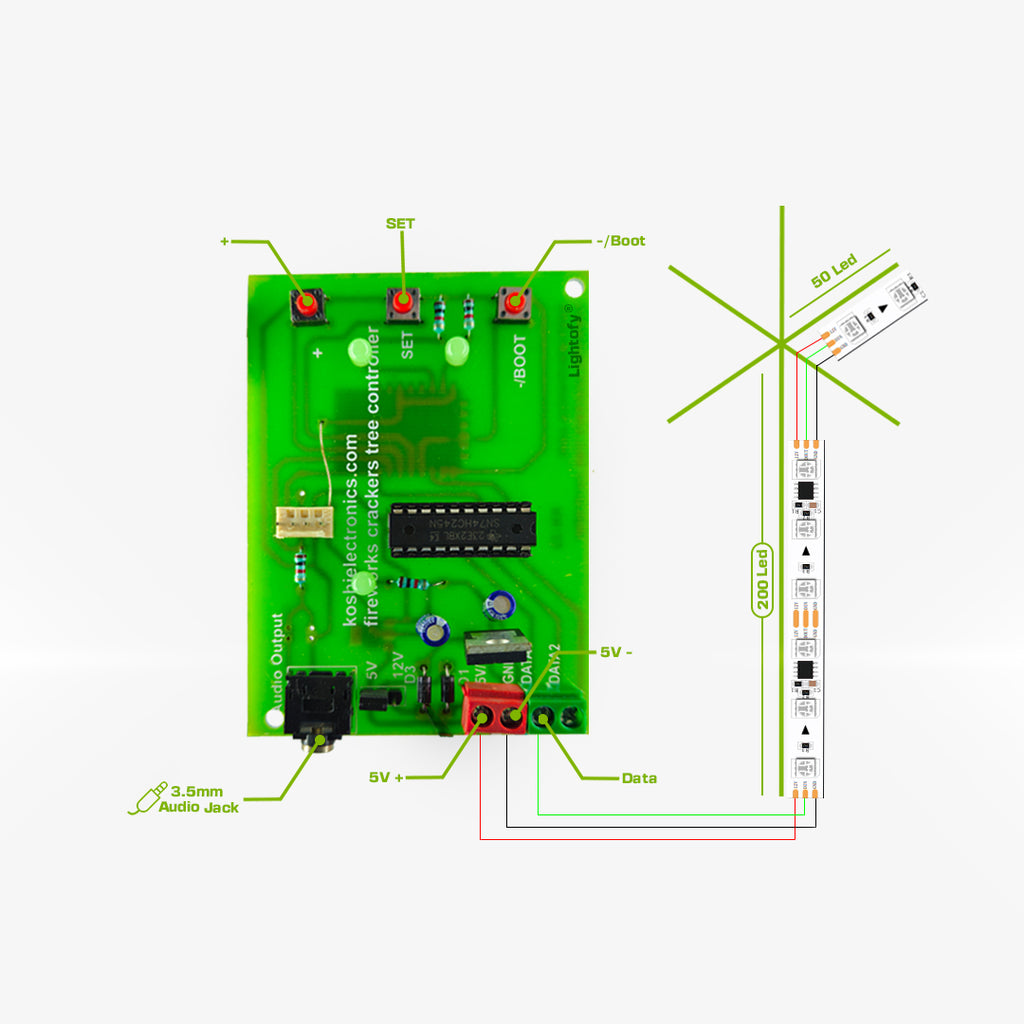

The board is built to drive firework LEDs with different cannon-body and flare lengths, all adjustable using the on-board buttons or the web page — without any software.
On-Board Setup (Button Method)
- Body LED count: Hold SET for 2 seconds until the indicator lights up, then use the + / – buttons to set the number of LEDs in the body.
- Ray (Tia) LED count: Hold SET again for 2 seconds until the indicator lights up, then use + / – to set the number of LEDs in the rays.
- Body speed: Hold SET for 2 seconds (the body runs a demo); use + / – to set the body running speed.
- Ray speed: Hold SET for 2 seconds (three indicators light up and the rays run a demo); use + / – to set the ray speed.
- Save: Keep holding SET for 2 seconds — the board saves automatically and returns to normal operation.
Wi-Fi Control Setup
- Turn on Wi-Fi and Location on your phone, and keep mobile data switched off.
- In your Wi-Fi list, connect to Pixel LED Cracker Tree Controller using password 12341234.
- Open your phone browser and type 9.9.9.9 in the address bar — the control web page will open.
Best For
Diwali, Ganpati (Ganesh Chaturthi), Navratri, weddings, and stage or event lighting where a dramatic firework effect is needed.
Demonstration Videos
Kaunsa type lena chahiye?
4 types hain — agar sirf effect chahiye to 'Without Sound' lein. Sound ke saath basic effect ke liye 'Fixed LED + Sound' lein. Agar full control chahiye (LED count, speed, timer, WiFi) to 'Manual Setting + Sound' lein. Sabse advanced features ke liye 'Firework Pro' lein.
WiFi se kaise connect karein?
Phone ka mobile data band karo. WiFi settings mein 'Pixel LED Cracker Tree Controller' signal dhoondho. Password 12341234 daalkar connect karo. Browser mein 9.9.9.9 type karo — settings page khul jaayega.
LED count aur speed kaise set karein?
Controller par SET button 2 second dabao (indicator light on hoga). + aur – buttons se column LEDs ka count set karo. Phir SET button phir 2s dabao — ray LEDs ka count set karo. Isi tarah speed bhi set hoti hai. Last mein SET dabate hi controller save karke normal mode mein aa jaata hai.
Kya isme timer option hai?
Haan. Manual aur Pro type mein timer option milta hai — WiFi web page se set kar sakte hain ki controller kitni der ON rahe.
Ye kis decoration ke liye best hai?
Diwali cracker tree decoration, wedding entry firework effects, stage shows aur outdoor festival events ke liye perfect hai.
