| Specification | Details |
|---|---|
| Package Includes | Pixel LED strings + controller (HD or Multi-Language WiFi — your choice) + SMPS power supply + connection wires |
| Size Options | 4x5 to 20x40 ft (17 sizes) |
| Line Gap | Your choice — 1/2 feet (half-foot, densest & most premium) or 1 feet (lighter & more economical) |
| LED Type | WS2811 original Small PCB (11 mm) copper-wire pixel LEDs, 5-inch LED spacing |
| Signal Wire | Tinned-copper data wire — solders clean with no carbon (not aluminium) |
| Power Wire | 1.5 mm original branded copper — better than 2.5 mm local copper wire |
| Controller | Choose HD Controller (24-bit colour, smooth transitions, high FPS) or Multi-Language WiFi Controller (+₹300) |
| Control | HD: runs from the controller box · WiFi: full control from your phone's web app (multi-language text, effects, brightness, speed) |
| Animations | 100+ preloaded effects; with the WiFi controller you can also upload custom text and set brightness & speed from the web app |
| Power Supply | Included; power injection with extra SMPS on setups over 20 ft for uniform brightness |
| Warranty | 6 Months* (manufacturing defects only) |
| Installation | 2–4 hours |
| Making Time | 5–7 days (made to order in your size), then shipped by courier |
| Best For | Diwali, Navratri, Ganpati, weddings, corporate events, building decoration |
Thank you for the amazing response! Our ready-made Thoran bookings for this Diwali are full, so we are not taking new orders for complete Thoran setups right now.
Want to make your own Thoran? All the parts are available — watch our step-by-step video and order the parts below.
दिवाली के लिए थोरण बुकिंग फुल हो गई है 🙏 अभी रेडी-मेड थोरण सेटअप के नए ऑर्डर नहीं ले रहे हैं। खुद बनाना है? सारे पार्ट्स उपलब्ध हैं — वीडियो देखें और नीचे से पार्ट्स ऑर्डर करें।
▶️ Thoran Banane Ka Video / थोरण बनाने का वीडियो
🛒 Pixel LED (WS2811) · Thoran Controller · WiFi Name Controller · 5V SMPS
📲 Help: WhatsApp 7004336791
Koshi Electronics' Pixel LED Complete Thoran Setup is a ready-to-use, WiFi-smart festive lighting package — built for Diwali, Navratri, Ganpati, weddings, and events. Available in every size from 4x5 ft home doorways to 20x40 ft commercial buildings, backed by a 6-month warranty*.
This is a customised, made-to-order product. Your Thoran is built by hand in your chosen size after you place the order, which takes 5–7 days. Once ready, it is tested and shipped by courier — courier delivery usually takes a further 3–7 days (remote areas 9–10 days).
यह एक कस्टमाइज़्ड प्रोडक्ट है। आपका थोरण ऑर्डर मिलने के बाद आपके चुने हुए साइज़ में हाथ से तैयार किया जाता है, जिसमें 5–7 दिन लगते हैं। तैयार होने के बाद टेस्ट करके कूरियर से भेजा जाता है — कूरियर डिलीवरी में आमतौर पर 3–7 दिन और लगते हैं (दूर-दराज़ इलाकों में 9–10 दिन)।
For festivals and weddings, please order at least 2 weeks before your event. / त्योहार या शादी के लिए कम से कम 2 हफ्ते पहले ऑर्डर करें।
Your LED matrix is always exact — you receive every pixel and every line you ordered, and the width is exact too.
The height is approximate. Every Thoran is assembled by hand: glue behind each LED and the binding make the string contract slightly, and the topmost LED's wire is used for the power connection. For example, a Thoran listed as 4 feet in height usually measures around 3.5–3.7 feet in practice. The same applies to every size on this page.
This is normal for a handmade product and is not a defect. If you need an exact height, please tell us before ordering and we will try to build it with extra LEDs to match.📏 साइज़ के बारे में ज़रूरी जानकारी
आपका LED मैट्रिक्स हमेशा सही मिलता है — जितने पिक्सेल और जितनी लाइनें आपने ऑर्डर कीं, सब मिलेंगी, और चौड़ाई भी बिल्कुल सही होती है।
ऊँचाई लगभग होती है। हर थोरण हाथ से बनता है: हर LED के पीछे लगे ग्लू और बाइंडिंग से लड़ी थोड़ी सिकुड़ जाती है, और सबसे ऊपर वाली LED का तार पावर कनेक्शन में लगता है। उदाहरण: 4 फीट ऊँचाई वाला थोरण असल में लगभग 3.5–3.7 फीट का होता है। यही बात इस पेज के हर साइज़ पर लागू होती है।
यह हाथ से बने प्रोडक्ट में नॉर्मल है, कोई खराबी नहीं। अगर आपको बिल्कुल सही ऊँचाई चाहिए, तो ऑर्डर से पहले हमें बताएं — हम एक्स्ट्रा LED लगाकर उसी ऊँचाई में बनाने की कोशिश करेंगे।
Detail Me Janiye — Thoran Setup Kya Hota Hai, Kaise Banta Hai
🎬 Thoran Pe Naam + Animation — Live Demo (WiFi Controller)
See how a name and animations look on a real Thoran with the Multi-Language WiFi controller (+ ₹300 option). Demo shown on a 10X40 matrix — the same works on every Thoran size.
असली थोरण पर मल्टी-लैंग्वेज WiFi कंट्रोलर से नाम और एनिमेशन कैसे दिखते हैं, यह देखें। डेमो 10X40 मैट्रिक्स पर है — हर साइज़ के थोरण पर यही चलता है।
Which Size Is Right For You? / आपके लिए कौन सा साइज़ सही है?
| Your space/event आपकी जगह / इवेंट |
Recommended size सही साइज़ |
Best for किसके लिए बेस्ट |
|---|---|---|
| Single door / small gate सिंगल दरवाज़ा / छोटा गेट |
4x5 – 4x10 ft 4x5 – 4x10 फीट |
Home doorway, small gate घर का दरवाज़ा, छोटा गेट |
| Medium gate/hall entrance मीडियम गेट / हॉल का एंट्रेंस |
4x20 – 5x20 ft 4x20 – 5x20 फीट |
Wedding entrance, hall शादी का एंट्रेंस, हॉल |
| Large entrance/stage बड़ा एंट्रेंस / स्टेज |
5x30 – 6x40 ft 5x30 – 6x40 फीट |
Mandap, stage backdrop, big events मंडप, स्टेज बैकड्रॉप, बड़े इवेंट |
| Commercial / building front कमर्शियल / बिल्डिंग का फ्रंट |
10x20 – 20x40 ft 10x20 – 20x40 फीट |
Showroom, building, commercial display शोरूम, बिल्डिंग, कमर्शियल डिस्प्ले |
Not sure which size fits? WhatsApp a photo of your space to 7004336791, and we'll recommend the right size.
साइज़ समझ नहीं आ रहा? अपनी जगह की फोटो 7004336791 पर WhatsApp करें, हम सही साइज़ बता देंगे।
Customise Your Setup — Line Gap & Controller
Along with the size, you can choose two things to match your budget and the look you want. Just select them above — the price updates automatically.
1. Gap Between 2 Lines — how dense (bright & full) the setup looks
| Option | What it means | Best for |
|---|---|---|
|
1/2 Feet (Half Foot) Gap Premium · densest |
Lines sit just 6 inches apart, so the setup uses double the LEDs — the brightest, fullest, most premium look with no gaps. | Homes, weddings, showrooms, close-up viewing & photos/reels. |
|
1-Foot Gap Economical · value |
Lines sit 1 foot apart, using about half the LEDs — lighter coverage at roughly half the price. | Large areas on a budget, and setups viewed from a distance. |
2. Controller Type — how you run the effects
| Option | What you get |
|---|---|
|
HD Controller Included in price |
Full 24-bit colour with 100+ preloaded effects, smooth transitions and a high frame rate. Runs straight out of the box. |
|
Multi-Language WiFi + ₹300 |
Everything the HD controller does, plus phone control over WiFi — upload custom scrolling text in Hindi, English & other languages, and change effects, colour, brightness & speed live from your phone. |
LEDs & Spacing — How Many LEDs In Each Size? / हर साइज़ में कितनी LED?
Every Koshi Thoran uses a 5-inch gap between LEDs (along the height). The gap between lines is your choice — 1/2 foot (half-foot) for the densest look, or 1 foot for a lighter, more economical setup. Sizes are listed in feet (Height × Width). The counts below are for the half-foot option; with the 1-foot gap, the number of lines (and the total LED count) is halved:
हर Koshi थोरण में ऊँचाई में दो LED के बीच 5 इंच का गैप होता है। लाइनों के बीच का गैप आप चुनते हैं — आधा फीट (सबसे भरा हुआ लुक) या 1 फीट (हल्का और सस्ता)। साइज़ फीट (ऊँचाई × चौड़ाई) में है। नीचे की गिनती आधा फीट गैप की है; 1 फीट गैप में लाइनें और कुल LED आधी हो जाती हैं।
- LEDs per line (height): about 2.5 LEDs per foot (5-inch gap) — e.g. 4 ft = 10 LEDs, 10 ft = 25 LEDs, 20 ft = 50 LEDs. (1 bunch = 20 ft = 50 LEDs.)
- Number of lines (width): 2 lines per foot (half-foot line gap) — e.g., 5 ft = 10 lines, 20 ft = 40 lines, 40 ft = 80 lines.
- Total LEDs = LEDs per line × number of lines.
| Size (Height × Width, ft) साइज़ (ऊँचाई × चौड़ाई, फीट) |
LEDs (height) ऊँचाई में LED |
Lines (width) चौड़ाई में लाइन |
Total LEDs (approx) कुल LED (लगभग) |
|---|---|---|---|
| 4 × 5 | 10 | 10 | 100 |
| 4 × 10 | 10 | 20 | 200 |
| 4 × 20 | 10 | 40 | 400 |
| 10 × 20 | 25 | 40 | 1,000 |
| 10 × 40 | 25 | 80 | 2,000 |
| 20 × 40 | 50 | 80 | 4,000 |
Counts are approximate (rounded to the nearest LED). For the exact count for any custom size, WhatsApp us at 7004336791.
गिनती लगभग है। किसी भी कस्टम साइज़ की सही गिनती के लिए 7004336791 पर WhatsApp करें।

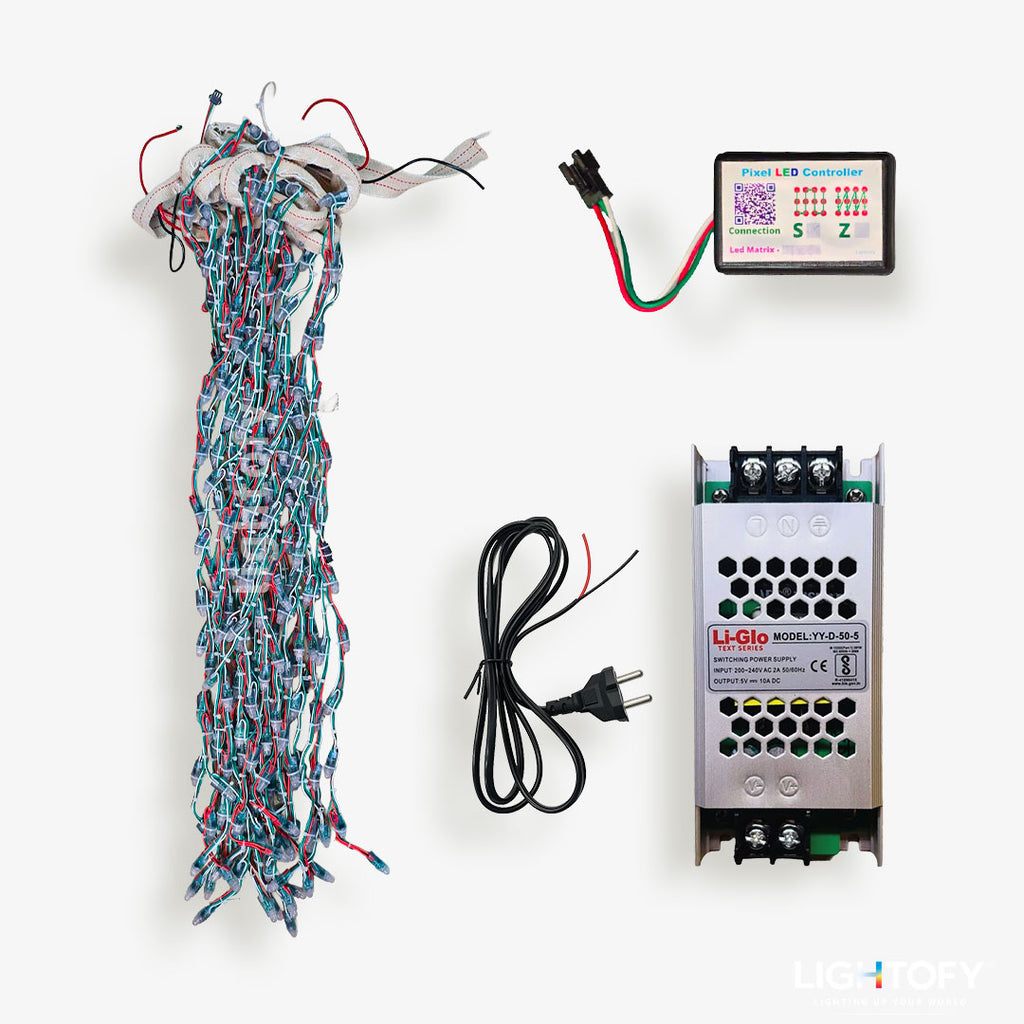

What's Included
- Addressable pixel LED strings (WS2811) — full coverage
- Smart controller — you get the HD Controller or the Multi-Language WiFi Controller, whichever you pick in the "Controller Type" option above
- Correctly sized SMPS power supply
- Connection wires and terminals
Key Features
- WiFi Smart Control: change colours, text, brightness, effects and speed from your phone's web app — no internet required.
- 100+ Preloaded Effects: plus the ability to upload text and control the brightness and speed of animations.
- Complete Package: LED, controller, power supply, and wiring — all together.
- Reusable: buy once, use it every festival.
- 6-Month Warranty*: professional-grade components.
What Can You Display?
If you choose the Multi-Language WiFi controller, your Thoran becomes fully programmable from your phone's web app — so you can display custom scrolling text and effects for any occasion:
| Occasion | Show on your Thoran |
|---|---|
| Wedding | Couple's names + "Shubh Vivaah" |
| Diwali | "Happy Diwali" with diya & firecracker effects |
| Ganpati / Navratri | Festival greetings + colour animations |
| Nikah | Urdu / Arabic text + names |
| Shop/business | Brand name + offers |
| Mandap/reception | Welcome message + flowing effects |
Built With Premium Materials
- WS2811 original copper-wire pixel LEDs — Small PCB (11 mm) type with a 5-inch gap between each LED for even, full coverage. We stock two kinds of pixel LEDs — Small PCB and Big PCB — and this Thoran is built with the genuine Small PCB 11 mm copper-wire LED.
- Tinned-copper signal wire — not aluminium. The cheap silver-coloured wire many sellers use is aluminium. We use tinned copper, which costs more but solders perfectly with clean, carbon-free joints — so the data signal stays reliable.
- 1.5 mm original branded copper power wire for safe, stable current.
- Power injection on big setups: for anything over 20 ft we add extra SMPS at multiple points so the voltage never drops — every LED stays uniformly bright from end to end.
- HD controller: full 24-bit colour with smooth colour transitions and a high frame rate for crisp, fluid animations.
Perfect For
- Diwali, Navratri and Ganpati (Ganesh Chaturthi) decoration
- Wedding entrance, mandap and reception backdrop
- Corporate events and stage
- Building entrance and commercial display
How It Works
- Choose the size that fits your space.
- Mount the pixel strings on the frame (modular, easy).
- Connect the controller and power supply.
- Connect over WiFi from your phone's web app and run the effects.
Why Koshi Electronics?
- India's #1 professional Thoran setup provider
- 147,000+ YouTube subscribers — installation videos available
- Complete ready-to-use package
- 6-month warranty* + expert WhatsApp support
Warranty
6-Month Warranty*
*Covers manufacturing defects only. Not covered: physical damage, water damage, wrong SMPS connection (reversing the + and − terminals), connecting LEDs directly to 220V AC mains, or exposing the SMPS/controller to rain. Always protect the SMPS and controller from rain — the LEDs themselves are waterproof.
Product Life & Care — Lasts 4+ Years
With proper handling, your Thoran setup easily lasts more than 4 years. A few simple precautions keep it performing season after season:
- Dry before storing: after each use, make sure the setup is fully dry before packing it away.
- Pack it properly: store it neatly packed so that weather and moisture don't make the wire stiff or brittle over time.
- Hang and remove gently: put it up and take it down smoothly — never push or pull forcefully, as too much force can break the solder joints inside.
- Easy to repair: if a wire ever breaks or the SMPS fails, it can be replaced with a genuine component at the correct voltage — so your setup keeps going for years.
Complete Your Setup
- Controller Rainproof Box (IP65) → — outdoor protection
- More Pixel LED Controllers →
- SMPS Power Supply →
Prefer to Build Your Own Thoran?
The ready-made set is the easiest option — but if you enjoy DIY and want to customise (and save), you can build your own Thoran from our components. Watch the full step-by-step video, then get everything you need below.
Parts you'll need:
- Pixel LED (WS2811, PVC wire, small PCB) →
- 5V SMPS Power Supply →
- Thoran Controller (Normal) →
- WiFi Multi-Language Controller → — for phone control
- Data Wire (PVC) →
- Wire Stripper / Cutter →
- Cable Ties (4 inch) →
Frequently Asked Questions
Is this ready stock or made to order?
Made to order. Every Thoran is custom-built by hand in your chosen size after you order, which takes 5–7 days. After testing, it is dispatched by courier (courier delivery 3–7 days; remote areas 9–10 days).
Will the height be exactly as listed?
The LED matrix and the width are exact, but the height is approximate. Each Thoran is handmade — glue behind every LED and the binding make the string contract slightly, and the topmost LED's wire is used for the power connection. For example, a Thoran listed as 4 feet in height usually measures around 3.5–4 feet. If you need an exact height, tell us before ordering.
How many LEDs are in my size / what is the gap?
LEDs are spaced 5 inches apart (along the height), and lines are half a foot (6 inches) apart (along the width). LEDs per line ≈ height in feet × 2.5; number of lines = width in feet × 2; total LEDs = the two multiplied. Example: 10 × 40 ft ≈ 25 LEDs × 80 lines ≈ 2,000 LEDs. See the LEDs & Spacing table above.
Can I control it from my phone?
Yes — with the Multi-Language WiFi controller, full control from your phone's web app.
Can it display text in Hindi or other languages?
Yes — the WiFi controller supports multi-language scrolling text (Hindi and more), set from the web app.
Is it full colour?
Yes — full RGB pixel LEDs with 24-bit colour.
Do I need a frame to hang it?
The LED strings mount on a frame or structure (arranged separately) — a metal or PVC frame, or directly on a gate/wall.
Is it reusable?
Yes, fully reusable.
Can it be used outdoors or in rain?
Keep the controller and LEDs out of direct rain — use a tent/covered area or a rainproof box.
Which size should I pick?
See the "Which Size" table above, or WhatsApp us a photo.
