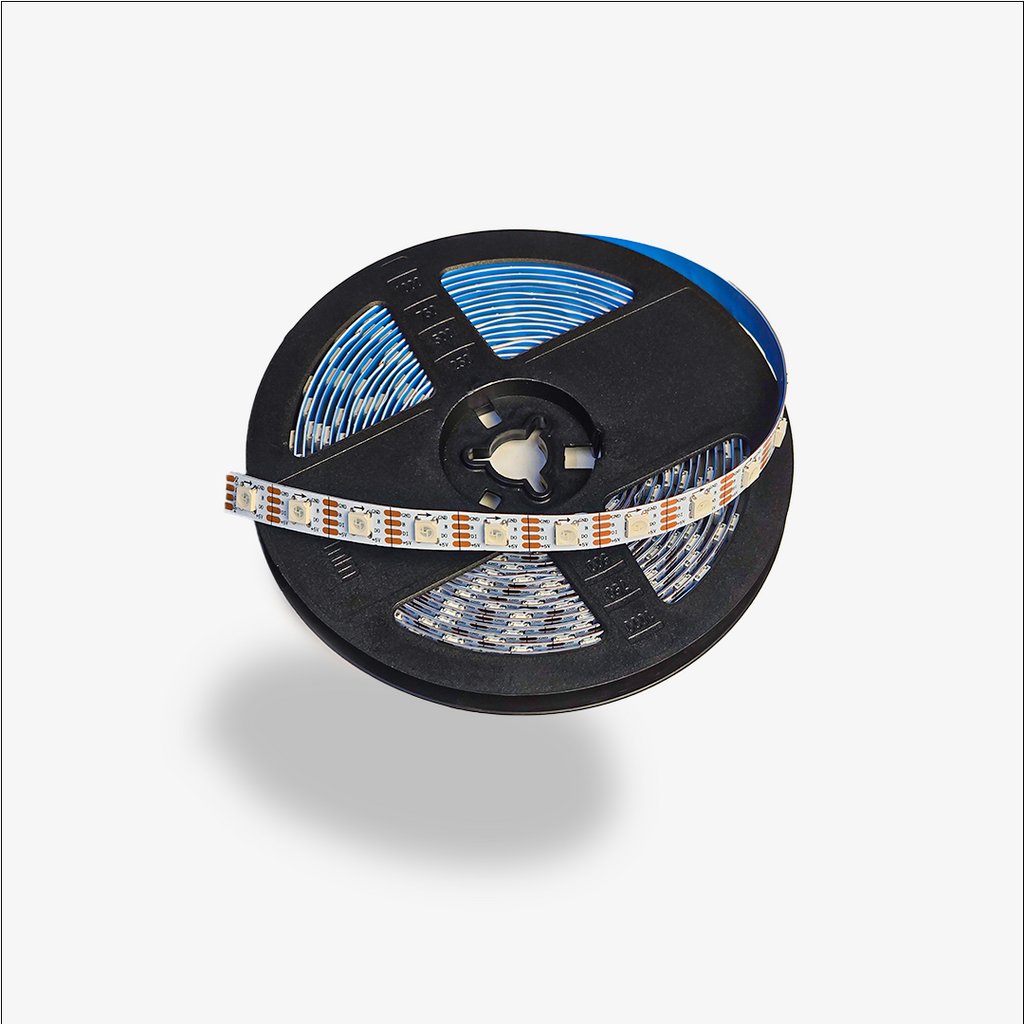

        Spool of LED strip light on a white background

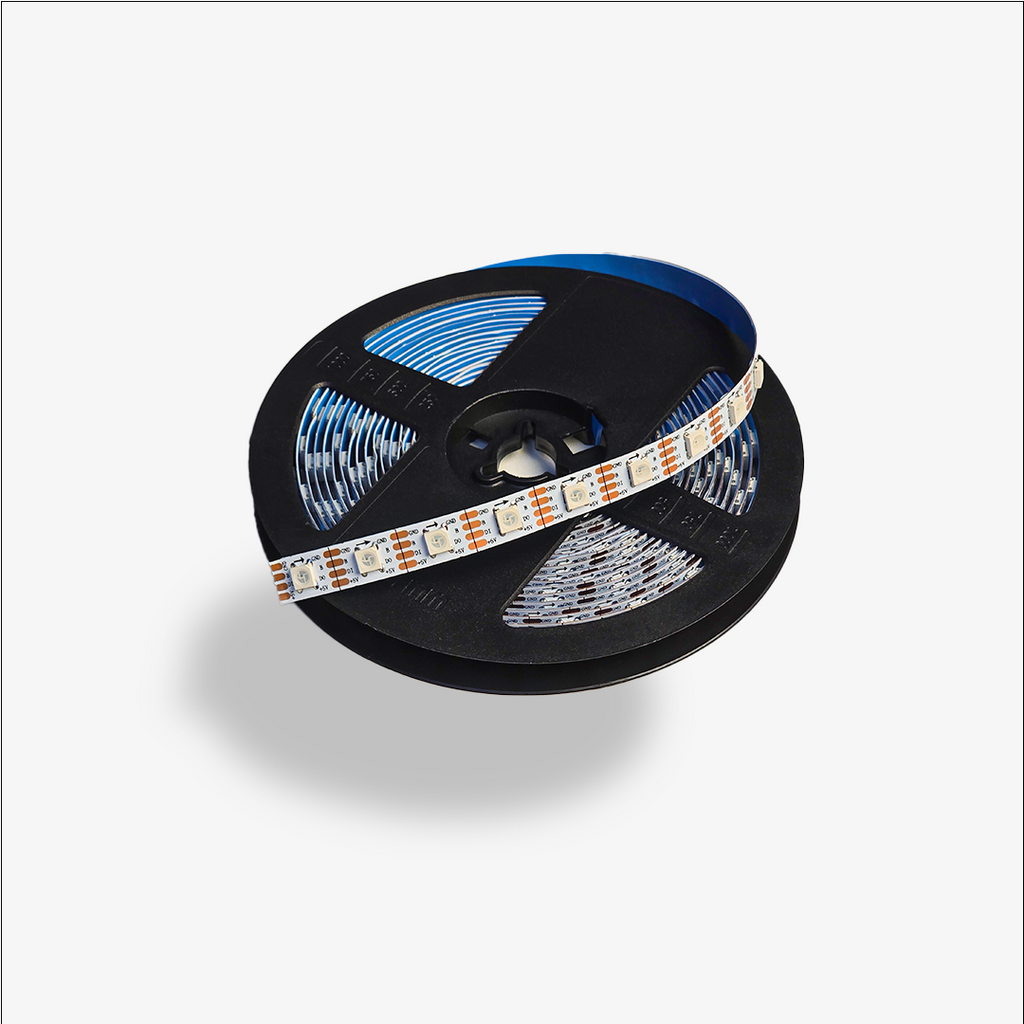

        Spool of LED strip light on a white background

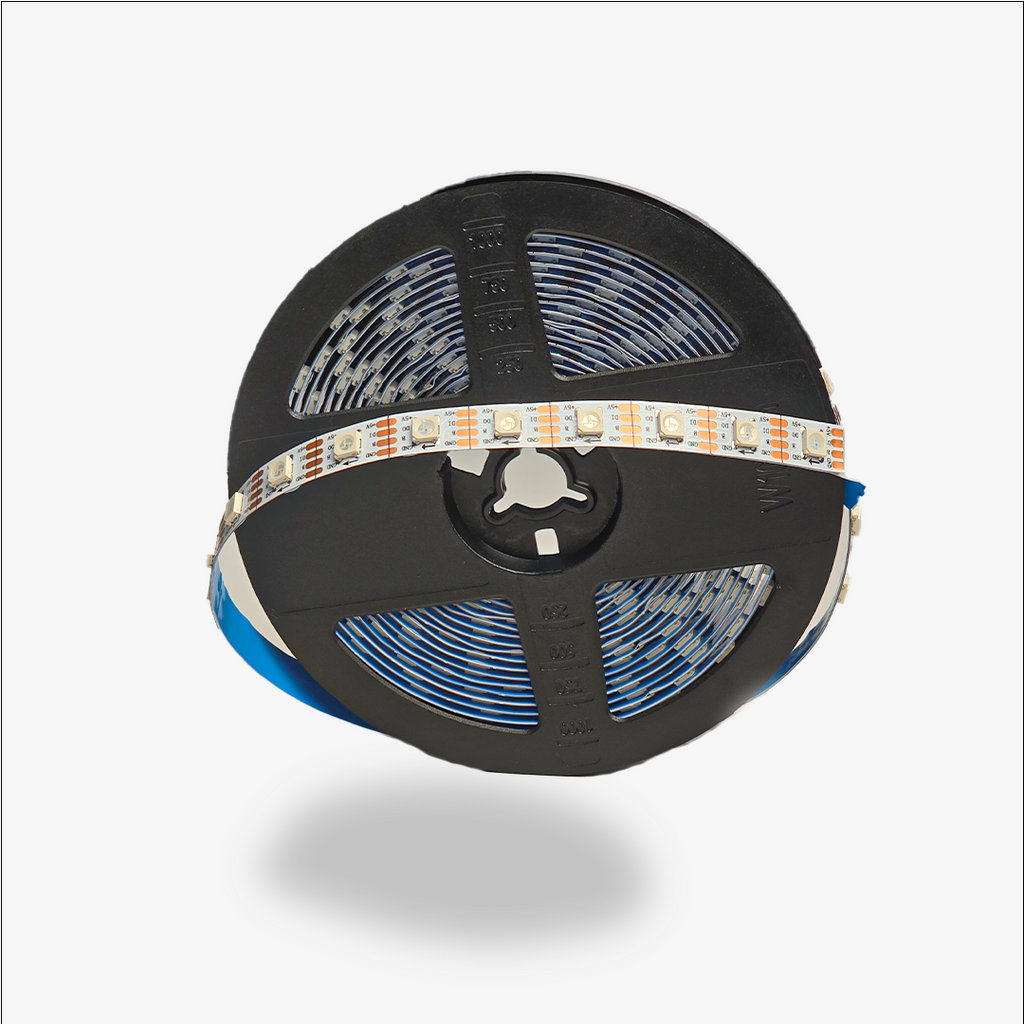

        Spool of LED strip light on a white background
        Rs. 950.00Rs. 1,100.00Save -14%
        • SKU:KE_SK6812_Z
        • Availability:199 left in stock
        • Type:PIXELL LED STRIP

        Guaranteed safe checkout

        amazon paymentsapple paygoogle paymastervisa
        The 5V Z-Connection Dual Data Pixel LED Strip is a professional SK6812 strip with dual data lines for reliable signal on long runs. 320 addressable LEDs over 5 metres, straight Z-connection, 5V. Cuttable; works with dual-data SK6812 controllers. Always check polarity before powering on.
        SpecificationDetails
        LED Count320 SK6812 pixels
        Strip Length5 metres
        Operating Voltage5V DC
        LED TypeSK6812
        Data ConfigurationDual data lines
        ConnectionZ-Connection (straight)
        Max Power~32W at full brightness

        The Koshi Electronics 5V Z-Connection Dual Data Pixel LED Strip is a professional SK6812 addressable strip with dual data lines for reliable signal on longer runs. With 320 individually addressable LEDs across 5 metres in a straight Z-connection layout, it's built for displays where signal integrity matters.

        Key Features

        • 320 SK6812 LEDs: individually addressable across 5 metres.
        • Dual data lines: backup signal path for reliability on long runs.
        • 5V DC: safe low-voltage operation.
        • Z-connection (straight): simple, clean layout.
        • Cuttable at designated points; works with dual-data SK6812 controllers.

        Specifications

        Specification Detail
        LED Count 320 SK6812 pixels
        Strip Length 5 metres
        Operating Voltage 5V DC
        LED Type SK6812
        Data Configuration Dual data lines
        Connection Z-Connection (straight)
        Max Power ~32W at full brightness

        Best For

        • Professional and long-run LED displays
        • Commercial and gallery lighting
        • Event stage and matrix displays
        • Signal-critical installations
        • Festive displays for Diwali, Navratri, Ganpati (Ganesh Chaturthi) and weddings

        How To Set Up

        1. Connect a dual-data SK6812 controller to both data lines.
        2. Connect a 5V supply — check polarity carefully; reverse connection damages the LEDs instantly.
        3. Set IC type and pixel count, then load your animation.
        4. For long runs, add power injection to keep brightness even.

        Frequently Asked Questions

        What's the benefit of dual data?
        A backup signal path improves reliability on long runs, reducing dropouts from a single data fault.

        What happens if I reverse polarity?
        The LEDs can be destroyed instantly. Always verify + and − before powering on.

        Can I cut the strip?
        Yes, at the marked cut points. Use quality connections when extending.

        What power supply do I need?
        A 5V supply rated for at least ~32W (about 6–7A) for a full strip.
