| Specification | Details |
|---|---|
| Voltage | 24V DC |
| IC Type | MT16703 / MT16704 |
| IC Count | 100 ICs |
| Length | 5 metres |
| Data Configuration | Dual data (signal redundancy) |
| Colour | RGB / RGBW (select at purchase) |

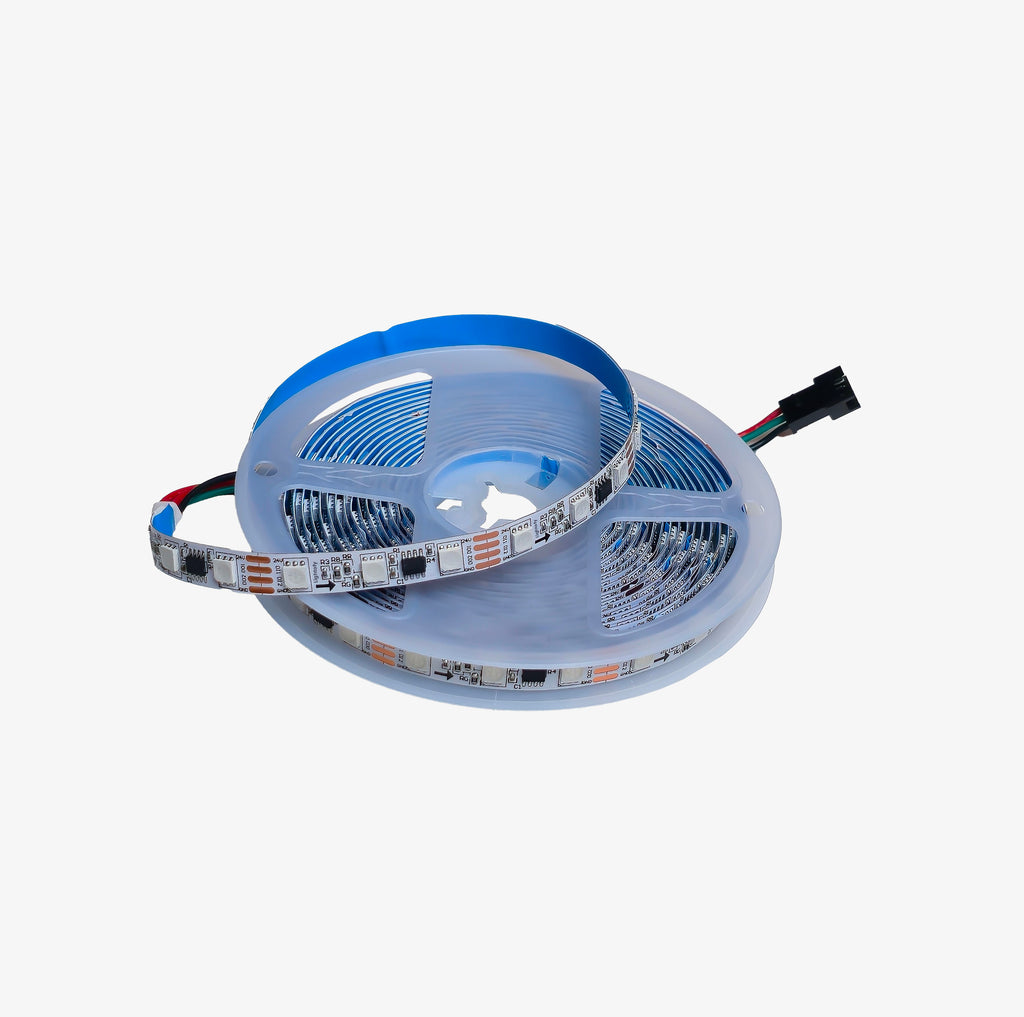

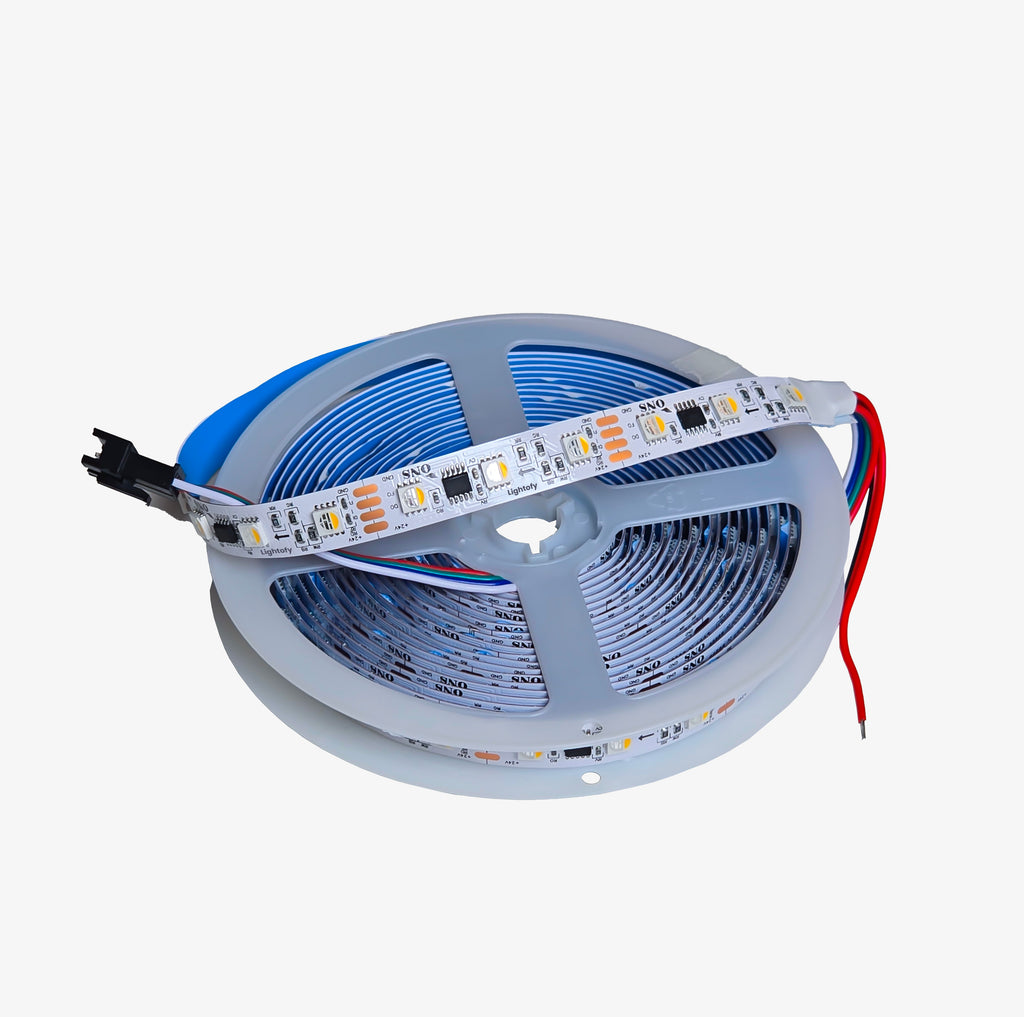

The Koshi Electronics 24V Pixel LED Dual Data Strip is an addressable RGB / RGBW strip built for large, reliable installations. It uses MT16703/MT16704 ICs with a dual-data line for signal redundancy, and runs on 24V for stable performance over long runs. With 100 ICs across a 5-metre length, it's ideal for building facades, commercial displays and professional projects.
Key Features
- 24V operation: better voltage stability over long distances than 5V/12V.
- Dual data lines: a backup signal path keeps the strip running even if one data point fails.
- RGB / RGBW: full colour with an option for a dedicated white channel.
- MT16703/MT16704 ICs: 100 ICs across the 5-metre length.
- Built for scale: suited to facades, commercial and professional installations.
Specifications
| Specification | Detail |
|---|---|
| Voltage | 24V DC |
| IC Type | MT16703 / MT16704 |
| IC Count | 100 ICs |
| Length | 5 metres |
| Data Configuration | Dual data (signal redundancy) |
| Colour | RGB / RGBW (select at purchase) |
Best For
- Building facade and architectural lighting
- Large commercial and professional installations
- Long runs needing reliable signal over distance
- RGBW colour-mixing applications
- Festive and event displays for Diwali, Navratri, Ganpati (Ganesh Chaturthi) and weddings
How To Set Up
- Mount the strip along your surface.
- Connect a 24V power supply — double-check polarity, as reverse connection damages the strip instantly.
- Connect both data lines from an MT16703/MT16704-compatible controller.
- Set the IC type and pixel count on your controller and load your animation.
- For runs beyond 5 metres, add power injection and additional strips with proper power distribution.
Frequently Asked Questions
What's the advantage of dual data?
A backup signal path keeps the strip running reliably even on long runs, reducing the chance of the display cutting out from a single data fault.
Can I use a regular WS2812 controller?
No — it needs an MT16703/MT16704-compatible controller.
Why 24V instead of 12V?
24V holds voltage better over longer distances, giving more even brightness across a long run.
Can I do RGBW colour mixing?
Yes — choose the RGBW option for a dedicated white channel alongside RGB.
How do I extend beyond 5 metres?
Add more strips with proper power distribution (power injection) and a controller that supports the total pixel count.
