▶️ Watch: Pixel LED WS2811 PVC Wire (Small PCB) Demo

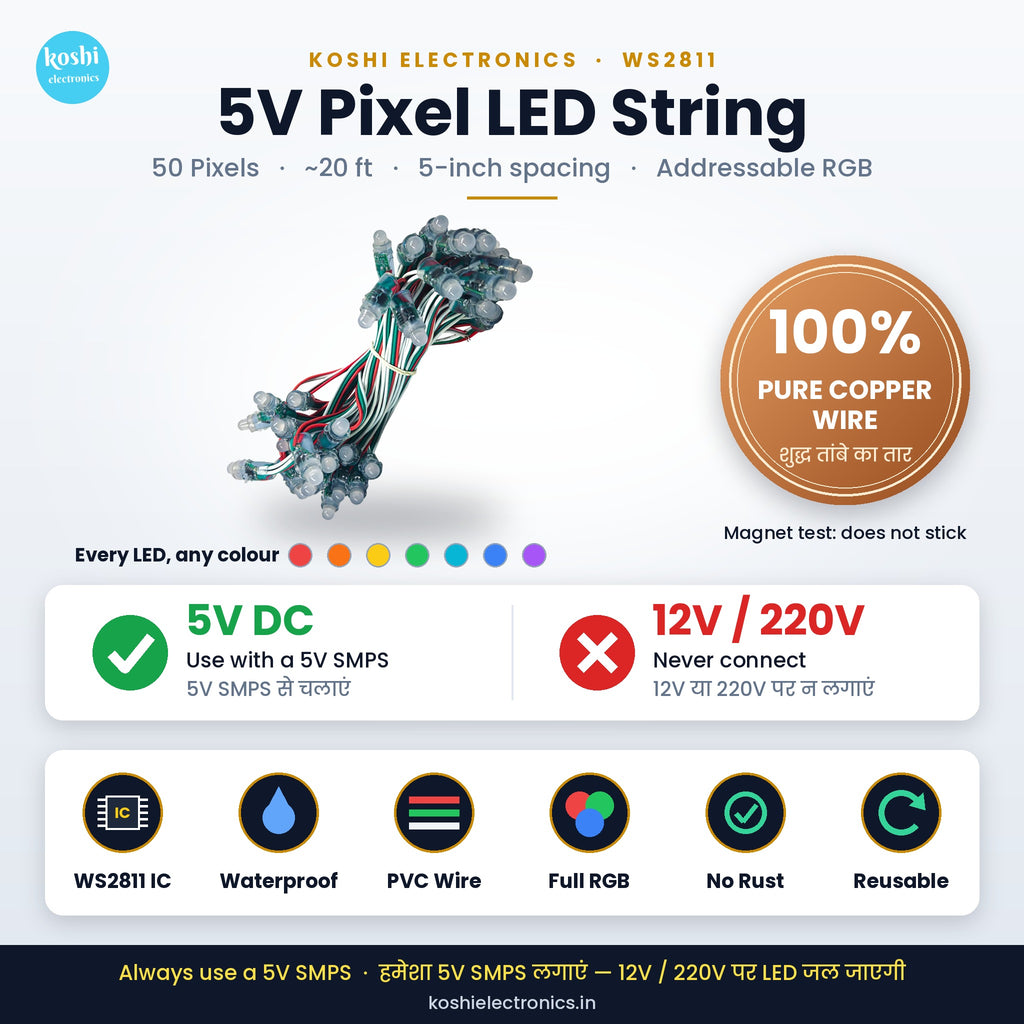

WS2811 addressable pixel LED nodes on a small PCB with durable PVC wire — 5V, ~0.3W per LED, 50 LED per bunch (~20 feet at 5-inch gap). 3/5/7-inch spacing options. Each pixel individually controllable — the core building block for Thorans, gates, building outlines and DIY pixel displays. Runs with any pixel controller + 5V SMPS.
| Specification | Details |
|---|---|
| Type | Addressable Pixel LED Node — WS2811, small PCB on PVC wire |
| IC / Chipset | WS2811 (addressable RGB) |
| Voltage | 5V DC |
| Power | Approx 0.3W per LED (~15W per 50-LED bunch) |
| Per Bunch | 50 LED |
| Length | Approx 20 feet at 5-inch spacing |
| Spacing Options | 3 inch / 5 inch / 7 inch gap |
| Colour | Full RGB — each pixel individually addressable |
| Mounting | Compact small PCB on durable PVC wire |
| Control | Works with any pixel controller (T1000S, SP621E, etc.) + 5V SMPS |
| Brand | Koshi Electronics |
The core building block of every pixel LED project. These WS2811 addressable RGB nodes are mounted on a compact PCB and strung on durable PVC wire — ideal for Thorans, gates, building outlines, signage and DIY displays. Each LED is individually controllable for unlimited colours and animations.
Specifications
| Specification | Detail |
|---|---|
| IC | WS2811 — addressable RGB |
| Voltage | 5V DC |
| Power | ~0.3W per LED (~15W per 50-LED bunch) |
| Per Bunch | 50 LED |
| Length | Approx 20 feet at 5-inch spacing |
| Spacing | 3 / 5 / 7 inch gap options |
| Colour | Full RGB — each pixel individually addressable |
| Mounting | Small PCB on durable PVC wire |
Key Features
- WS2811 addressable IC — control each pixel individually for dynamic effects
- 5V operation — just ~0.3W per LED (~15W per 50-LED bunch)
- 50 LED per bunch — ~20 feet at 5-inch spacing
- 3 / 5 / 7 inch spacing — choose to suit your design
- Compact small PCB — neat, low-profile Thoran and matrix layouts
- Durable PVC wire — reliable through repeated festival use
Big LED vs Small LED — Comparison
Curious about the difference between big and small LEDs? Watch the detailed comparison below:
Best For
- Pixel LED Thorans, gates & building fçades
- Signboards & custom DIY pixel decorations
- Diwali, Navratri, Ganpati (Ganesh Chaturthi) & weddings
DIY — How To Connect the LED
Pixel LED ko connect karna seekhein — step-by-step DIY video:
Apna pixel setup banane ke liye ye sab chahiye:
- Pixel LED Controller — Pixel LED Controllers (T1000S, SP621E, etc.)
- 5V SMPS Power Supply — 5V SMPS Power Supply
- Connectors & Wire — Cables & Connectors
Need a Ready-Made Setup?
Khud banane ke jhanjhat se bachna chahte hain? Hamara Ready-Made Pixel Setup dekhein — plug & play, ready to install.
Koshi Electronics — India's #1 Pixel LED & lighting solutions. Contact us for bulk enquiries.
Ye pixel LED kitne volt par chalti hai?
5 Volt DC par chalti hai. Iske liye 5V SMPS power supply use karein.
1 LED kitna power consume karti hai?
Approx 0.3 watt per LED. 50 LED ka 1 bunch lagbhag 15W leta hai — SMPS isi hisaab se select karein.
1 bunch mein kitni LED aur kitni length hoti hai?
50 LED per bunch. 5-inch gap par approx 20 feet length banti hai.
Spacing ke kya options hain?
3 inch, 5 inch aur 7 inch gap available hai — apne design ke hisaab se chunein.
Ye addressable hai?
Haan, WS2811 addressable RGB — har pixel individually control hota hai, dream-colour aur chasing effects ke liye.
LED ko connect kaise karein?
Upar diya DIY video dekhein. Controller ka DATA out first pixel ke DATA-IN se jodein (arrow direction follow karein), aur +ve / GND match karein.
Isko chalane ke liye aur kya chahiye?
Ek pixel LED controller (jaise T1000S ya SP621E) aur ek 5V SMPS power supply. Dono Koshi Electronics par available hain.
Big LED aur Small LED mein kya farak hai?
Upar comparison video dekhein — size, brightness aur use-case ka farak detail mein dikhaya gaya hai.
