WS2811 5-Inch Pixel LED Module 20 feet ki addressable RGB LED string hai jisme har LED ke beech 5 inch ka gap hai. WS2811 IC hai jo T1000S, W1000-PRO, T8000 ke saath kaam karta hai. Small PCB standard brightness ke liye, Big PCB zyada bright ke liye. Thoran, festival decoration aur tree lighting ke liye popular.
| Specification | Details |
|---|---|
| IC | WS2811 (addressable RGB) |
| Gap Between LEDs | 5 inches (~12.5 cm) |
| Length | 20 feet per string |
| Wire | Copper, PVC cover |
| Colour | RGB (full colour changing) |
| PCB Options | Small PCB (standard brightness) / Big PCB (higher brightness) |
| Voltage | 12V DC |
| Compatible Controllers | T1000S, W1000-PRO, T8000, SP108E, all WS2811-compatible |
| Application | Thoran, tree decoration, gate lighting, festival strings |
| Brand | Koshi Electronics |

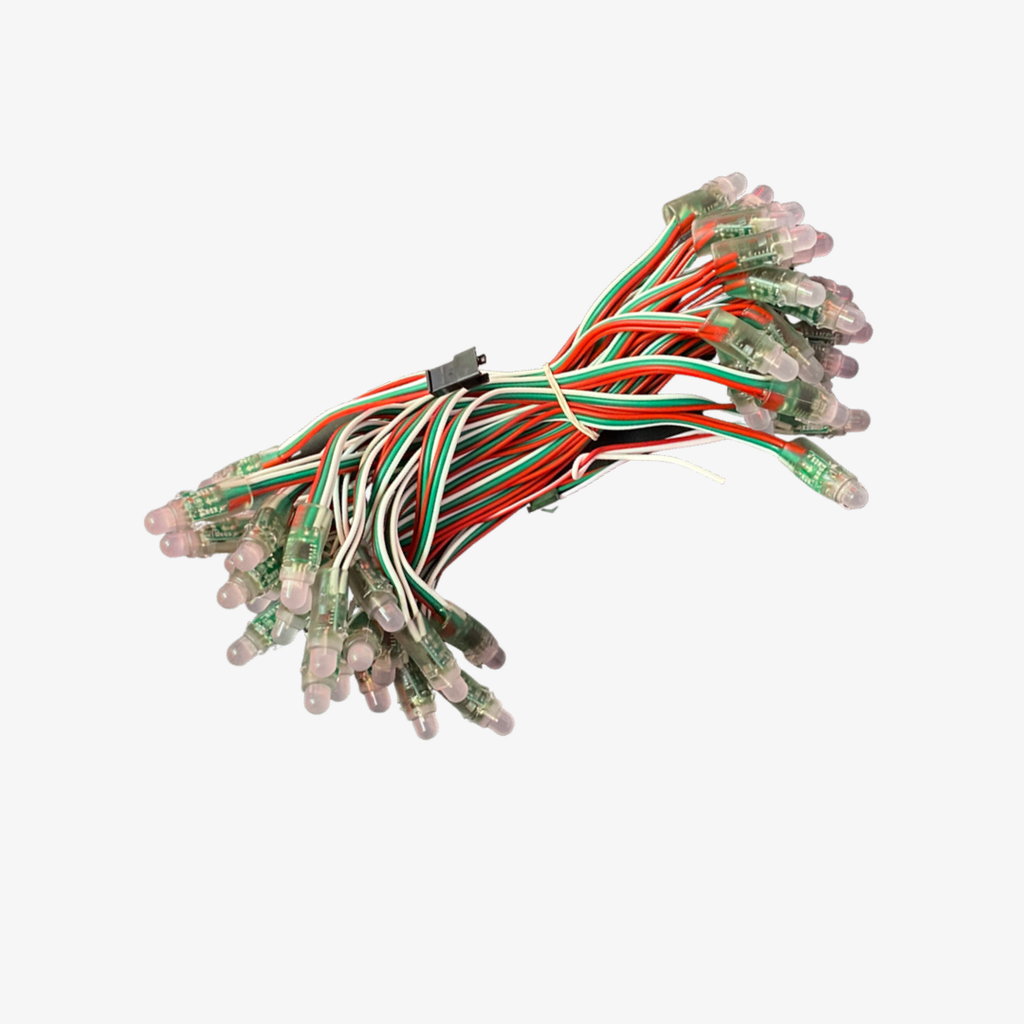

PIXEL LED WS2811 — 5 INCH SPACING ADDRESSABLE RGB STRING
Koshi Electronics ka WS2811 5-Inch Pixel LED ek 20-feet addressable RGB pixel LED string hai jisme har LED ke beech 5 inch (approx 12.5cm) ka gap hota hai. WS2811 IC hai jo individually controllable hai — T1000S, W1000-PRO, T8000 aur doosre pixel controllers ke saath directly use karo. 2 PCB size variants available hain.

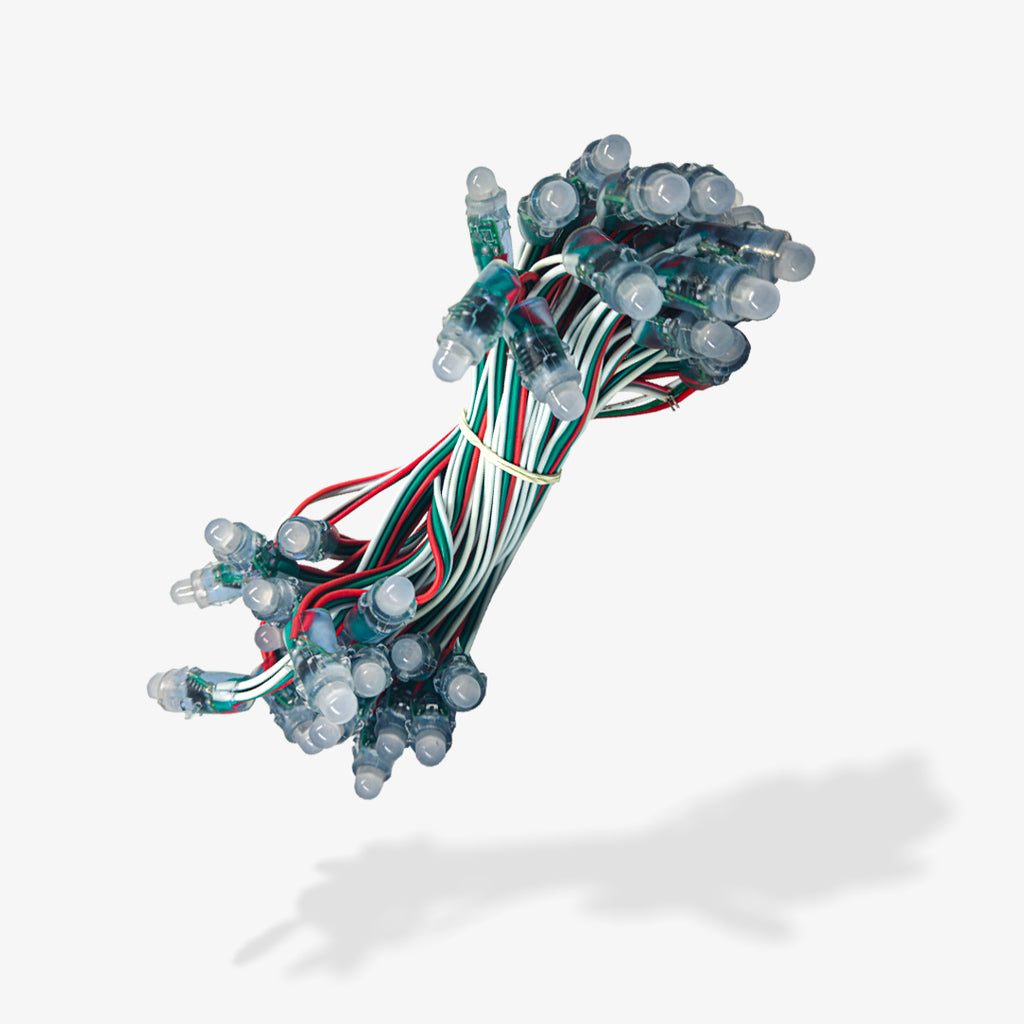

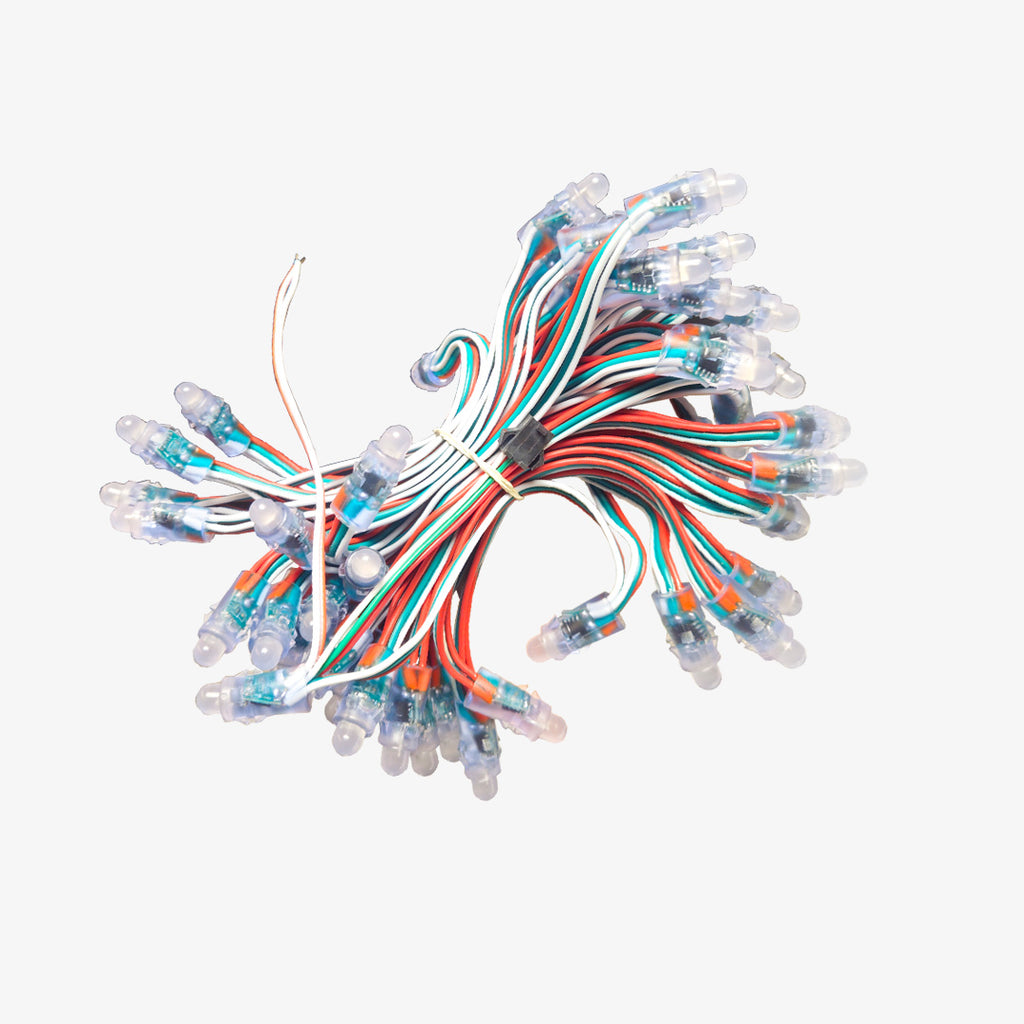

Small PCB vs Big PCB
| Feature | Small PCB | Big PCB |
|---|---|---|
| PCB Size | Small compact board | Larger board |
| Brightness | Standard | Higher (more LEDs) |
| Best For | Standard decoration, Thoran | Brighter setups, high-visibility |
Key Specifications
- IC: WS2811 (Addressable RGB)
- Gap Between LEDs: 5 inches (approx 12.5 cm)
- Length: 20 feet per string
- Wire: Copper, PVC cover
- Colour: RGB full colour changing
- Compatible Controllers: T1000S, W1000-PRO, T8000, SP108E aur all WS2811-compatible controllers
Small PCB aur Big PCB mein kaun sa lena chahiye?
Standard Thoran ya decoration ke liye Small PCB kaafi hai. Zyada bright aur high-visibility setups ke liye Big PCB lo.
Is module ke liye kaun sa controller chahiye?
WS2811 IC hai — T1000S, W1000-PRO, T8000, SP108E sab compatible. Controller alag se purchase karo.
5 inch gap kyun hota hai?
5 inch spacing wide-area decoration ke liye best — Thoran, tree wrapping aur building outline mein spacing acha dikhta hai. Close spacing ke liye 3 inch ya 1 inch variants dekhein.
Voltage kya hai — 5V ya 12V?
WS2811 module typically 12V pe run hota hai. Controller ke saath 12V SMPS use karo.
Ek string se kitna area cover hota hai?
20 feet (approx 6 metre) ki string. Thoran ke liye multiple strings parallel mein connect kar sakte ho.
