| Specification | Details |
|---|---|
| Input Voltage | 220V AC (50Hz) |
| Number of Channels | 8 or 16 (selectable) |
| Maximum Load Per Channel | 300W |
| Total Maximum Load | 2400W / 2.4KW (8-channel) or 4800W / 4.8KW (16-channel) |
| Output Type | AC (relay-switched, direct mains) |
| Switching Type | Electro-mechanical relay |
| Animation Effects | 50+ |
| Speed Range | Fully adjustable |
| Control Circuit | Isolated from AC output |
| Connector Type | Heavy-duty screw terminals |
| Warranty | No warranty — relay damage from wrong connection or short circuit is not covered |

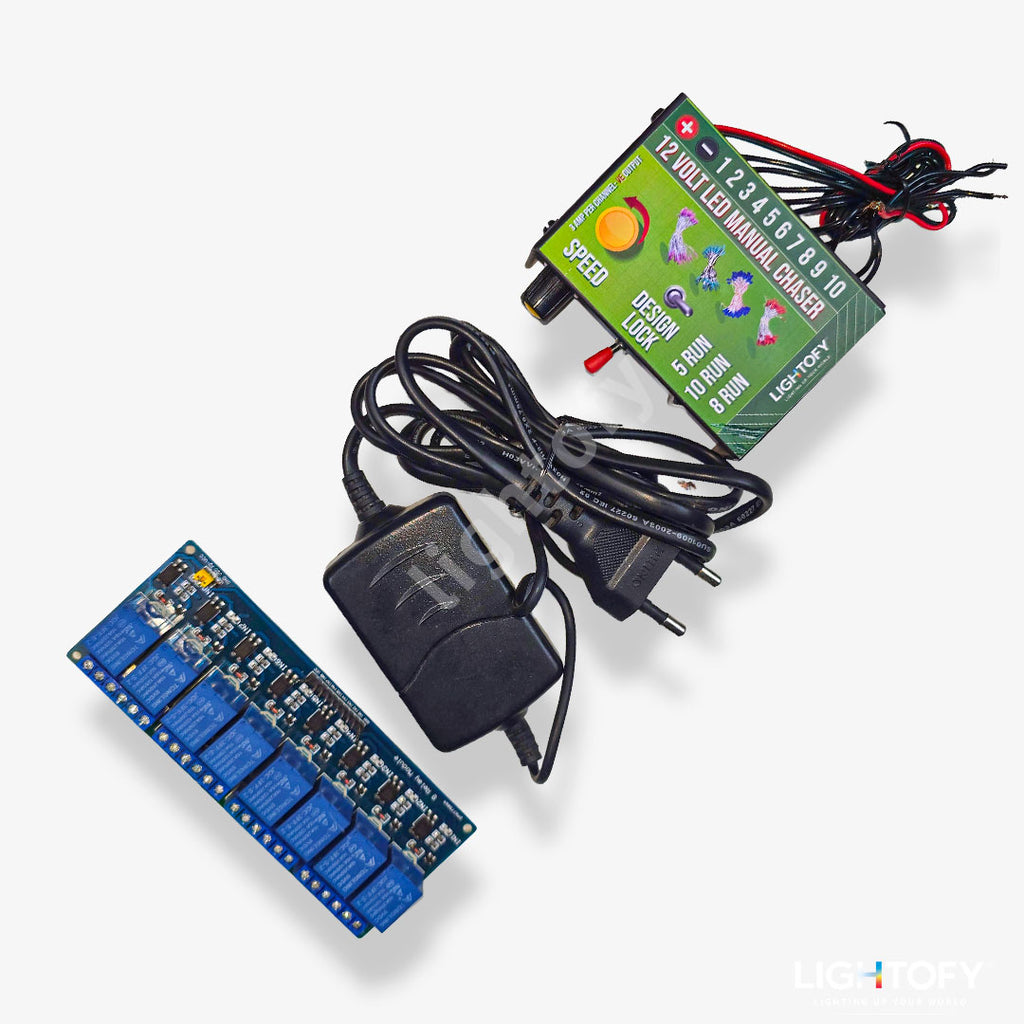

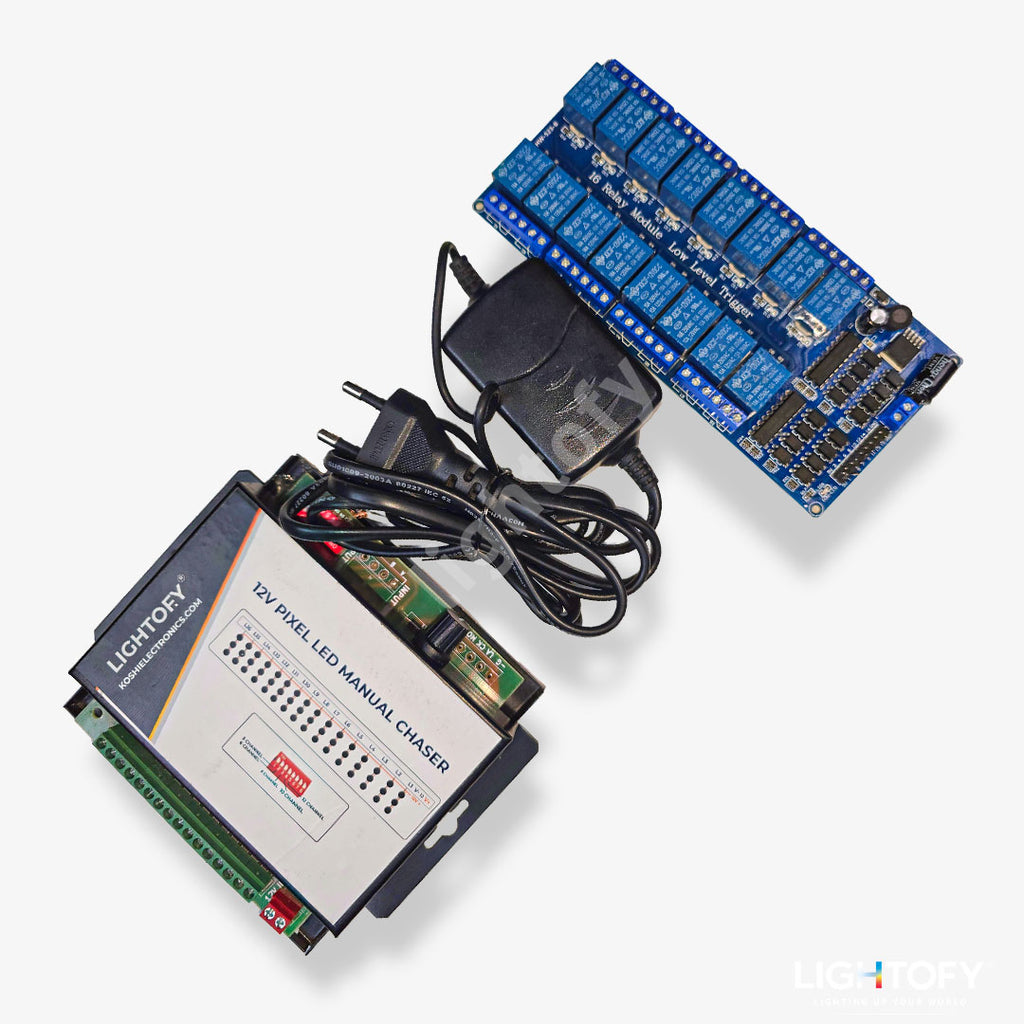

Transform your 220V AC decoration lights into a professional running-light show with this relay-based LED chaser kit. Designed for electricians, event decorators and commercial installations, the 220V AC Chaser Kit uses electro-mechanical relay switching and delivers 300W per channel — ideal for decorative lights, LED belts and sign boards.
What Is It?
This is a relay-based AC-powered LED chaser that drives 8 to 16 independent channels of 220V AC single-colour lights. It switches each channel with an electro-mechanical relay and connects directly to your mains power — no separate power supply needed — perfect for decorations, shop signage and event installations.
Key Features
- Selectable 8 or 16 Channels — choose 8-channel for smaller setups or 16-channel for large installations.
- 300W Per Channel — each channel handles up to 300W of load independently.
- 220V AC Direct Operation — no power supply needed; connects directly to the wall outlet.
- 50+ Pre-Programmed Effects — runners, chasers, strobes, sparkles, theatre effects and more.
- Speed Control Knob — adjust animation from slow to fast in real time.
- Heavy-Duty Construction — built for commercial and professional-grade installations.
- Relay-Based Switching — robust electro-mechanical relays, with the control circuit isolated from the AC output.
- Compact Professional Design — fits in any electrical cabinet or control enclosure.
Technical Specifications
| Specification | Detail |
|---|---|
| Input Voltage | 220V AC (50Hz) |
| Number of Channels | 8 or 16 (selectable) |
| Maximum Load Per Channel | 300W |
| Total Maximum Load | 2400W / 2.4KW (8-channel) or 4800W / 4.8KW (16-channel) |
| Output Type | AC (relay-switched, direct mains) |
| Switching Type | Electro-mechanical relay |
| Animation Effects | 50+ |
| Speed Range | Fully adjustable |
| Control Circuit | Isolated from AC output |
| Connector Type | Heavy-duty screw terminals |
| Warranty | No warranty — relay damage from wrong connection or short circuit is not covered |
Perfect For
- Shop & store entrance running lights
- Commercial building facade decoration
- Festival & holiday light displays
- Wedding & event tent decoration
- DJ & concert stage lighting
- Professional electrician projects
- Advertisement board animations
- Hotel & restaurant entrance lighting
- Large-scale decorative installations
- Sign boards & directional lighting
How It Works
- Connect to power: plug the controller into a 220V AC wall outlet or electrical panel.
- Connect output lights: wire your 8 or 16 groups of AC lights to the corresponding output channels.
- Power on: switch on and animations begin immediately.
- Adjust effects: use the mode selector to choose between 50+ animation patterns.
- Control speed: turn the speed knob to adjust how fast the effects run.
Installation takes 15–20 minutes. No special tools or software needed.
What's Included
- 1 × 220V AC Chaser Controller (8 or 16 channel)
- Heavy-duty terminal blocks
- Electrical installation guide
- Note: AC lights sold separately
Warranty
This product carries no warranty. The relay output can be damaged by an incorrect connection (wrong wiring) or a short circuit during installation — these are installation faults, not manufacturing defects, so no guarantee is provided. Please double-check every connection before switching the controller on.
Why Choose Koshi Electronics?
- India's #1 professional LED controller — trusted by electricians nationwide
- 147,000+ YouTube subscribers — see real professional installations
- Heavy-duty quality — built for commercial use and years of operation
- Expert electrical support — help from professionals who understand 220V systems
FAQ
Can I control 12V LED lights with this?
No, this is for 220V AC lights only. For 12V or 5V, use our DC controllers.
What's the difference between the 8 and 16 channel versions?
8-channel is for smaller setups, 16-channel for larger installations. Both have the same power per channel (300W).
Do I need a separate power supply?
No — this connects directly to 220V mains. No power supply needed.
Can I run multiple kits in sync?
No — this kit has no synchronization option. Each unit runs on its own.
Is this safe for outdoor use?
The controller should be installed in a weatherproof enclosure, and your AC lights should be rated IP65 or higher.
What kind of lights can I control?
Any 220V AC decorative lights, including LED belts, bulbs, rope lights and sign board lights.
How do I choose the load for each channel?
Total load per channel cannot exceed 300W. So 8 channels = up to 2400W (2.4KW) total, or 16 channels = up to 4800W (4.8KW) total.
