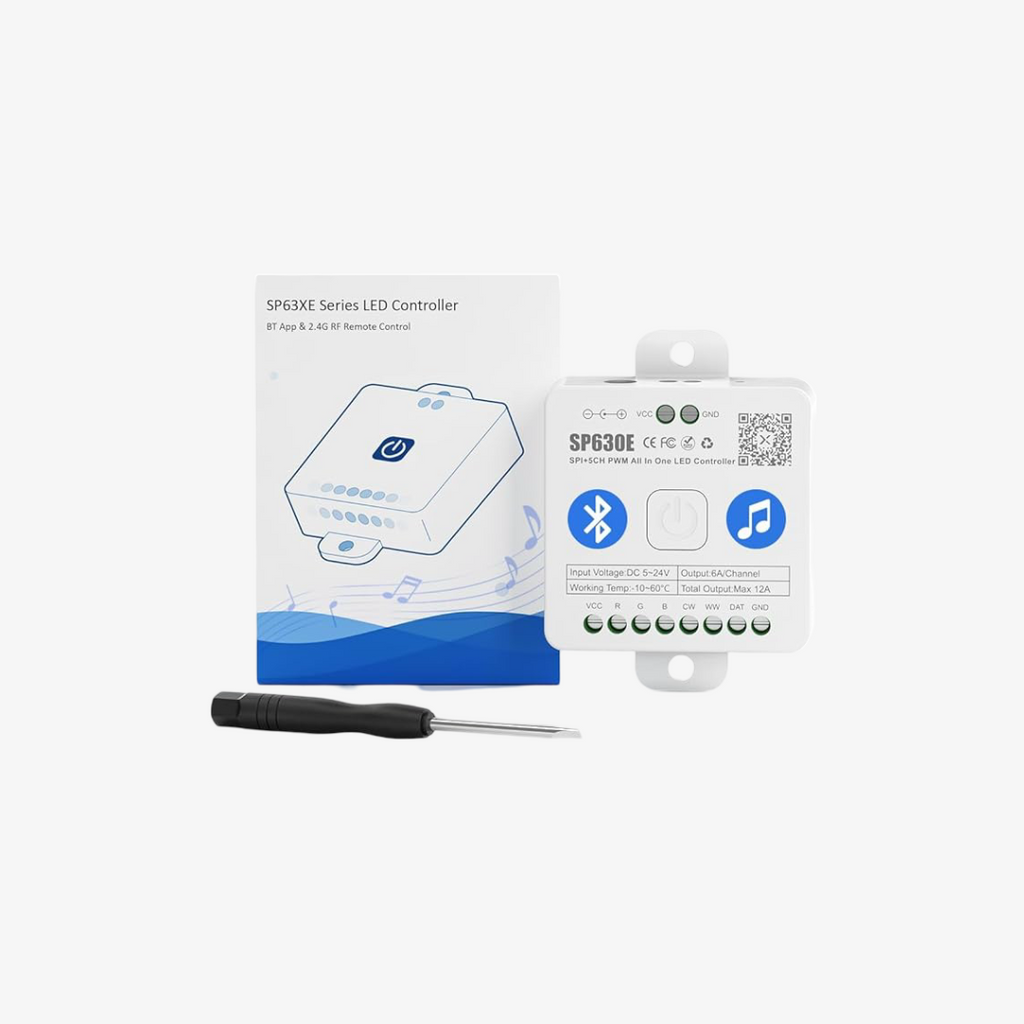

The SP630E is an all-in-one SPI + 5CH PWM pixel LED controller that works with 12 types of LEDs — addressable strips (WS2811, WS2812, SK6812, FCOB), single colour, CCT, RGB, RGBW, RGBCCT and combined addressable+PWM. It runs on DC 5–24V, supports up to 2048 pixels, and is controlled via the BanlanX app, a 2.4G touch remote, or an 86-type touch panel with zone control (up to 4 zones). With 3 music capture modes and a built-in Bluetooth microprocessor, it suits both decorative pixel setups and single-colour / white tunable lighting.
| Specification | Details |
|---|---|
| Type | All-in-one SPI + 5CH PWM LED controller |
| Voltage | DC 5–24V |
| Max pixels | Up to 2048 pixels |
| LED compatibility | 12 types — W / CCT / RGB / RGBW / RGBCCT PWM & addressable |
| IC support | WS2811 / WS2812B / SK6812 / FCOB 5050 |
| Signal input | DMX512 / SPI / TTL |
| Control | BanlanX app, 2.4G touch remote, 86-type touch panel |
| Zone control | Up to 4 zones or unified (ALL) |
| Music modes | Phone mic, player streaming, onboard mic |
| App pages | Dynamic, static, music, custom, settings |
| App | BanlanX (iOS 10+ / Android 4.4+) |
The SP630E is an all-in-one SPI + 5-channel PWM pixel LED controller that drives 12 types of LED — addressable strips plus single colour, CCT, RGB, RGBW and RGBCCT. One controller for almost any LED project, with app, remote and touch-panel control and built-in zone management.
Key Features
- All-in-one — SPI (addressable) + 5CH PWM (analogue) in one unit
- 12 LED types — WS2811, WS2812, SK6812, FCOB + single colour, CCT, RGB, RGBW, RGBCCT
- Triple control — BanlanX app, 2.4G touch remote, or 86-type touch panel
- Zone control — manage up to 4 zones independently
- Music modes — 3 music-capture modes for sound-reactive effects
- Built-in Bluetooth microprocessor
Specifications
| Specification | Detail |
|---|---|
| Model | SP630E |
| Output | SPI + 5CH PWM |
| Operating Voltage | DC 5–24V |
| Max Pixels | Up to 2048 |
| Control | BanlanX app / 2.4G remote / 86 touch panel |
| Zones | Up to 4 |
Quick Setup
- Connect your LED type to the correct output (SPI for addressable, PWM channels for single colour/CCT/RGB/RGBW).
- Power from a matching DC 5–24V supply.
- Pair with the BanlanX app (or remote / touch panel) and select your LED type.
- Set pixel count and zones, choose an effect or music mode, and save.
Best For
- Mixed setups needing both pixel & single-colour/tunable-white control
- Home, accent and zoned room lighting
- Diwali, Navratri, Ganpati (Ganesh Chaturthi) & weddings
Frequently Asked Questions
Q: What can the SP630E control?
12 LED types — addressable (WS2811/WS2812/SK6812/FCOB) and analogue single colour, CCT, RGB, RGBW and RGBCCT.
Q: How is it controlled?
BanlanX app over Bluetooth, a 2.4G touch remote, or an 86-type wall touch panel.
Q: Can it run different effects in different areas?
Yes — up to 4 independent zones.
Q: Does it support music sync?
Yes — 3 music-capture modes for sound-reactive lighting.
Ye kaunse LED chala sakta hai?
SP630E 12 type ke LEDs ke saath compatible hai — addressable pixel LEDs (WS2811, WS2812, SK6812, FCOB) ke saath single colour, CCT, RGB, RGBW aur RGBCCT PWM LEDs bhi. Addressable + PWM combined bhi chalta hai.
Maximum kitne pixel support karta hai?
2048 pixels tak. Signal input DMX512, SPI ya TTL ho sakta hai, aur DC 5–24V par chalta hai.
Kaise control hota hai?
Teen tariko se — BanlanX mobile app, 2.4G touch remote, ya 86-type touch control panel. App iOS 10+ aur Android 4.4+ par chalta hai.
Zone control kya hai?
Remote aur 86-type panel se aap lights ko 4 zones mein divide karke alag-alag control kar sakte hain, ya sabko ek saath (ALL) control kar sakte hain.
Music mode kaise kaam karta hai?
3 music capture modes hain — phone ka microphone, player streaming, aur controller ka onboard microphone. LEDs music ke beat par react karti hain.
App mein kya features milte hain?
5 main pages — dynamic, static, music, custom aur settings. Device name change, colour order correction, timer aur power-on state settings bhi milte hain.
