| Specification | Details |
|---|---|
| Type | Bluetooth music pixel LED controller |
| Operating Modes | Matrix mode & Linear mode |
| Max LEDs | 960 pixels |
| Input Voltage | 5V–24V DC (common ground with LED strip) |
| Working Current | 20mA–130mA |
| Working Temperature | −20°C to 60°C |
| Bluetooth Range | Up to 30 metres |
| Control | LED Chord app (iOS & Android) via Bluetooth — no WiFi router needed |
| Music Input | Built-in microphone + external AUX input |
| Effects | 180+ built-in (music, static, chasing, breathing, rainbow & more) |
| RGB IC Support | WS2811, WS2812B, SK6812, TM1803, TM1814, UCS1903 & more |
| RGBW IC Support | TM1814 RGBW, TM1824 RGBW (select SK6812 RGBW), SK6812 RGBW |
| Product Size | 85 × 45 × 22 mm |
| Product Weight | 40 g |
| Certificates | CE, RoHS |
| Best For | Home, DJ, party, shop, car interior lighting |
The SP107E is a Bluetooth music pixel LED controller that syncs your addressable LED effects to music in real time. It has a built-in microphone plus an external AUX input, runs on a wide 5V–24V supply, and is controlled from your phone through the free LED Chord app (iOS & Android) — no WiFi router needed. With two operating modes (Matrix and Linear) and 180+ built-in effects, it's ideal for home, DJ, party, shop and car interior lighting.
Two Modes — Matrix & Linear
| Mode | Best For |
|---|---|
| Matrix Mode | Different music spectrum patterns — sound-reactive effects only |
| Linear Mode | Long LED strips & single runs — chasing, flowing and music effects |
Maximum capacity: up to 960 pixels.
Key Features

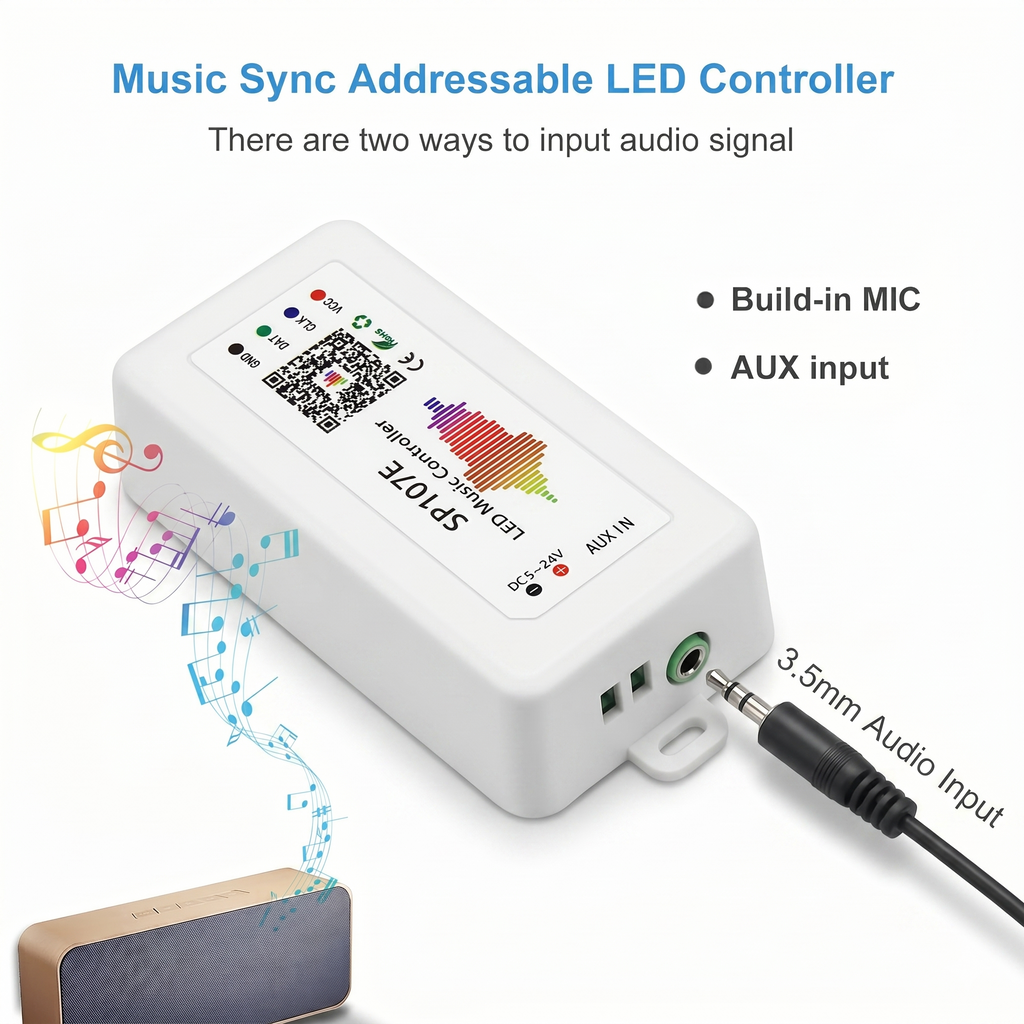

- Music reactive — mic + AUX: a built-in microphone picks up any sound, and an external AUX input lets you feed audio directly for cleaner, more accurate beat sync.
- Two modes: Matrix mode for music spectrum patterns and Linear mode for strips.
- Up to 960 pixels: drives addressable LED setups up to 960 pixels.
- Wide 5–24V input: works with 5V, 12V and 24V addressable LEDs.
- App controlled: set colours, effects, brightness and speed from the free LED Chord app (iOS & Android) over Bluetooth — no WiFi router required.
- 180+ built-in effects: music, static, chasing, breathing, rainbow and more.
- Wide IC support: works with most popular addressable ICs, including RGBW types.
- Compact size: just 85 × 45 × 22 mm — fits easily inside enclosures, behind TVs, in cars and display cases.
Supported LED ICs
The SP107E works with most popular addressable LED ICs, including:
- RGB: WS2811, WS2812B, SK6812, TM1803, TM1814, UCS1903, and more
- RGBW: TM1814 RGBW, TM1824 RGBW (select SK6812 RGBW in the app for TM1824), SK6812 RGBW
Specifications
| Specification | Detail |
|---|---|
| Type | Bluetooth music pixel LED controller |
| Operating Modes | Matrix mode & Linear mode |
| Max LEDs | 960 pixels |
| Input Voltage | 5V–24V DC (common ground with LED strip) |
| Working Current | 20mA–130mA |
| Working Temperature | −20°C to 60°C |
| Bluetooth Range | Up to 30 metres |
| Control | LED Chord app (iOS & Android) via Bluetooth — no WiFi router needed |
| Music Input | Built-in microphone + external AUX input |
| Effects | 180+ built-in (music, static, chasing, breathing, rainbow & more) |
| RGB IC Support | WS2811, WS2812B, SK6812, TM1803, TM1814, UCS1903 & more |
| RGBW IC Support | TM1814 RGBW, TM1824 RGBW (select SK6812 RGBW), SK6812 RGBW |
| Product Size | 85 × 45 × 22 mm |
| Product Weight | 40 g |
| Certificates | CE, RoHS |
| Best For | Home, DJ, party, shop, car interior lighting |

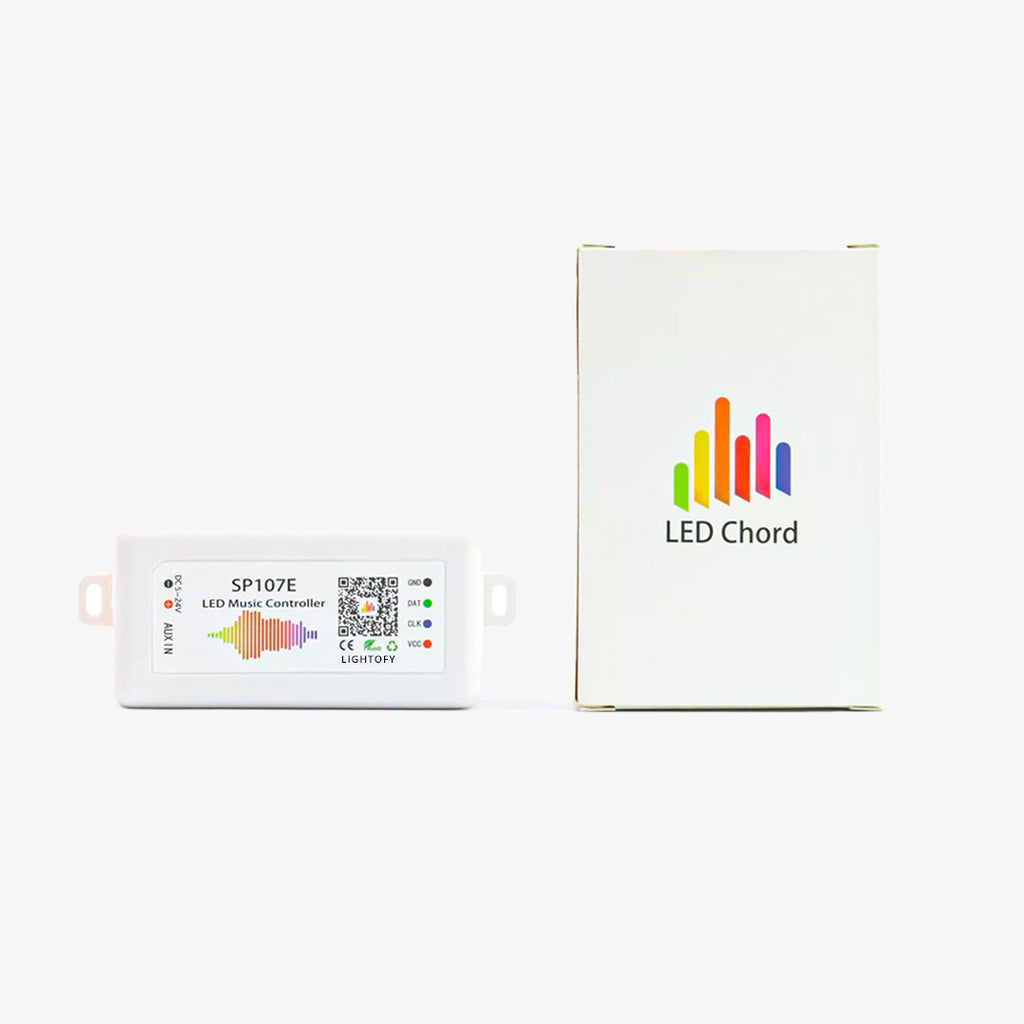

Package Includes
- 1 × SP107E Music LED Controller
- 1 × User Manual
Note: the LED strip and power supply are sold separately.
User Manual — How To Set Up
Step 1 — Wire the Controller
Connect your power supply to the controller's input (anywhere from 5V to 24V, matching your LED strip's voltage). Connect the LED strip's data, + and − to the controller's output. Always keep a common ground between the controller and the LED strip.
The SP107E's onboard PCB is not designed to carry the full current of a large LED setup. If you connect more than about 5 metres of strip, do not run all the power through the controller — take only the GND (ground) and DATA from the SP107E, and feed the strip's +5V/+12V/+24V power directly from the SMPS (power injection). Running the full load through the controller's PCB can damage the board. For big setups, always power the LEDs directly from the power supply and use the controller for data and a shared ground only.

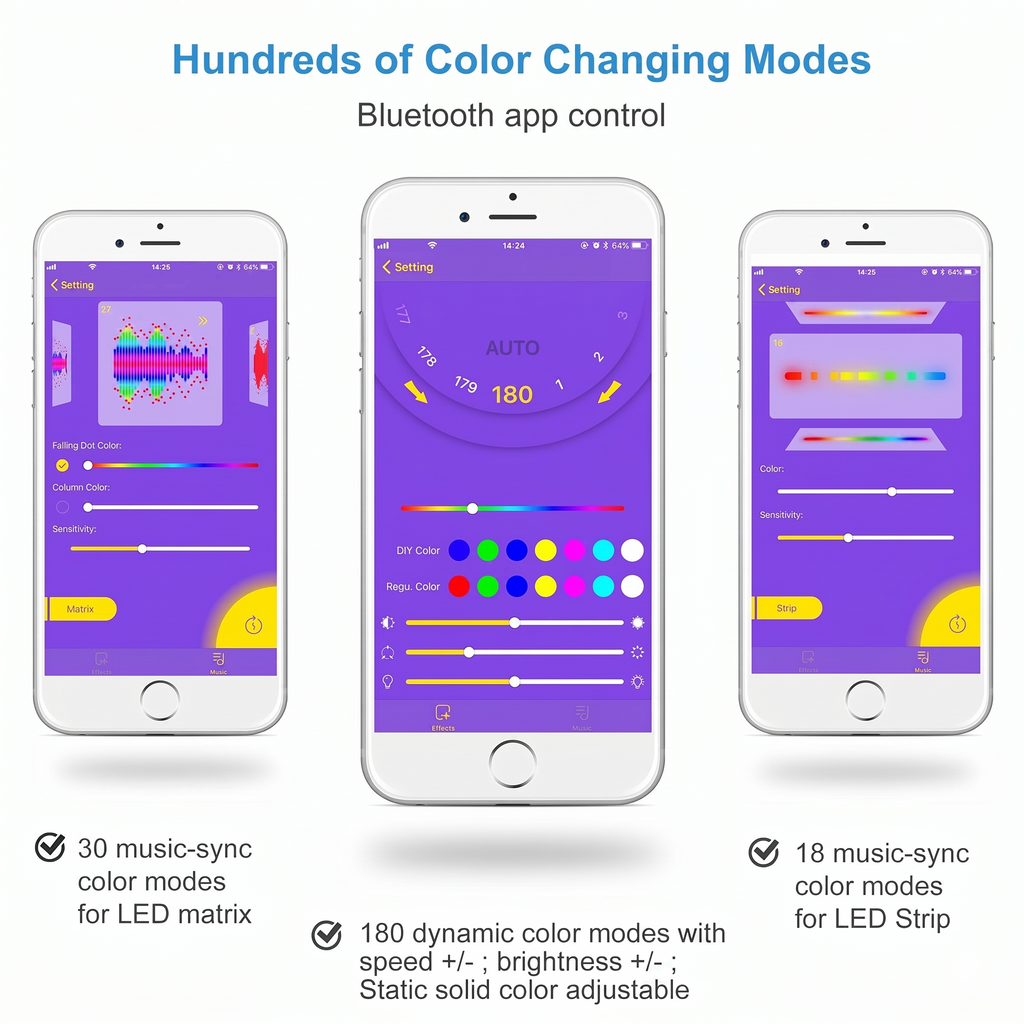

Step 2 — Install the LED Chord App
Download the free LED Chord app from the Apple App Store or Google Play. Turn on Bluetooth on your phone, open the app and connect to the SP107E. No WiFi router or internet is needed — the connection is direct over Bluetooth, and works up to about 30 metres.
Step 3 — Set Your IC & LED Count
In the app, select your LED IC type (for example WS2811, WS2812B, SK6812, or for TM1824 RGBW choose SK6812 RGBW), then choose your mode — Matrix mode for music spectrum patterns, or Linear mode for strips and single runs. Enter the number of LEDs you have connected (up to 960) so the effects map correctly.
Step 4 — Run Effects & Music Mode
Pick from 180+ effects and adjust colour, brightness and speed in the app. For music mode, choose between the built-in microphone (picks up room sound) or the external AUX input (feed audio directly for cleaner, more accurate sync). The lights will pulse, chase and colour-shift with the beat in real time.
Frequently Asked Questions
Which app controls the SP107E?
The free LED Chord app, available for both iOS and Android. It connects over Bluetooth — no WiFi router needed.
How does music mode work?
It has two options: a built-in microphone that picks up any sound in the room, and an external AUX input you can plug audio into directly for cleaner, more accurate beat sync. The lights react in real time.
What's the difference between Matrix and Linear mode?
Matrix mode is for different music spectrum patterns (sound-reactive effects), while Linear mode is for strips and single runs. Both support up to 960 pixels.
How many LEDs can it control?
Up to 960 pixels.
What voltage does it need?
It works on a wide 5V to 24V supply — just match the voltage of your LED strip, and keep a common ground between the controller and strip.
I want to run a long strip — how do I avoid damaging the controller?
For more than about 5 metres of strip, use power injection: take only the GND and DATA from the SP107E, and power the LED strip directly from your SMPS. Running the full current of a big setup through the controller's PCB can damage the board.
Which LED ICs are supported?
Most popular addressable ICs — RGB: WS2811, WS2812B, SK6812, TM1803, TM1814, UCS1903 and more. RGBW: TM1814 RGBW, TM1824 RGBW (select SK6812 RGBW in the app) and SK6812 RGBW.
Can it run RGBW strips?
Yes — it supports RGBW ICs. For TM1824 RGBW, simply select the SK6812 RGBW option in the app.
Do the LED strip and power supply come with it?
No — the LED strip and power supply are sold separately. The package includes the SP107E controller and a user manual.
