| Specification | Details |
|---|---|
| Pixel Pitch | 6 mm |
| Matrix | 32×32 dots per module |
| Colour | Full Colour RGB |
| Type | Outdoor Waterproof |
| HUB Interface | HUB75 |
| Compatible Controllers | All types — WF1/WF2/WF4, DIY ESP8266/ESP32, HUIDU D16 and above |
| Recommended SMPS | ~10 A per module; 5V 60A slim powers up to 6 modules; 5V 40A slim for small projects |
| Included Cables | Power cable + FRC (free with each module) |
| Optimal Viewing Distance | 5–10 metres |
| Application | Outdoor commercial displays, shop fronts, hoardings |
| Vendor | Koshi Electronics |

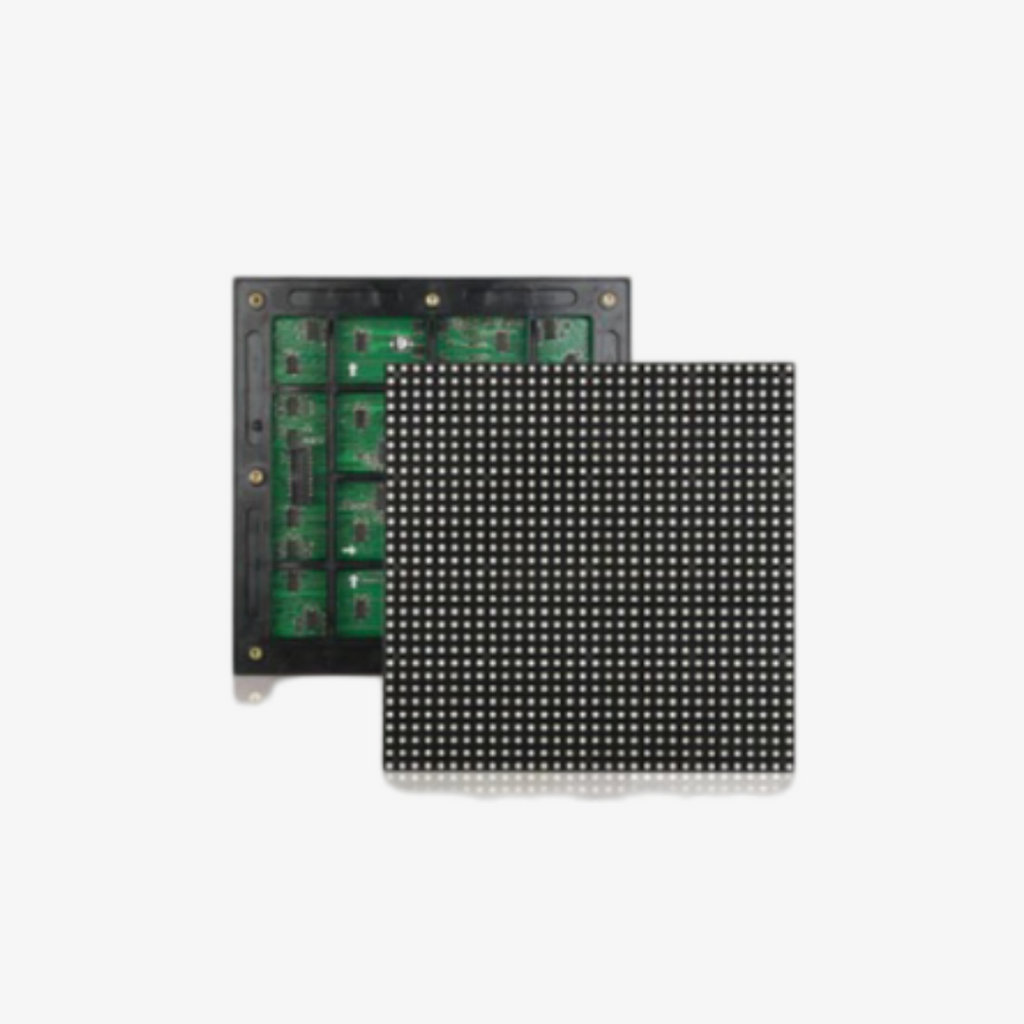

The Koshi Electronics P6 Outdoor LED Display Module is a waterproof full-colour RGB panel ideal for outdoor commercial displays, shop fronts and medium-distance viewing. With a 6 mm pixel pitch and a 32×32 dot grid, it delivers a sharp, clear full-colour image from 5–10 metres away — excellent value for larger outdoor signage.
✓ Fully compatible with every controller type, including:
- HD WiFi controllers — WF1, WF2, WF4
- DIY controllers — ESP8266 / ESP32 based
- HUIDU full-colour cards — D16 and above
This module uses the standard HUB75 interface, so it works with virtually any pixel or full-colour LED controller — giving you complete flexibility in how you drive your display.
What's In The Box
- 1 × P6 Outdoor LED Display Module
- Power cable — included free with each module
- FRC (flat ribbon cable) — included free with each module
Applications
- Outdoor shop signage & hoardings
- Commercial & advertising displays
- Building & facade screens
- Medium-distance video & text displays
Power Supply (SMPS) Recommendation
- Each module needs approximately 10 A of 5V supply.
- For best results, use a 5V 60A slim-body SMPS — one 60A unit comfortably powers up to 6 modules.
- For a small project, a 5V 40A slim SMPS is a good choice.
Project Videos
Outdoor Use — Waterproofing
The module is outdoor-grade and waterproof. For installations exposed to heavy rain, mount the modules inside a sealed waterproof cabinet to protect the electronics and ensure long service life.
Key Specifications
| Parameter | Value |
|---|---|
| Pixel Pitch | 6 mm |
| Matrix | 32×32 dots per module |
| Colour | Full Colour RGB |
| Type | Outdoor Waterproof |
| HUB Interface | HUB75 |
| Compatible Controllers | All types — WF1/WF2/WF4, DIY ESP8266/ESP32, HUIDU D16 and above |
| Recommended SMPS | ~10 A per module; 5V 60A slim powers up to 6 modules; 5V 40A slim for small projects |
| Included Cables | Power cable + FRC (free with each module) |
| Optimal Viewing Distance | 5–10 metres |
| Application | Outdoor commercial displays, shop fronts, hoardings |
P6 vs P4 vs P10 — Which Module to Choose?
| Module | Pixel Pitch | Best Viewing Distance |
|---|---|---|
| P4 Outdoor | 4 mm | 4–6 metres |
| P6 Outdoor | 6 mm | 5–10 metres |
| P10 RGB | 10 mm | 8–15 metres |
Closer viewing needs a smaller pixel pitch; for viewing from further away, a larger pixel pitch is acceptable at lower cost.
Frequently Asked Questions
Which controllers does this module work with?
All controller types. It is compatible with HD WiFi controllers (WF1, WF2, WF4), DIY ESP8266 / ESP32-based controllers, and HUIDU full-colour cards (D16 and above), thanks to its standard HUB75 interface.
Does the module include cables?
Yes — a power cable and an FRC (flat ribbon cable) are included free with each module.
Which power supply (SMPS) should I use?
Each module needs about 10 A at 5V. For best results use a 5V 60A slim-body SMPS — one 60A unit powers up to 6 modules. For a small project, a 5V 40A slim SMPS works well.
P6 or P4 Outdoor — which is better?
P4 is sharper for close viewing (4–6 m) but costs more. P6 is perfect for medium distance (5–10 m) and is more affordable. Choose based on how far away your display will be viewed.
Is it safe in the rain?
Yes — it is an outdoor waterproof module. For heavy rain exposure, mount it inside a sealed waterproof cabinet.
What is the size of one P6 module?
It is a 32×32 dot matrix; the standard module size is approximately 192×192 mm.
