| Specification | Details |
|---|---|
| Pixel Pitch | 2.5 mm |
| LED Matrix | 64×128 dots per module |
| Module Size | 6×12 inches (approx 160×320 mm) |
| Colour | Full Colour RGB |
| Interface | HUB75E |
| Compatible Controllers | HUIDU D16, C16L, A3L, A4L, A6L and higher |
| Recommended SMPS | ~10 A per module; 5V 60A slim powers up to 6 modules; 5V 40A slim for small setups |
| Included Cables | Power cable + FRC (free with each module) |
| Not Compatible | WF1, WF2, WF4, DIY ESP8266/ESP32 |
| Application | Indoor only |
| Optimal Viewing Distance | 1–3 metres |
| Bundle Options | 2 / 4 / 6 / 8 / 10 pieces |
| Vendor | Koshi Electronics |

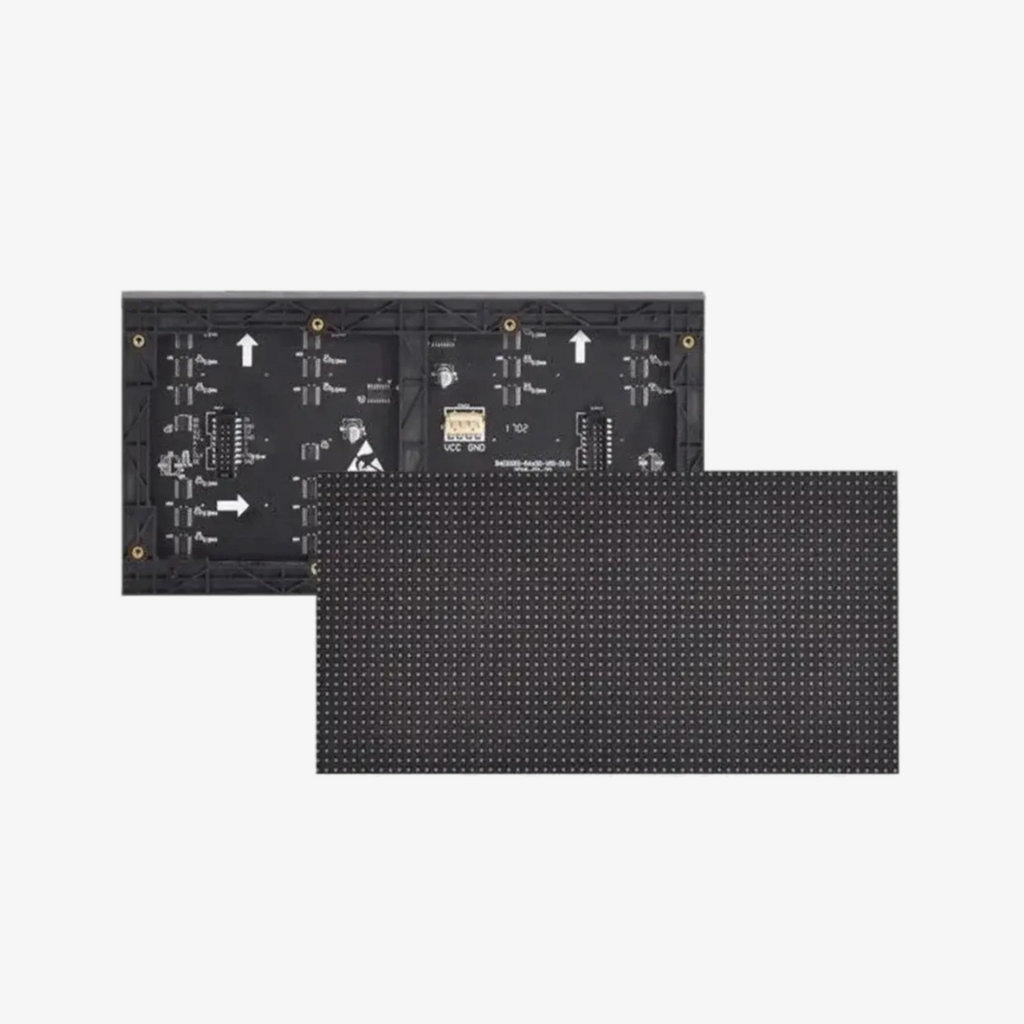

The Koshi Electronics P2.5 Indoor LED Display Module is one of the finest pixel-pitch indoor panels available — a 2.5 mm pitch delivers an ultra-sharp, cinema-quality full-colour image at close viewing distances. It is a professional choice for stage backdrops, conference rooms, broadcast studios, retail displays and premium indoor setups. Available in multi-piece bundles from 2 to 10 modules.
✓ Works with: HUIDU full-colour receiving/control cards — D16, C16L, A3L, A4L, A6L and higher versions.
✗ Does NOT work with: WF1, WF2, WF4, or DIY ESP8266 / ESP32-based controllers.
This is a full-colour HUB75E video module. Please make sure you are using a compatible HUIDU controller before purchasing.
What's In The Box
- Selected quantity of P2.5 Indoor LED Display Modules
- Power cable — included free with each module
- FRC (flat ribbon cable) — included free with each module
The controller and SMPS power supply are purchased separately.
Applications
- Stage backdrops & event screens
- Conference rooms & meeting displays
- Broadcast & studio backgrounds
- Retail & showroom displays
- Premium indoor signage
Bundle Options
Available in bundles of 2, 4, 6, 8 or 10 modules — select your quantity from the options above. Each module comes with a free power cable and FRC cable.
Recommended Controller & Power Supply
- Controller: HD-D16 Full Colour Control Card (HUIDU, HUB75E) — a recommended match for this module.
- Power supply: each module needs approximately 10 A at 5V. For best results use a 5V Slim Body SMPS — a 60A unit comfortably powers up to 6 modules, and a 40A unit suits smaller setups.
Module Specifications
| Parameter | Value |
|---|---|
| Pixel Pitch | 2.5 mm |
| LED Matrix | 64×128 dots per module |
| Module Size | 6×12 inches (approx 160×320 mm) |
| Colour | Full Colour RGB |
| Interface | HUB75E |
| Compatible Controllers | HUIDU D16, C16L, A3L, A4L, A6L and higher |
| Recommended SMPS | ~10 A per module; 5V 60A slim powers up to 6 modules; 5V 40A slim for small setups |
| Included Cables | Power cable + FRC (free with each module) |
| Application | Indoor only |
| Optimal Viewing Distance | 1–3 metres |
Frequently Asked Questions
Which controllers does this module work with?
It works with HUIDU full-colour controllers — D16, C16L, A3L, A4L, A6L and higher versions. It does not work with WF1, WF2, WF4, or DIY ESP8266 / ESP32-based controllers.
Which power supply (SMPS) should I use?
Each module needs about 10 A at 5V. For best results use a 5V 60A slim-body SMPS — one 60A unit powers up to 6 modules. For a small setup, a 5V 40A slim SMPS works well.
Does the module include cables?
Yes — a power cable and an FRC (flat ribbon cable) are included free with each module. The controller and SMPS are purchased separately.
Which is better, P2.5 or P3?
P2.5 is finer — a 2.5 mm pitch versus 3 mm. For very close viewing (1–2 m) the P2.5 gives a noticeably sharper image. It costs a little more but delivers premium quality.
How large a screen can I build?
Each module is 160×320 mm. Six modules make a display of roughly 480×640 mm (about 2×1.5 feet); add more modules for a larger screen.
Is it safe for outdoor use?
No — this is strictly an indoor module. For outdoor use, see our P4 Outdoor or P6 Outdoor modules.
