3-core PVC data wire for pixel LED connections — carries Data, +ve and ground between controller and LED strings. 90 metres per roll, in three gauges (7/0.9 for 5V short runs, 14/.132 for standard 12V, 14/.122×2-core heavy-duty for long/high-current runs). Compatible with WS2811/WS2812/UCS1903.
| Specification | Details |
|---|---|
| Type | 3-Core PVC Data Wire (pixel LED) |
| Cores | 3 — Data, +V, GND |
| Length per Roll | 90 metres |

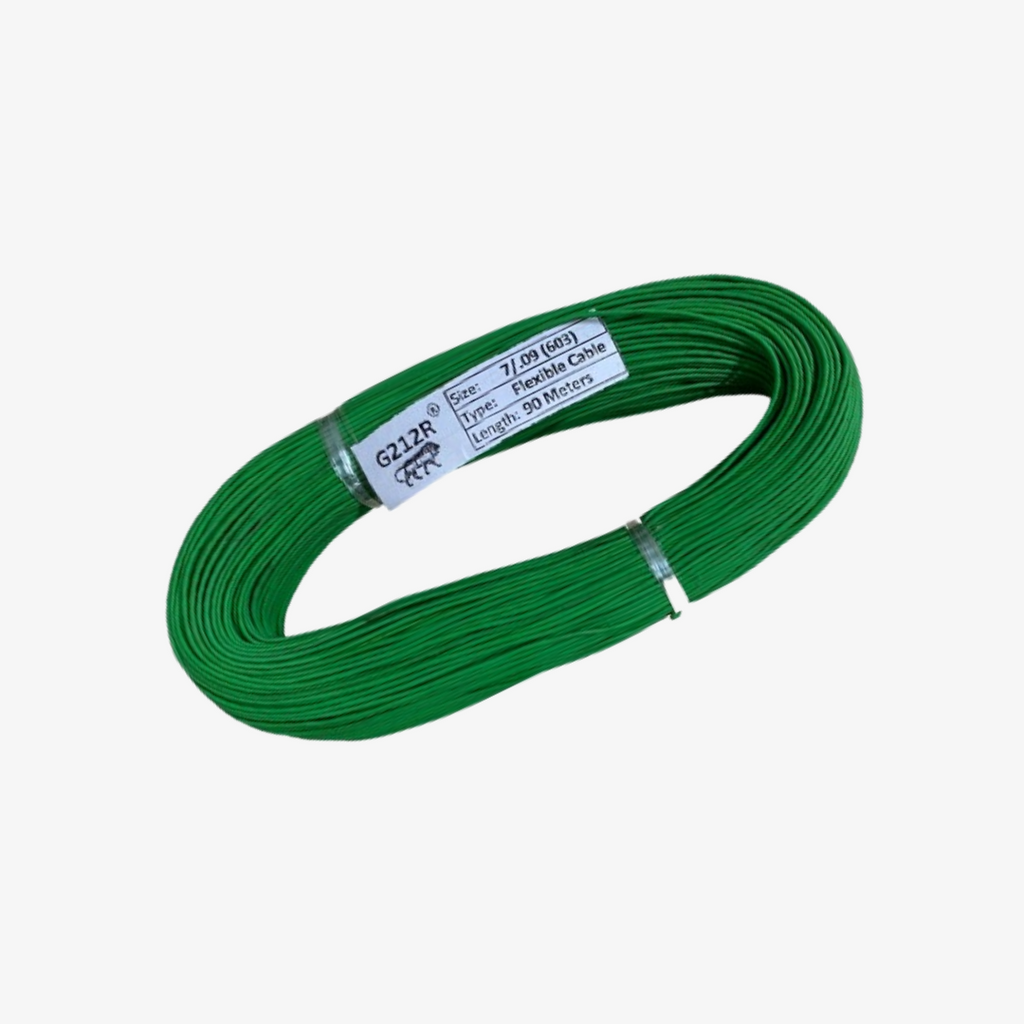

| Variant 7/0.9 | Lightweight — short data runs, low-current 5V |

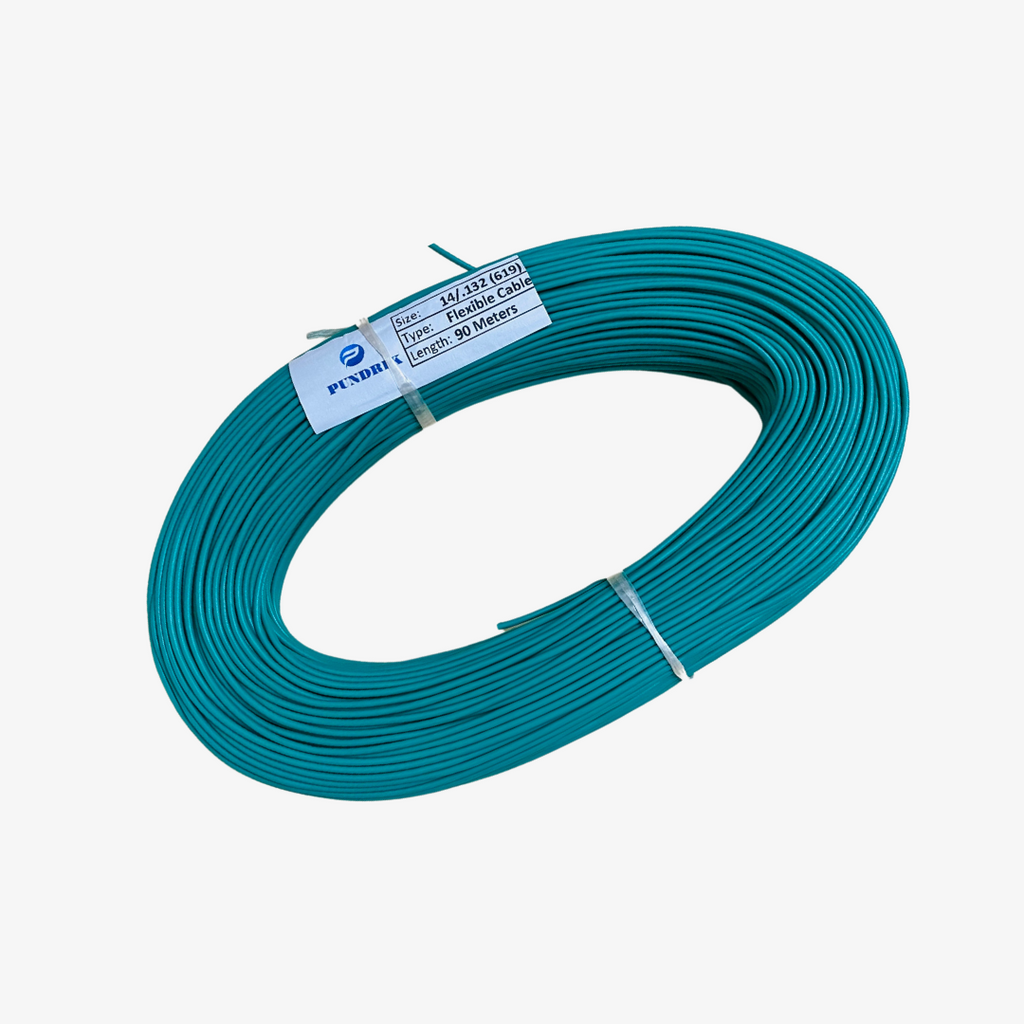

| Variant 14/.132 | Medium gauge — standard 12V installations |
| Variant 14/.122 × 2 Core | Heavy-duty — high-current / long-distance, minimises voltage drop |
| Compatible | WS2811, WS2812, UCS1903 & all standard pixel ICs |
| Outdoor | Protect with conduit or gel tube |
| Brand | Koshi Electronics |
3-core PVC data wire for pixel LED connections — carries the data, positive and ground signals between your pixel LED controller and LED strings or strips. Available in three thicknesses — choose based on the current load and length of your installation.
Specifications
| Specification | Detail |
|---|---|
| Cores | 3 — Data, +V, GND |
| Length per Roll | 90 metres |
| 7/0.9 Variant | Lightweight — short data runs, low-current 5V |
| 14/.132 Variant | Medium gauge — standard 12V installations |
| 14/.122 × 2 Core | Heavy-duty — high-current / long-distance |
| Compatible | WS2811, WS2812, UCS1903 & standard pixel ICs |
Key Features
- 3 cores — carries data, positive and ground in one cable
- 90 metres per roll — enough for large installations
- Three gauge options — match wire to current load and run length
- Low voltage drop — heavy variant for long-distance / high-current runs
- Wide compatibility — WS2811, WS2812, UCS1903 & all standard pixel ICs
Best For
- Wiring pixel LED controllers to strings & strips
- Thoran, building outline & matrix installations
- Long-distance / high-current runs (heavy variant)
Tip: Load aur run length ke hisaab se gauge chunein. Outdoor installations mein wire ko conduit ya gel tube se protect karein.
Complete Your Setup
- Connectors — Cables & Connectors
- Pixel LED Controllers — Pixel LED Controllers
- Pixel LED Strings & Modules — Pixel LED Module
Koshi Electronics — India's #1 Pixel LED & lighting solutions. Contact us for bulk enquiries.
Ye wire kis kaam aati hai?
Pixel LED controller aur LED strings/strips ke beech Data, +ve aur GND signals carry karne ke liye 3-core connection cable.
Kaunsa variant lein?
7/0.9 — short data runs aur low-current 5V ke liye. 14/.132 — standard 12V installations. 14/.122 × 2 Core — high-current ya long-distance runs ke liye (voltage drop kam karta hai).
Ek roll mein kitni length aati hai?
90 metres per roll.
Kaunsi LED ke saath compatible hai?
WS2811, WS2812, UCS1903 aur saari standard pixel LED ICs ke saath.
Outdoor mein use kar sakte hain?
Haan, lekin wire ko conduit ya gel tube se protect karein taaki moisture aur sunlight se kharab na ho.
