▶️ Watch: 3 Pin Male & Female Connector for Pixel LED Wiring Demo

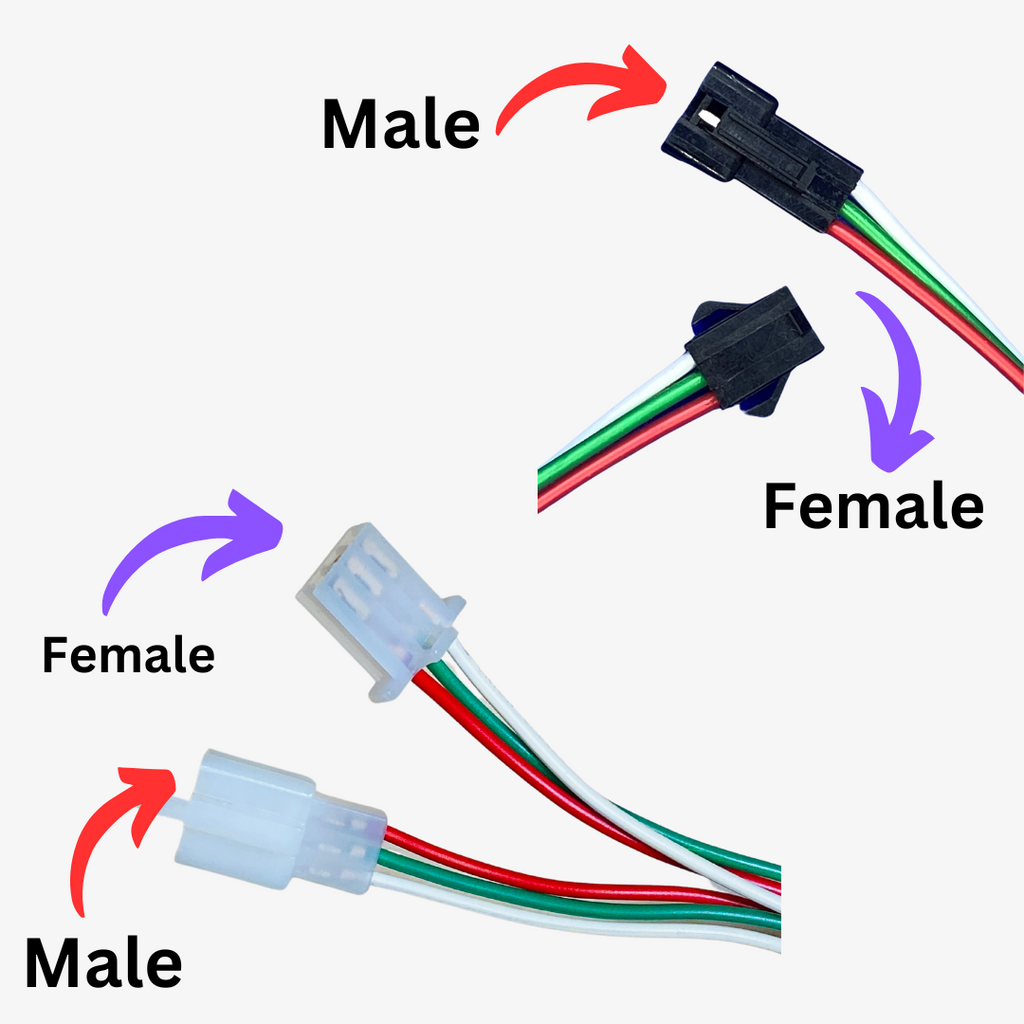

3-pin male & female connectors for pixel LED wiring — connect Data, +ve and ground between strings, controllers and power supplies. Heavy-gauge tin-coated copper for reliable soldering. Normal & Heavy variants, compatible with WS2811/WS2812/UCS1903. Sold per piece.
| Specification | Details |
|---|---|
| Type | 3-Pin Male & Female Connector (pixel LED wiring) |
| Pins | 3 — Data, +V, GND |
| Wire | Heavy-gauge tin-coated copper |
| Variants | Normal (standard gauge) / Heavy (thicker, high-current & outdoor) |
| Compatible | WS2811, WS2812, UCS1903 strings & modules |
| Voltage | 5V / 12V |
| Sold As | Individual pieces — Male Normal, Female Normal, Male Heavy, Female Heavy |
| Brand | Koshi Electronics |
3-pin male & female connectors for pixel LED wiring — used to connect Data, Positive and Ground wires between pixel LED strings, controllers and power supplies. An essential consumable for clean, professional pixel LED builds.
Specifications
| Specification | Detail |
|---|---|
| Pins | 3 — Data, +V, GND |
| Wire | Heavy-gauge tin-coated copper |
| Variants | Normal (standard gauge) / Heavy (thicker) |
| Compatible | WS2811, WS2812, UCS1903 strings & modules |
| Voltage | 5V / 12V |
| Sold As | Per piece — Male/Female, Normal/Heavy |
Key Features
- Heavy-gauge wire — more current capacity, less heat
- Tin-coated copper — easy, strong soldering; resists oxidation for cleaner joints
- Normal & Heavy variants — standard setups or high-current / outdoor runs
- Wide compatibility — WS2811, WS2812, UCS1903 strings & modules
- Clean, secure connections — keep your pixel build professional
Best For
- Joining pixel LED strings, modules & controllers
- Detachable, re-usable connections for Thorans & displays
- Outdoor long-distance runs (Heavy variant)
Tip: Clean connections ke liye male aur female dono ka stock rakhein. High-current ya outdoor runs ke liye Heavy variant chunein.
Complete Your Setup
- More Cables & Connectors — Cables & Connectors
- Pixel LED Strings & Modules — Pixel LED Module
- Pixel LED Controllers — Pixel LED Controllers
Koshi Electronics — India's #1 Pixel LED & lighting solutions. Contact us for bulk enquiries.
Ye connector kis kaam aata hai?
Pixel LED strings, controller aur power supply ke beech Data, +ve aur GND wires ko clean aur secure tarike se connect karne ke liye.
Normal aur Heavy variant mein kya farak hai?
Normal standard gauge hai — zyadatar pixel setups ke liye theek. Heavy thicker gauge hai — high-current runs ya outdoor long-distance installations ke liye recommended.
Kaunsi LED ke saath compatible hai?
WS2811, WS2812 aur UCS1903 pixel LED strings aur modules ke saath.
Tin-coated copper ka kya fayda?
Tin coating se soldering aasan aur strong hoti hai, oxidation se bachav hota hai — cleaner aur reliable joint.
Kaise sold hota hai?
Per piece — Male Normal, Female Normal, Male Heavy ya Female Heavy choose karein. Clean connections ke liye male aur female dono ka stock rakhein.
