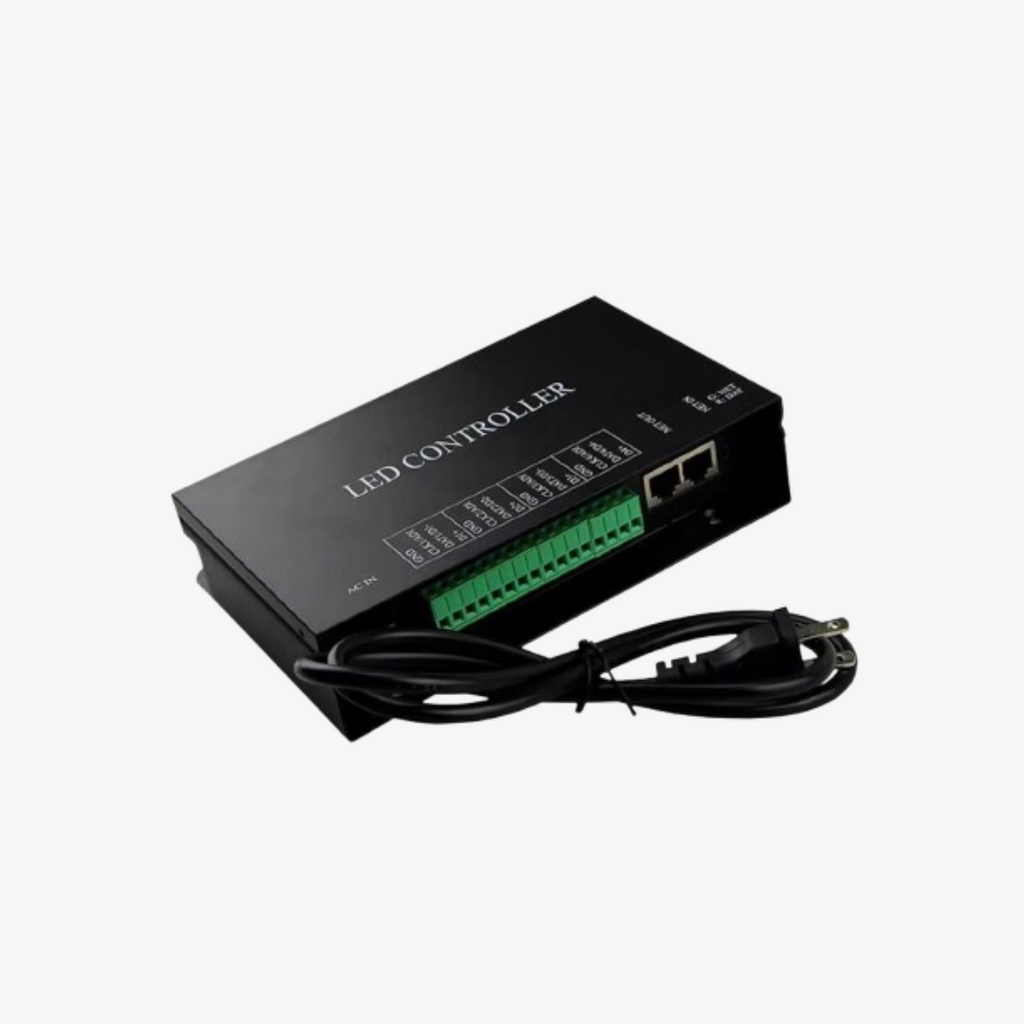

H802RA professional ArtNet pixel/DMX LED controller — 4 ports, 4096 pixels total, ArtNet over Ethernet. Works online with MADRIX/LED Studio or offline via master controller. Supports DMX512, WS2811/2812, UCS, APA102 & more. For large video walls, building displays and stage lighting.
| Specification | Details |
|---|---|
| Protocol | ArtNet (standard Ethernet) |
| Output Ports | 4 |
| Max Pixels | 4096 total (1024 per port) |
| Software | MADRIX / LED Studio (online), master controller (offline) |
| IC Support | DMX512, WS2811, WS2812, UCS, APA102, TM18xx, LPD & more |
| Mode | Repeater / amplifier configurable in software |
| Brand | Koshi Electronics |
The H802RA is a professional ArtNet LED controller for large-scale pixel and DMX installations. It uses standard Ethernet with the ArtNet protocol, drives four output ports, and works online with software like MADRIX or LED Studio, or offline from a master controller.
Key Features
- 4 output ports — up to 1024 pixels per port, 4096 pixels total
- ArtNet over Ethernet — connect directly to a PC network card, switch or media converter
- MADRIX & LED Studio compatible — full online control; offline playback via master controllers
- Automatic addressing — supports a wide range of pixel and DMX driver ICs
- Repeater / amplifier mode — configurable in software
Specifications
| Specification | Detail |
|---|---|
| Protocol | ArtNet (standard Ethernet) |
| Output Ports | 4 |
| Max Pixels | 4096 total (1024 per port) |
| Software | MADRIX / LED Studio (online), master controller (offline) |
| IC Support | DMX512, WS2811, WS2812, UCS, APA102, TM18xx, LPD and more |
Best For
- Large pixel video walls & building displays
- Concert, stage & architectural lighting with MADRIX
- Professional installations needing ArtNet control
Ye kis software ke saath chalta hai?
MADRIX aur LED Studio ke saath online control; offline playback master controller se.
Kitne pixel tak chalega?
4 ports, total 4096 pixels (1024 per port).
Connection kaise hota hai?
Standard Ethernet (ArtNet protocol) se — PC network card, switch ya media converter se direct connect.
Kaunsi IC support karta hai?
DMX512, WS2811, WS2812, UCS, APA102, TM18xx, LPD aur kai aur.
Kahan use hota hai?
Large pixel video walls, building displays, concert/stage aur architectural lighting (MADRIX ke saath).
